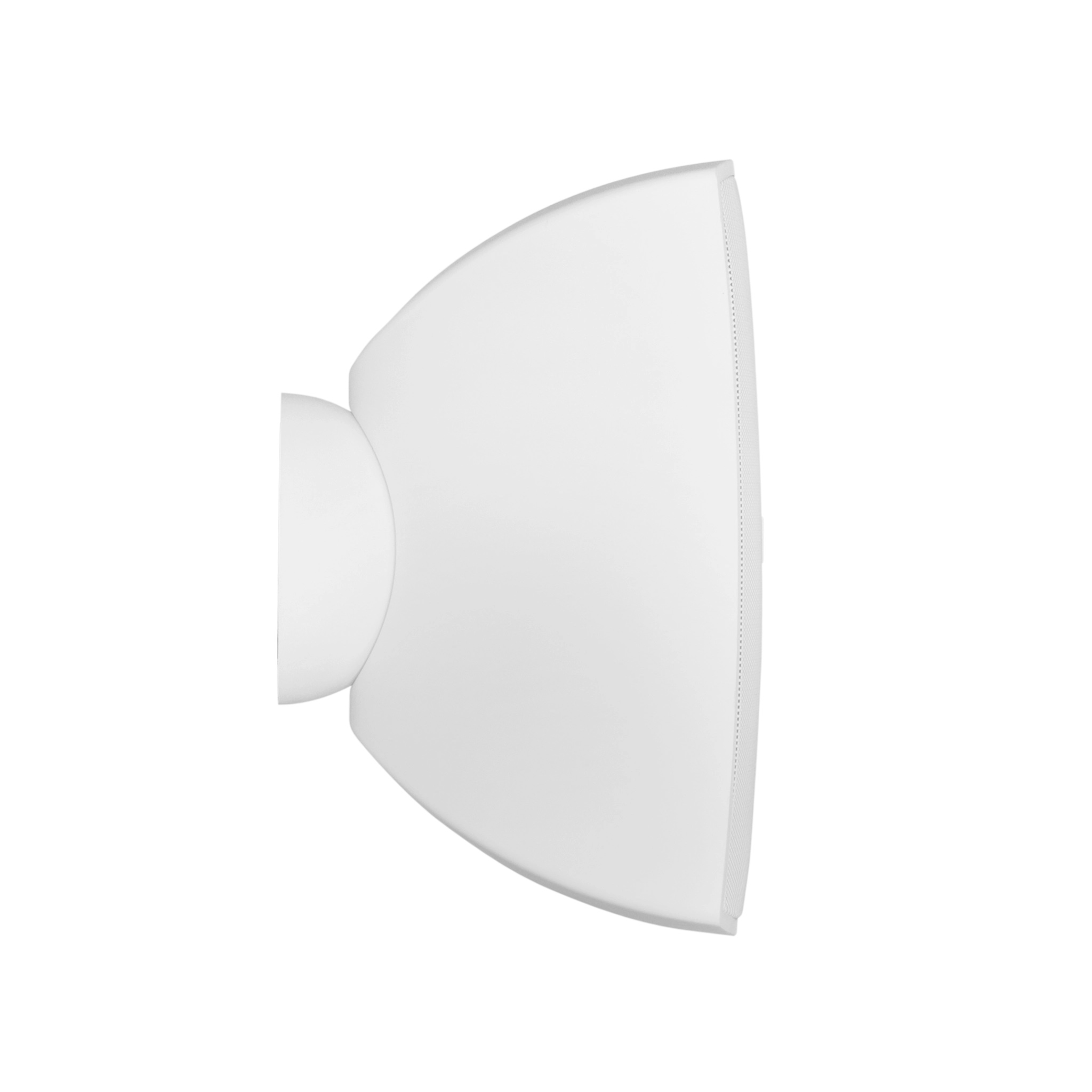

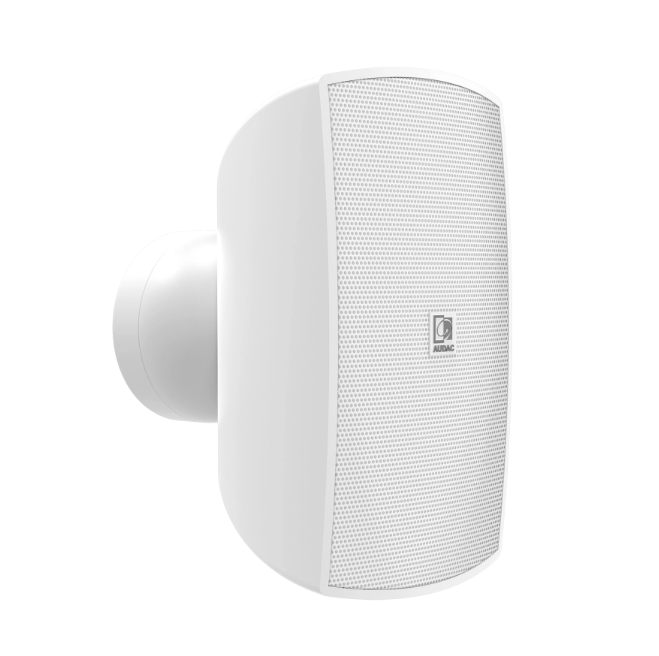

ATEO 4 DM White - Surface-mounted speaker for indoor & outdoor use with CleverMount+™ Black version - 16Ω. It features a 1" dome tweeter and a 4" driver for mid and low frequencies, ensuring faithful and high-fidelity reproduction of music and speech, while maintaining an ultra-flat frequency response. It also has a weather-resistant ABS enclosure, with stunning design and an elegant appearance, equipped with high-quality components. What makes this range of speakers so exceptional is the specially designed mounting system that utilises weather-resistant CleverMount+™ technology, allowing the speaker enclosure to flow seamlessly with the mounting system, providing great ease for installing the speaker as a single eye-catching entity. This designer speaker is the ideal solution for fixed installation applications indoors and outdoors.
Unmatched sonic brilliance
Ultra-flat frequency response
Weather-resistant - IP66 rating
Tested: 720 hours of salt spray
Marine-grade construction quality and UV resistance
Hydrophobic mesh behind the aluminium grille
Save up to 50% installation time thanks to CleverMount™+.

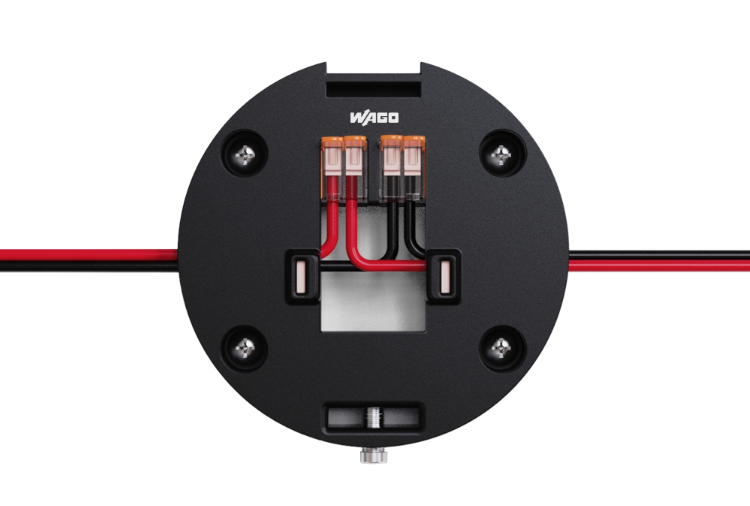

WAGO connections without screws for quick and secure connection with linkthrough up to 4 mm²
No visible cables or supports from the back
Extremely firm front mounting, allowing for quick and precise tilting
Optional brackets for tilt angle or mounting on lighting truss
Specifications:
Speaker type: Full range
Peak power 140 W
Programmable power 70 W
RMS/AES power handling 35 W
Impedance of 16 Ω (ATEO4DM)
Tilt angle Left 30° & Right 30°./ Bottom 30°./ Top 5°
Sensitivity (1W/1m) 86 dB
Sound pressure (max. W/1m) @ 8 Ω 101 dB & @ 100 V 100 dB
Frequency response (± 3 dB) 100 Hz - 20 kHz
Dynamic range (-10 dB) 65 Hz - 20 kHz
Horizontal dispersion 130° & Vertical 130
Connectors 2 x Euro-Block connections WAGO
Drivers: 1" tweeter & 4" woofer
Line transformer Connections
1 208 Ω - 100 V / Unused - 70 V / 24 W
2 417 Ω - 100 V / 24 W - 70 V / 12 W
3 833 Ω - 100 V / 12 W - 70 V / 6 W
4 1667 Ω - 100 V / 6 W - 70 V / 3 W
Protection index IP66
Dimensions 136 x 244 x 153 mm
Weight 2.050 kg
Operating temperature -20 °C ~ 60 °C
Included accessories: Allen key
Weather-resistant CleverMount+™
ABS construction
Front finish: Aluminium grille with hydrophobic mesh
