Audac ALTI4M/W

Wall/Ceiling Speaker

2-way architecture with a 4" driver and coaxial 1" tweeter.
iP65 installmentsd construction for outdoor use.
handles continuous power of 30 W (RMS) and maximum power of 60 W.
wide opening angle and unique innovative design.
includes a 5-pin connection cable and versatile mounting options.

287¹⁴ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

1490 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Audac ALTI4M/W Add to cart: 287¹⁴ €

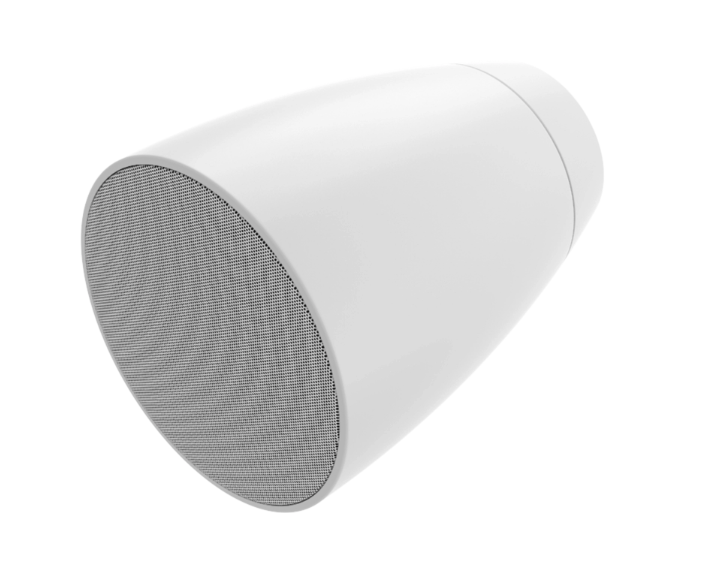

Audac ALTI4M White is a wall/ceiling speaker that offers a cast mounting support in matrices. Connections are made via weather-resistant AWX5™ connectors, this construction has an IP65 rating.

ALTI4M features a 2-way architecture with a 4" driver & a coaxially mounted 1" tweeter and is equipped with a phase plug for excellent off-axis performance. The 2-way architecture combined with a high-quality polypropylene enclosure and acoustic engineering craftsmanship guarantees premium performance for demanding applications. It handles continuous power of 30 W (RMS) and a maximum power handling of 60 W.

Unique innovative design
Wide opening angle
Waterproof AWX5™ connector
Outdoor rated construction
Countless mounting possibilities
Multi-tapping 70V / 100V line transformer

SPECIFICATIONS:

Program power handling 60 W
RMS/AES power 30 W
Coaxial 2-way speaker type
Drivers 4"
Impedance 16 Ω
Connectors AWX-5 water-resistant connector
Sensitivity (1W/1m) 80 dB
Protection index IP65
Line transformer Connections 1 208 Ω - 100 V / Not used - 70 V / 24 W
2 417 Ω - 100 V / 24 W - 70 V / 12 W
3 833 Ω - 100 V / 12 W - 70 V / 6 W
Dispersion Conical 165° (average from 500 Hz to 5 kHz @ -6 dB)
Acoustic pressure SPL(max. W/1m) @ 16 Ω 95.1 dB
Frequency range (-10 dB) 65 Hz - 20 kHz
Frequency response (± 3 dB) 85 Hz - 20 kHz

FEATURES:

Dimensions 205 x 170 x 258 mm (L x H x D)
Connection cable length 0.7 m
Construction Polypropylene
Front finish Aluminium grille

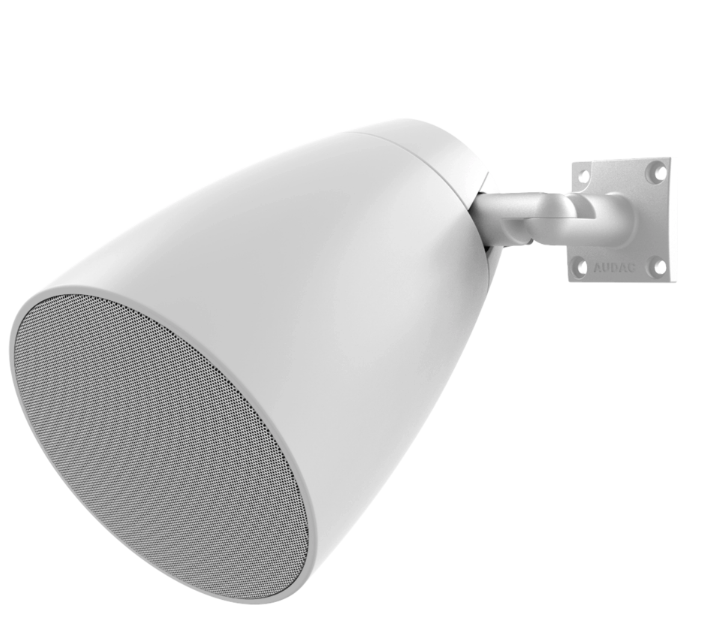

Rotating mounting support with 2 ways
Weight 2.31 kg
Included accessories 5-pin connection cable (70 cm)
Rotating mounting support with 2 directions
