Monacor PA-324

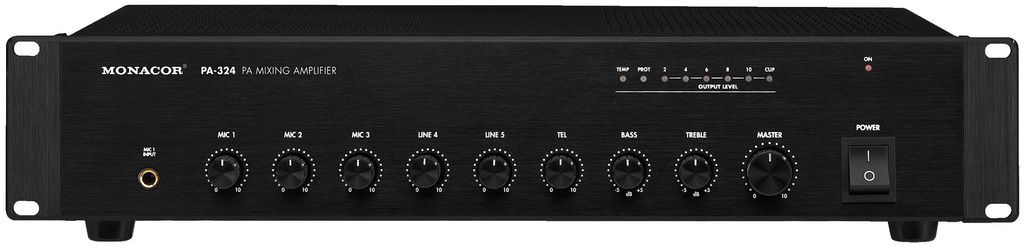

Monacor PA-324 - mono PA mixing amplifier. It offers a power of 240 W, 3 microphone inputs of which one is a balanced input, Microphone 1 has a priority circuit and adjustable talkover, 2 auxiliary inputs, one input for telephone systems with audio output, speaker outputs with screw connectors, a line output, input and output level control, 2-band tone control for output, selectable 48 V phantom power for channel 1. Metal housing with the possibility of mounting in a 19" rack system with included mounts.

Technical specifications:

• Channels: 6
• Power: 240 W
• Power rating with 4 Ω bridged operation -
• Power rating with 8 Ω bridged operation -
• Maximum power (PMAX): 340 W
• Output impedance:
• Inputs:
  • 5 mV/600 Ω (mic),
  • 350 mV/10 kΩ (aux),
  • 1 V/10 kΩ (telephone)
• Frequency range: 50-16,000 Hz
• Low frequency equalization: ±10 dB/100 Hz
• High frequency equalization: ±10 dB/10 kHz
• Signal-to-noise ratio:
  • 66 dB (mic)
  • 80 dB (aux)
• THD: < 0.5%
• Power supply: ~ 230 V/50 Hz/740 VA
• Power consumption: 740 VA
• Optimal operating temperature: 0-40 °C

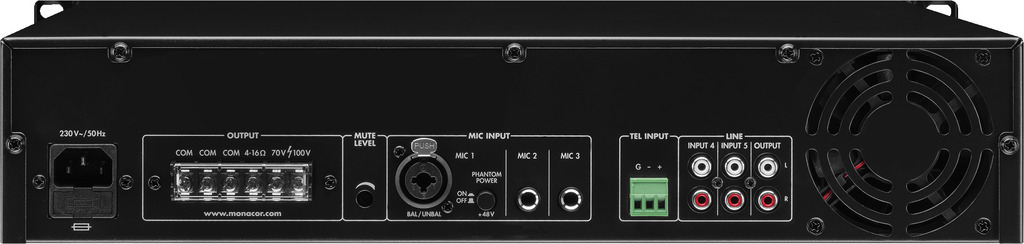

• Connectors:
  • 1 x 6.3 mm/XLR (combo),
  • 1 x 6.3 mm jack (mic 1),
  • 2 x 6.3 mm jack (mic 2-3),
  • 2 x RCA L/R (aux 1-2),
  • Screw terminals (telephone)
  • 1 x RCA L/R (line out)
• Dimensions (W x H x D):: 430 x 88 x 380 mm
• Space occupied in rack system: RS 2
• Weight: 16.6 kg
