CKS PAZ-5006

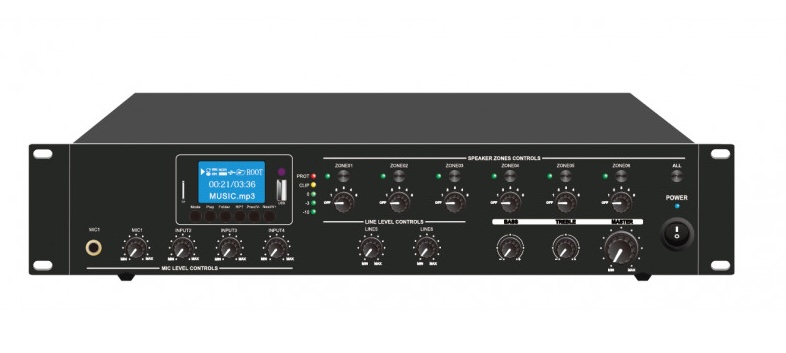

CKS PAZ-5006 - Professional amplifier for multi-zone sound systems, equipped with advanced features such as MP3 player, FM tuner and Bluetooth connectivity. Ideal for commercial spaces, institutional use or other professional applications requiring control over multiple zones.

This PA mixer amplifier is specially designed for small to medium-sized commercial audio applications, providing complete control over 6 independent zones. Each zone benefits from individual volume adjustment, allowing for flexible and customised sound distribution.

The device integrates several essential functionalities into a compact 2U rackable unit (19”), acting as:

• power amplifier
• preamplifier
• media player
• zone controller

Main features:

• Total power: 500W at 100V / 70V and 4–16 ohms
• 6-zone control: each with separate output and individual volume
• Integrated media player:
  • MP3 via USB & SD
  • FM tuner
  • Bluetooth
  • Control via IR remote

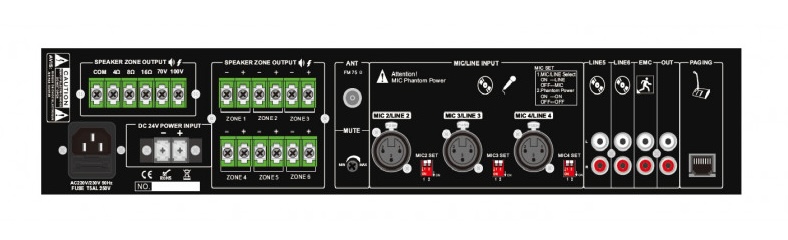

• Audio inputs:
  • 3 x Microphone (including MIC1 6.3 mm jack)
  • 2 x Aux (Line)
  • Balanced MIC2-3-4 (XLR) with MIC/Line switch and phantom power +48V
• VOX function on MIC1 with automatic priority (except for EMC input)
• Multiple protections: against overload, short circuit and high temperatures
• Mounting: standard 19” rack, height 2U

Technical specifications:

• Frequency response: 80 – 16,000 Hz
• Total harmonic distortion (THD): < 0.1%
• Signal-to-noise ratio (S/N): > 70 dB
• Power supply: AC 230V (50–60Hz) / DC 24V
• Power consumption: 650W
• Dimensions: 484 × 405 × 88 mm
• Weight: 10.4 kg

Recommended applications:

• Commercial buildings
• Hotels
• Schools and universities
• Shopping centres
• Conference rooms
• Large offices with zone distribution
