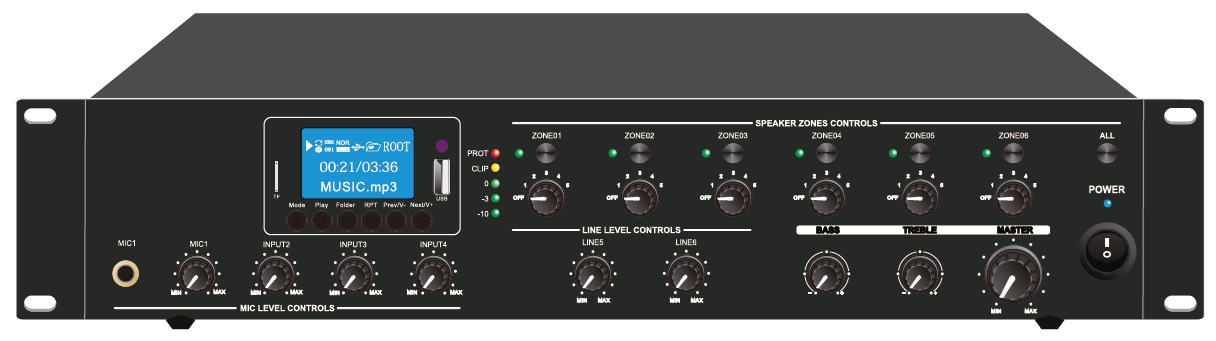

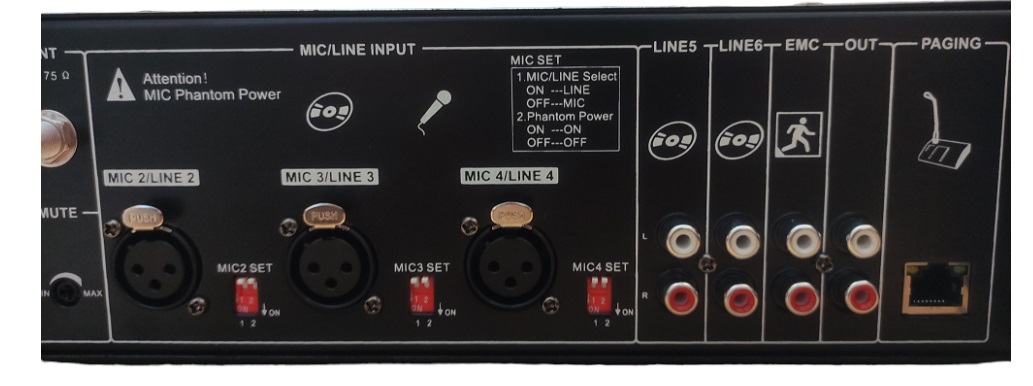

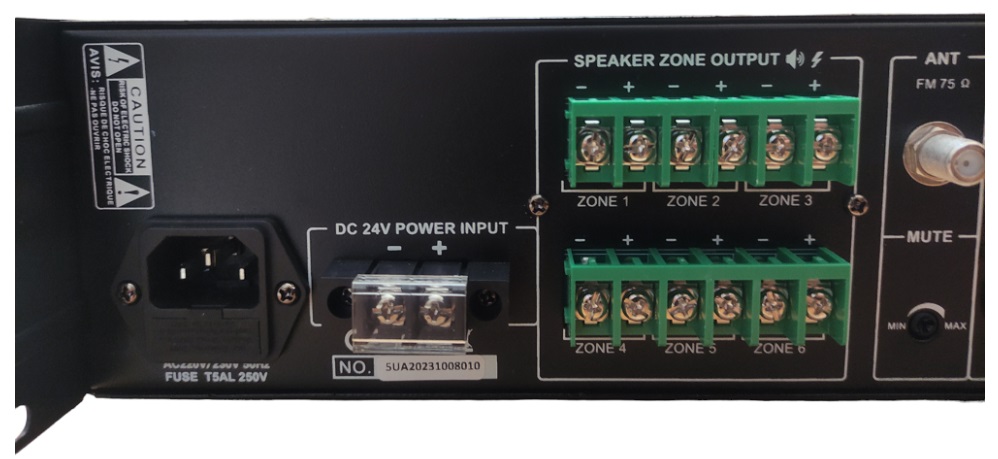

CKS PAZ-2406 - The PA mixer amplifier is designed for small/medium commercial audio solutions with 6 zones, each zone can be set to a different output volume. The 19” rack mixer amplifier with built-in audio source player integrates a zone paging controller, preamplifier, power amplifier, and media player into a single 2U device. Its rated power is 240W, and it features 3 microphone inputs and 2 auxiliary inputs. Supports 100 V/70 V speakers and 4-16 ohms. Features: 6-zone amplifier for public address (PA). 19" amplifier for rack mounting with a 2U height. Rated power 240W. 6-zone 100V speaker outputs. Single zone speaker outputs 4-16Ohm-70V-100V. 6-zone speaker outputs with independent volume control. Built-in MP3 player with USB and SD, FM tuner, Bluetooth. Includes an IR remote control for switching sources and controlling volume. 3 microphone inputs, Mic1 (6.3 mm) and Mic/Line 2-3-4 (XLR). Balanced Mic2-3-4 input with mic/line switch and 48V phantom power. Mic1 VOX function with highest input priority, except for EMC input. Protection against overload, short circuit, and high temperature.
- 6-zone PA mixer amplifier with Mp3 and tuner
- Rated power (RMS) 240W
- 100V audio output
- Audio input Mic1-4: 2.5mV, Line1-2: 250mV; EMC: 250mV
- MP3 media player via USB and SD, FM tuner, Bluetooth
- 6 zones
- Frequency 80 - 16,000 Hz
- THD <0.1%
- S/N ratio >70dB
- Power supply AC230V, 50-60Hz; DC24V
- Power consumption, operation 400W
- Dimensions 418(L)×318(D)×88(H)mm
- Weight 12 kg
