Omnitronic UHF-604 4-channel Wireless Mic System 823-832/863-865 MHz

True Diversity Wireless System

multifrequency wireless receiver with high-quality true diversity reception
ideal for large multi-channel systems
up to 24 transmitters in 2 bands can be operated in parallel without interference
operating range up to 60m with line-of-sight
uHF 823 - 832 MHz License-free and approved in large parts of Europe

342²⁰ €

Currently unavailable. Request details

Central warehouse: 0 In stores: 0

Add to cart

also deliverable via

1745 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Omnitronic UHF-604 4-channel Wireless Mic System 823-832/863-865 MHz Add to cart: 342²⁰ €

True diversity wireless system with auto scan, 7-band EQ and TFT color displays

Multifrequency wireless receiver with high-quality true diversity reception
Ideal for large multi-channel systems
Up to 24 transmitters in 2 bands can be operated in parallel without interference
Operating range up to 60m with line-of-sight
UHF 823 - 832 MHz License-free and approved in large parts of Europe
UHF 863 - 865 MHz License-free and approved in Europe

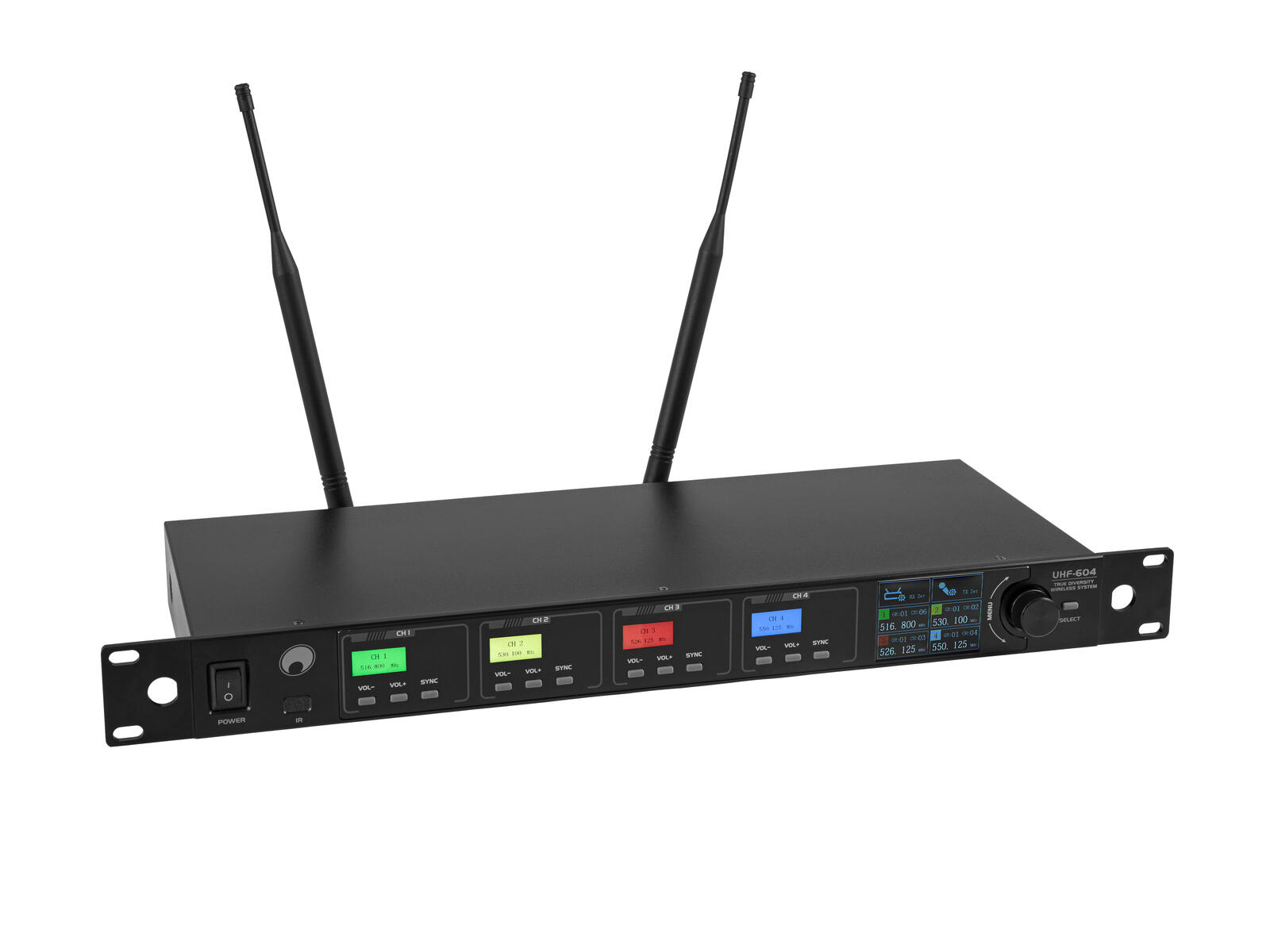

receiver

Automatic frequency setup
Ultra-low latency
ID transmitter verification prevents incorrect use and interference from external radio transmitters
Different user colors selectable for easy differentiation
Multicolor TFT display
7-band equalizer for sound tuning
Lock function for prevents undesired changes to settings
Multifunctional jogdial for menu settings
(19") 48.3 cm rack installation 1 U

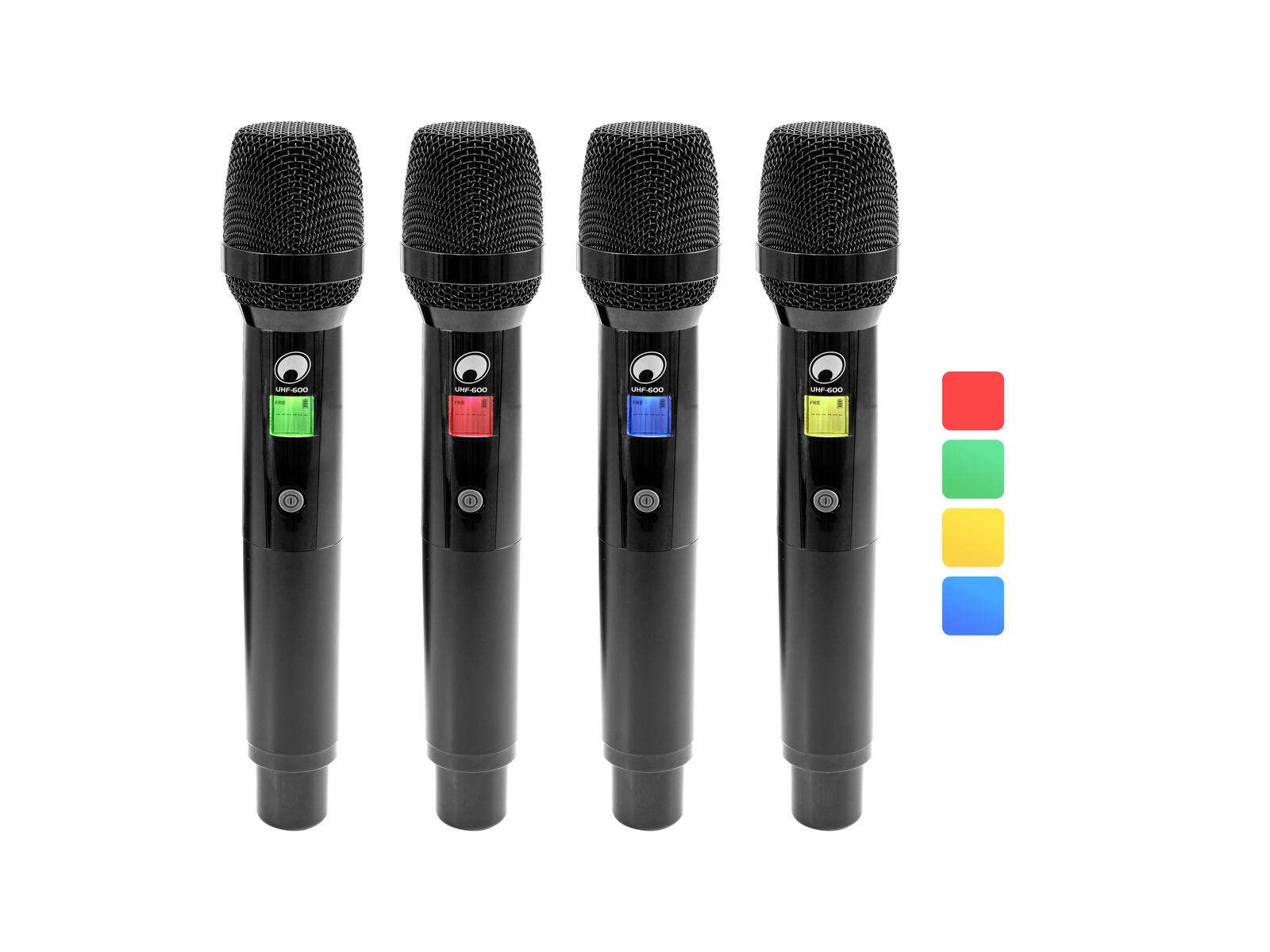

microphone

Polar pattern: Cardioid
Multicolor LCD display
Charge status indicator

Package contents

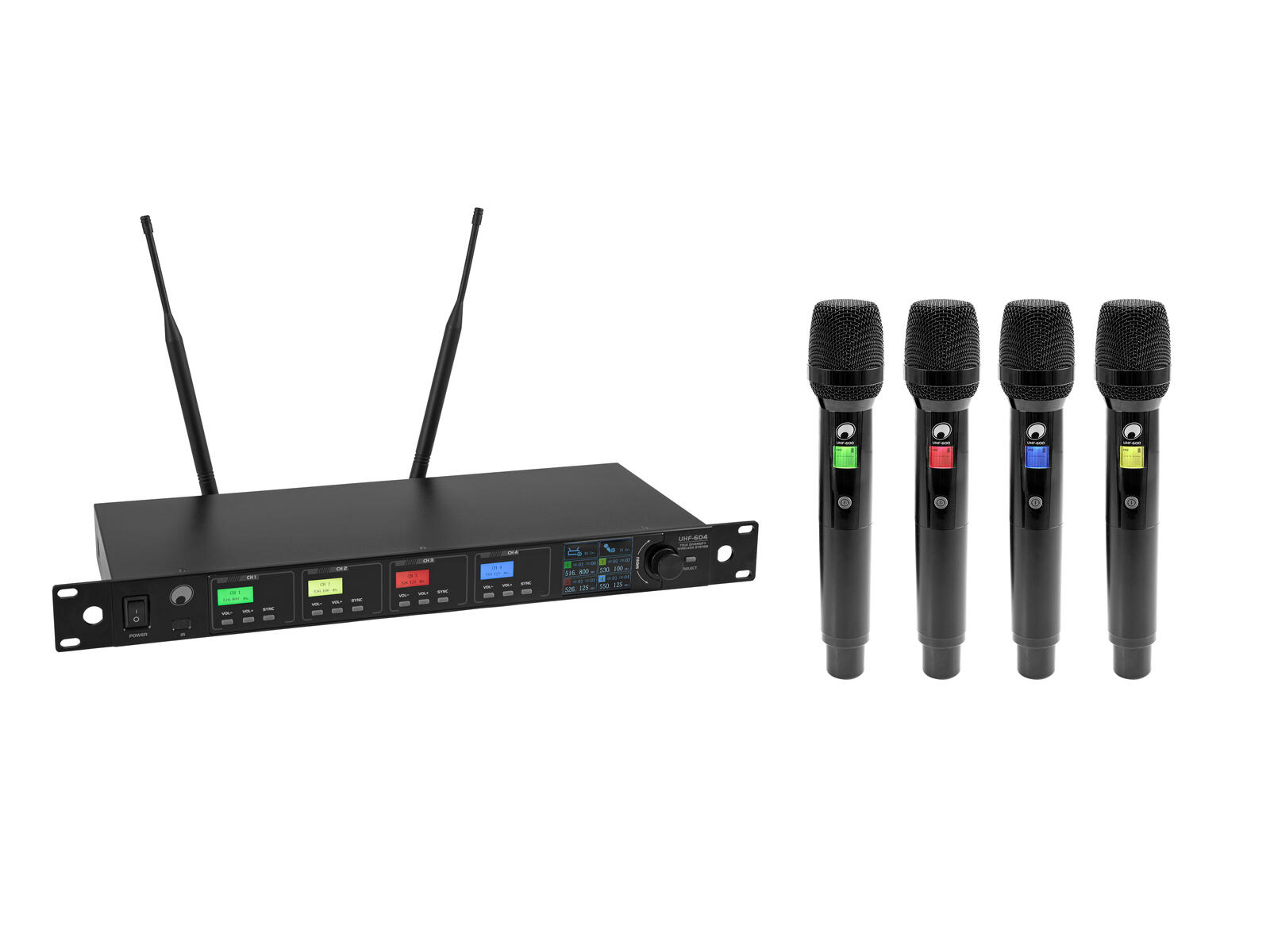

1 x receiver, 2 x antenna, 1 x external mains adapter, 1 x jack cable, 4 x microphone, 4 x holder

Type:	Wireless set
Range:	Range up to 60m with line-of-sight
Frequency band:	UHF 823 - 832 MHz; UHF 863 - 865 MHz
Switching bandwidth:	13 MHz
Parallel mode:	Max. 24 transmitter in 2 bands
Frequency selection:	Frequencies automatically scannable
Weight:	3,90 kg
Receiver
Power supply:	100-240 V AC, 50/60 Hz 12V DC 1000 mA
Power consumption:	6 W
Protection class:	Protection class III
Power connection:	Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter included
Number of channels:	4
Frequency range:	50 - 16000 Hz
S/N ratio:	>80 dB
THD:	<0,5 % at 1 kHz
Diversity:	True diversity
Latency:	< 3 ms
Modulation:	FM
Housing color:	Black
Display type:	5 x multicolor TFT display
Display:	Frequency , goup , channel , AF audio level
Control elements:	Level control per channel, power switch, encoder, menu

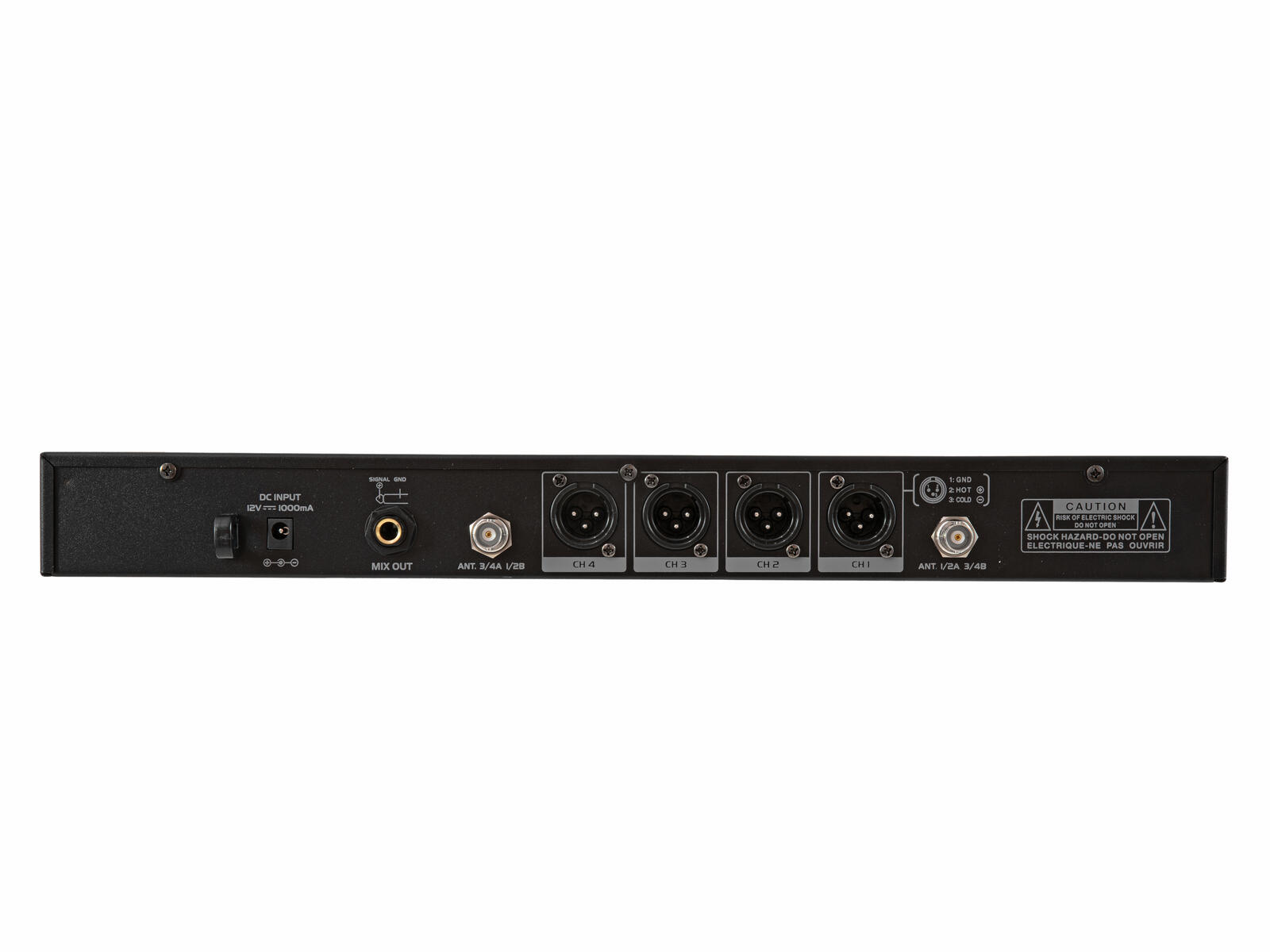

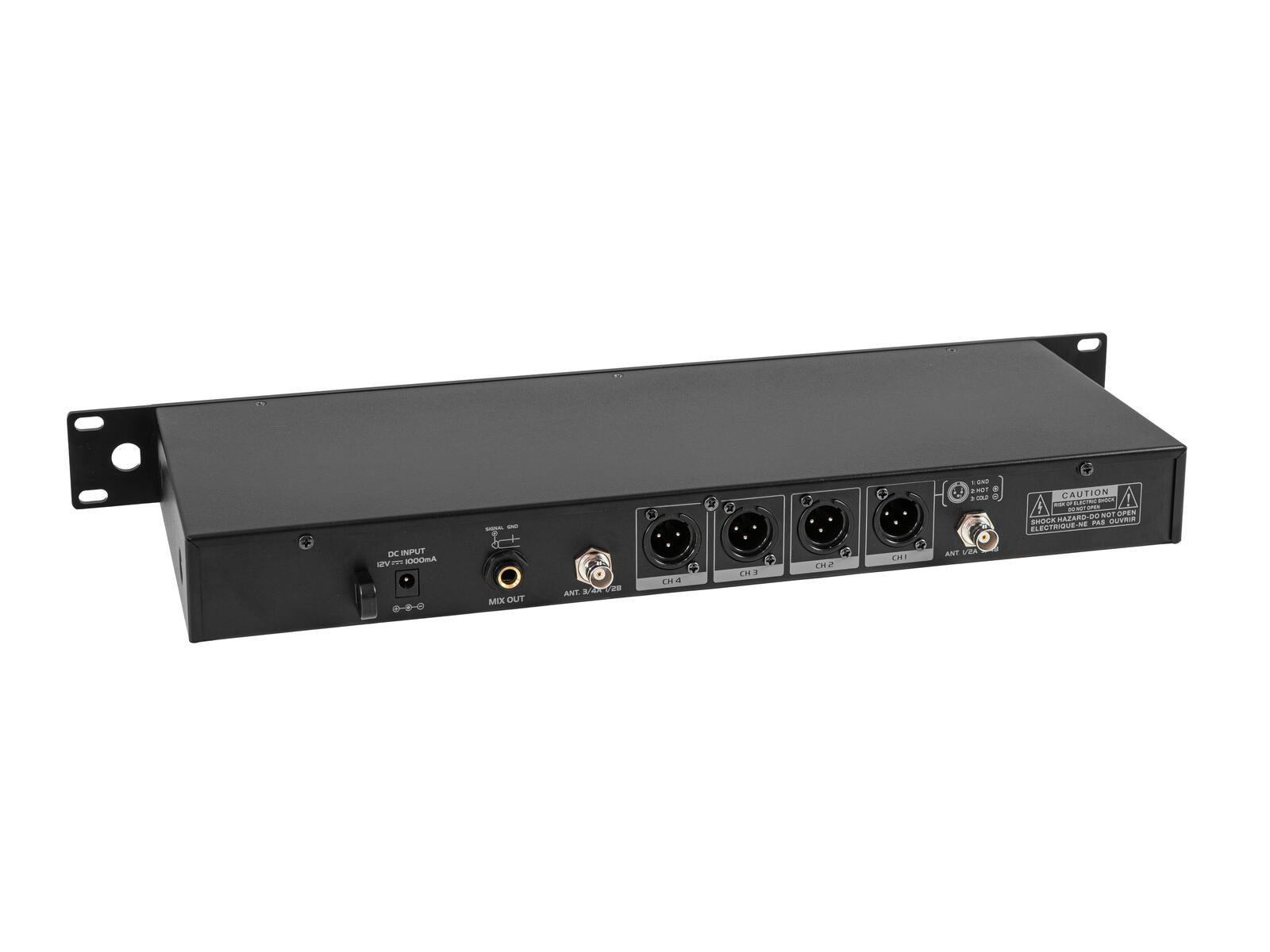

Connections:	Input: antenna via 2 x BNC (F) Output: microphone via 4 x 3-pin XLR (M) mounting version Output: microphone via 1 x 6.3 mm plug (unbal.)
Equalizer:	Graphic equalizer 7-band
Material:	Metal
Housing design:	(19") 48.3 cm rack installation 1 U
Mounting depth:	21 cm
Dimensions:	Width: 48,5 cm Depth: 21 cm Height: 4,4 cm
Weight:	1,5 kg
Microphone
Power supply:	3V DC 118 mA
Capsule type:	Dynamic Size: Ø 2,54 mm
Polar pattern:	Cardioid
Battery:	2 x Mignon (AA) (not included)
RF power output:	10 mW (HI); 5 mW (LO)
Housing color:	Black
Display type:	Multicolor LCD display
Display:	Frequency , charge status indicator , Mute , RF signal level
Switch:	On/off/mute switch
Material:	Metal
Dimensions:	Length: 25,9 cm Diameter: Ø 4,95 cm
Weight:	0,351 kg

Product code: 13063604

Unit of sale: piece

Specifications:

Number of transmission/reception channels:	4
System type:	digital
Receiver type:	Stationary
Communication frequency, global classification:	800-900 MHz
Capsule type:	dynamic
Polar pattern:	cardioid
