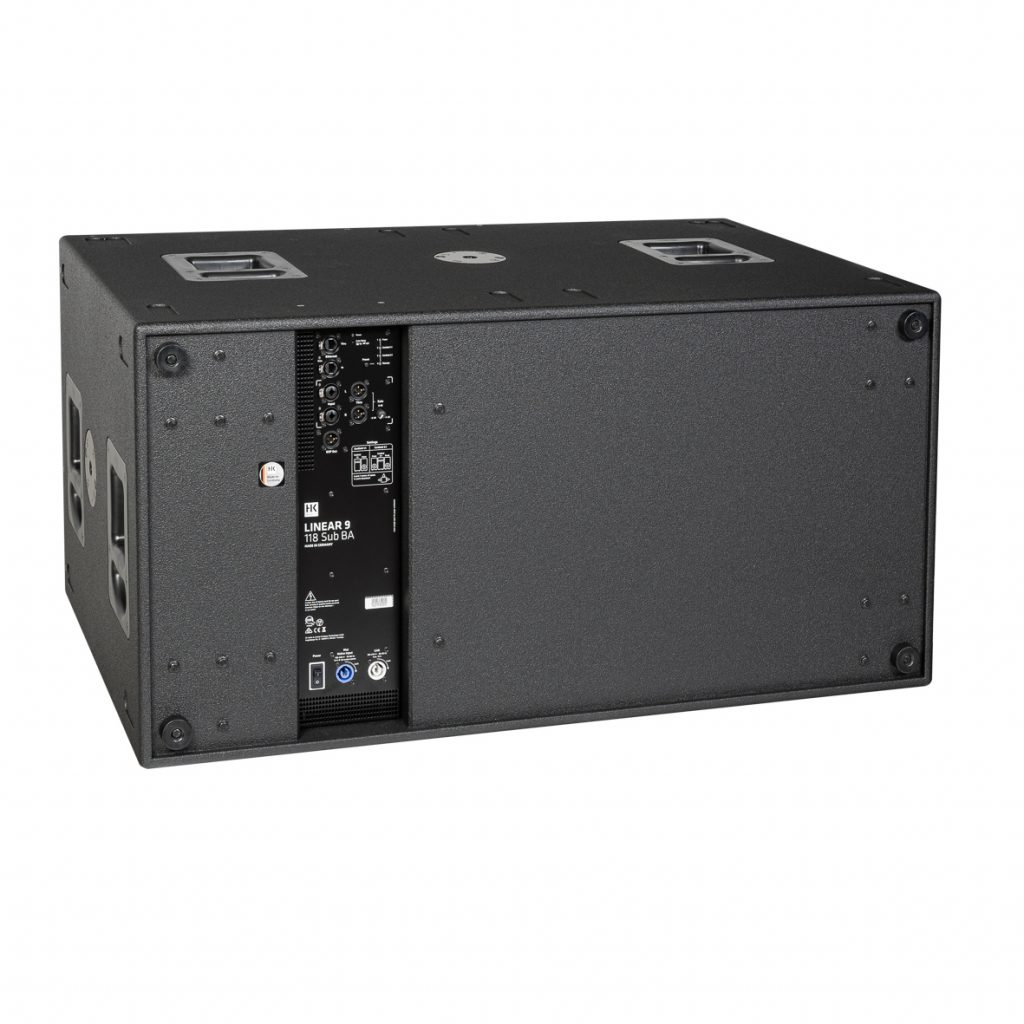

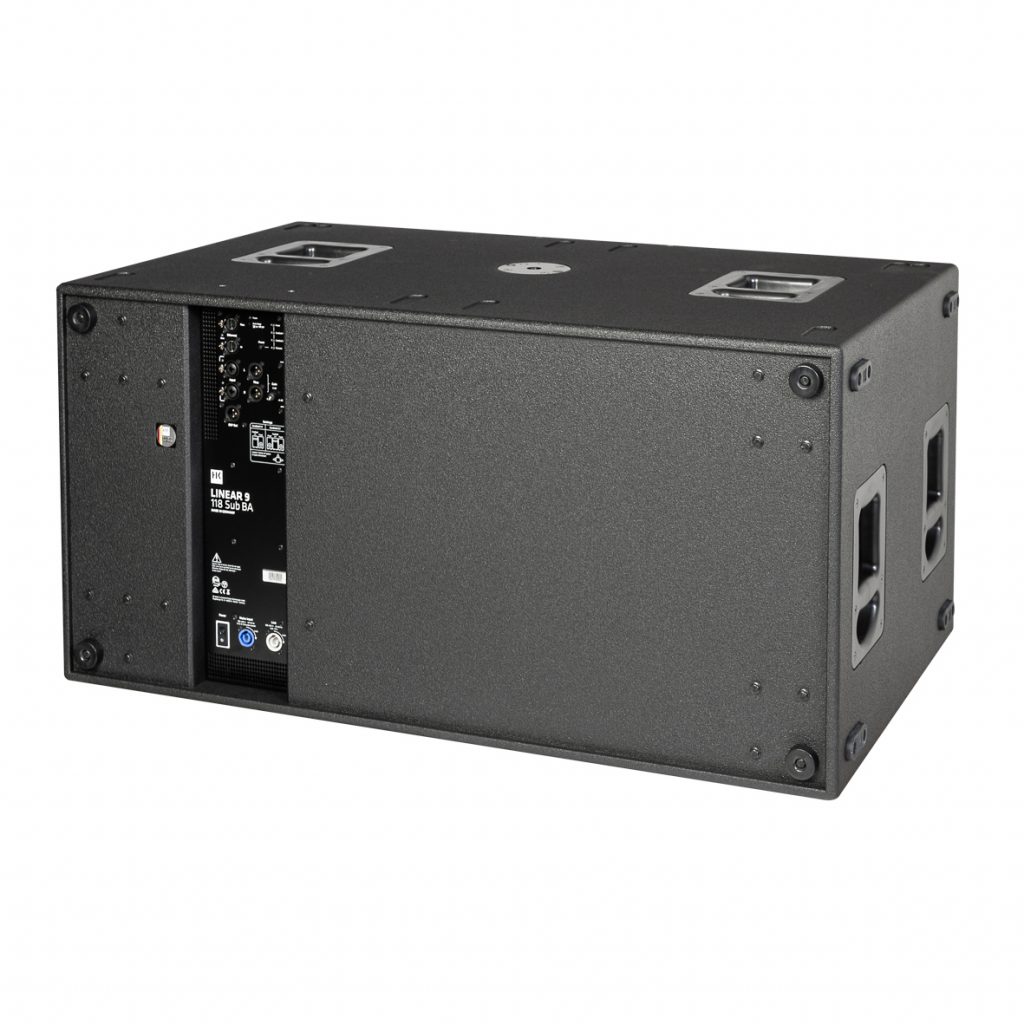

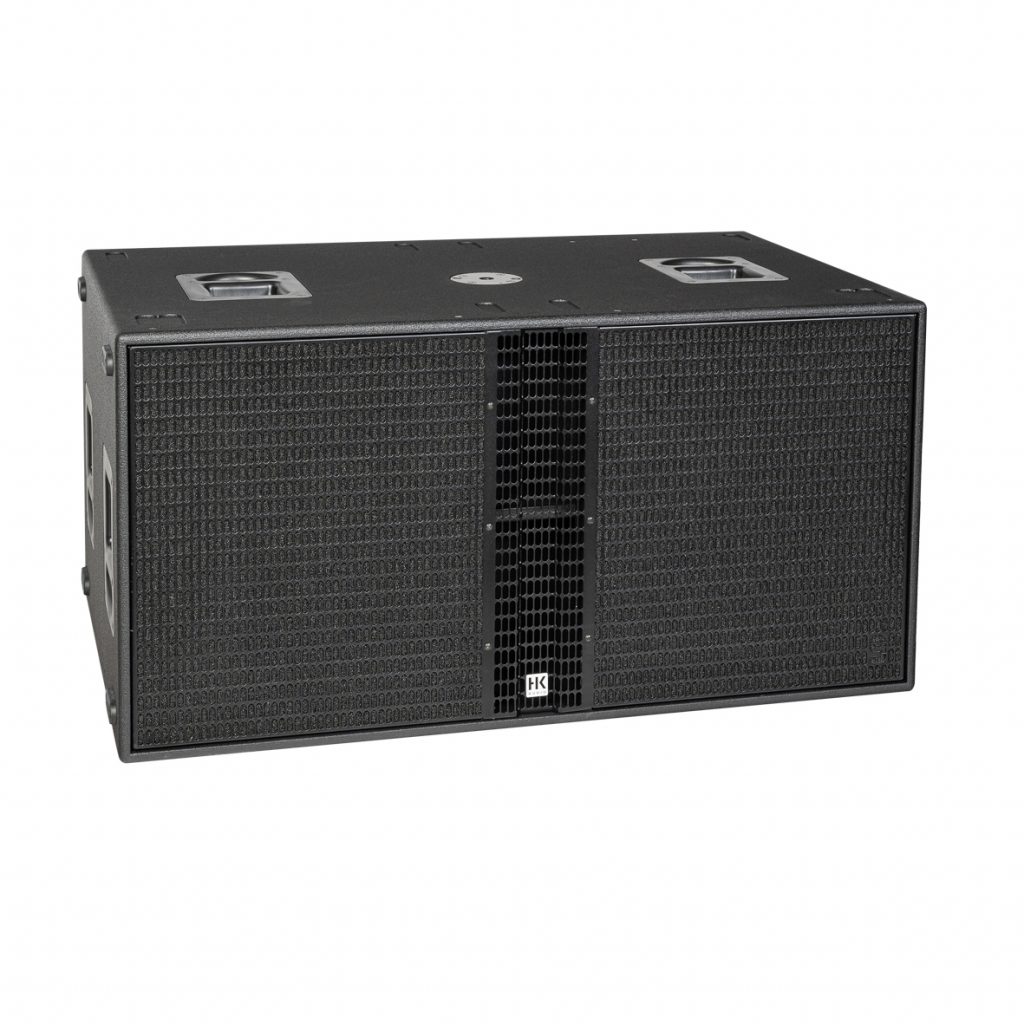

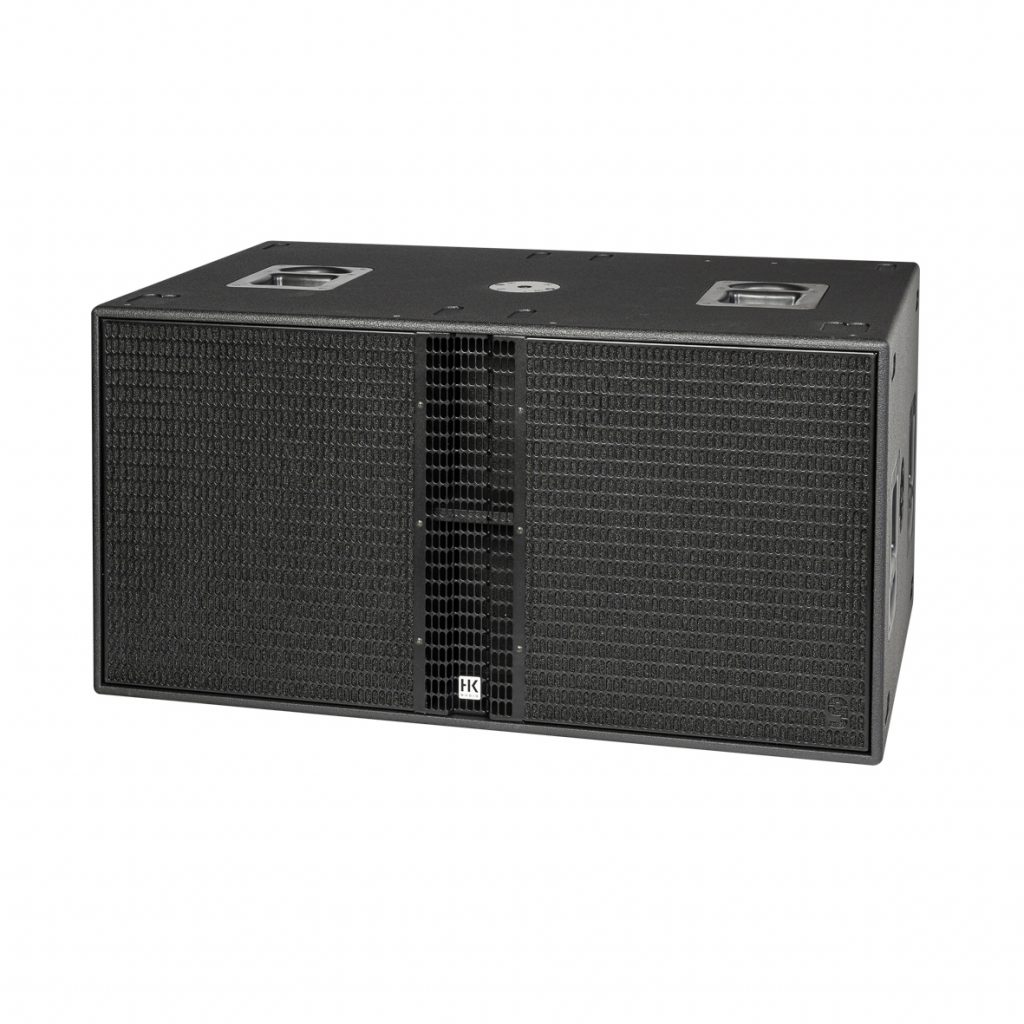

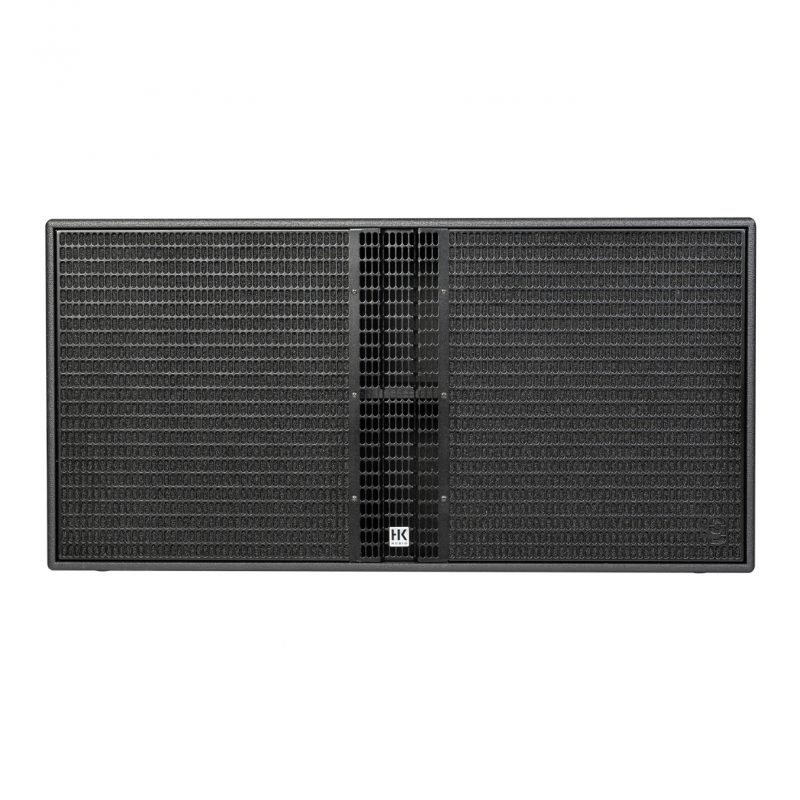

HK Audio Linear 9 118 Sub BA


Active subwoofer

  • exceptional sound pressure level with low cut-off frequency.
  • compatible with all LINEAR 9 Mid/High models.
  • integrated presets for quick cardioid settings.
  • 1100 W RMS Class D amplifier for powerful performance.
  • compact dimensions and robust birch multiplex housing.
HK Audio
3 25518
Currently unavailable. Request details
Central warehouse: 0
Add to cart
16871 points of loyalty
Shipping free
Warranty 24 months
Returns 14 days

HK Audio Linear 9 118 Sub BA - Bandpass subwoofer with an 18" speaker featuring dual ventilation. The generous size of the cabinet allows for an exceptionally high sound pressure level, while simultaneously providing a low cut-off frequency. This makes this subwoofer not only a perfect partner for powerful full-range speakers but also an ideal low-end extension for the LINEAR 9 118 Sub A with direct radiation. Thanks to the integrated presets, cardioid settings can be implemented quickly and easily. The LINEAR 9 118 Sub BA is compatible with all LINEAR 9 Mid/High models.

  • Max. SPL @ 10% THD: 134 dB half space (40 Hz – 110 Hz on average)
  • Max. Peak SPL @ 10 % THD: 136 dB half space
  • Frequency response +/-3 dB: 38 Hz – X-over
  • Frequency response -10 dB: 31 Hz – X-over
  • Amplifier output power (RMS): 1100 W
  • Amplifier type: Class D
  • LF Driver: 1 x 18" coil, 4"
  • Maximum input level: +20 dBu

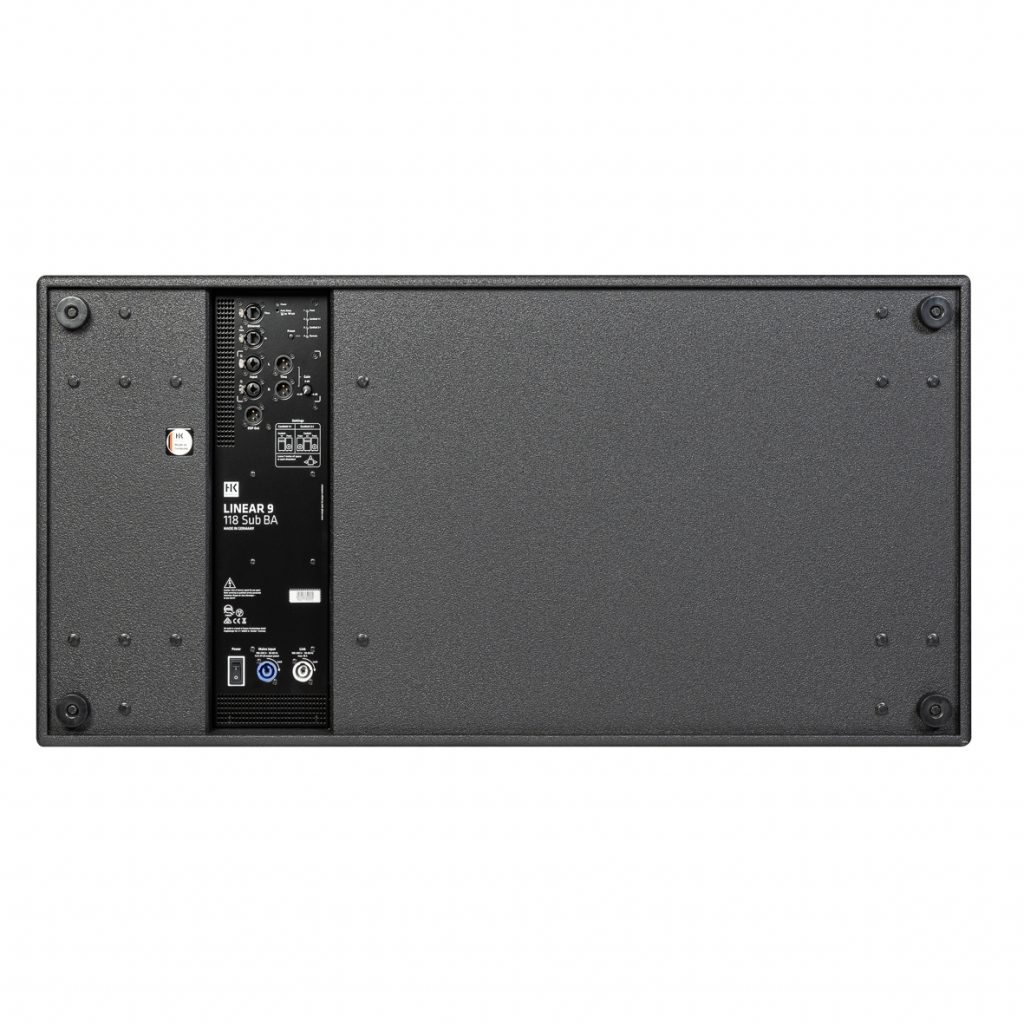

  • Analog inputs: 2 x balanced XLR combo
  • Analog thru: 2 x balanced XLR
  • DSP output: Balanced
  • Network port: Ethercon RJ45, 1 x In, 1 x Thru
  • Preset filters: Front, Cardioid 1:1, Cardioid 2:1, Remote
  • Remote software: DSP CONTROL (Windows, macOS)
  • DSP functions: Full parametric EQ with 10 bands with variable filter characteristics, low-pass filter, polarity, level, delay, limiter, mute
  • Sampling frequency: 96 kHz
  • System latency: Less than 2.6 ms
  • Network connector: 1 x Powercon NAC3 In, 1 x Powercon NAC3 Thru, 100–240 V
  • Power consumption: 1.9 A / 100–240 V nominal according to EN 62368-1

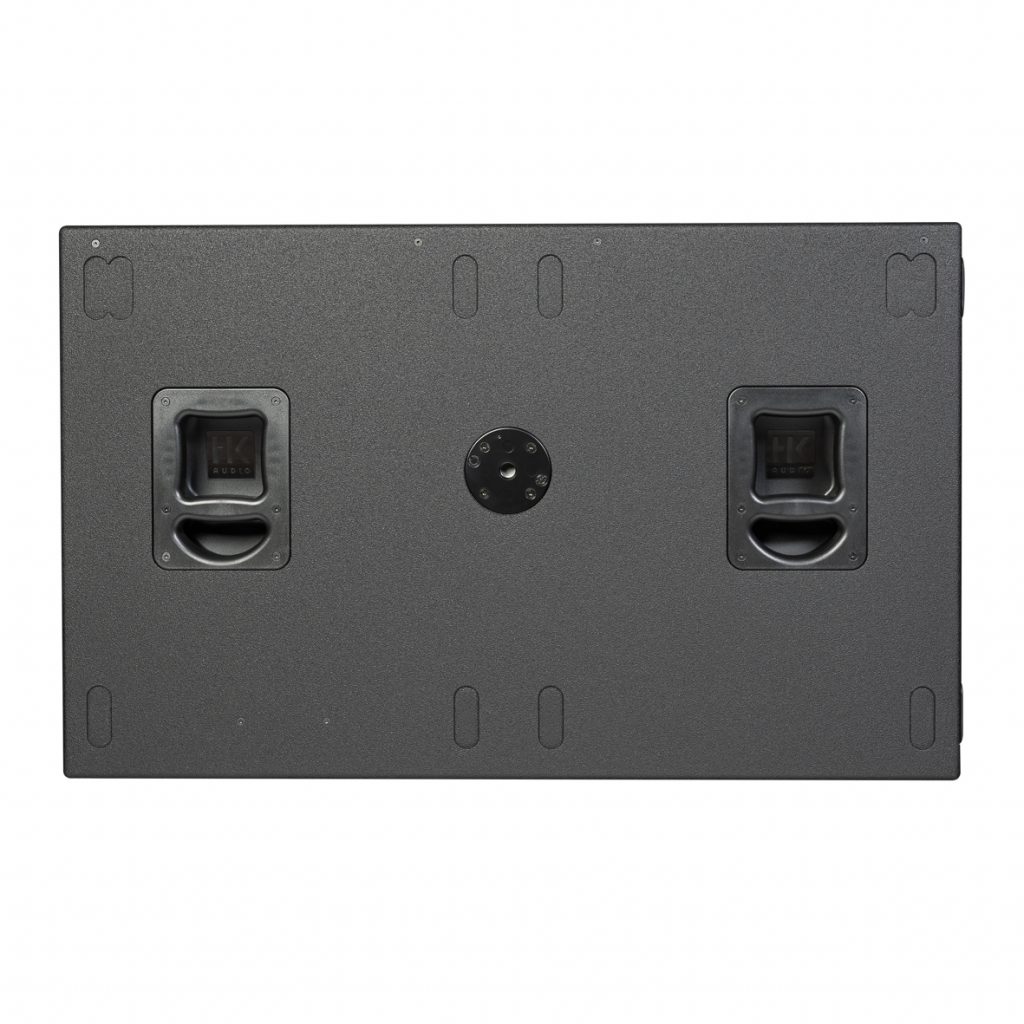

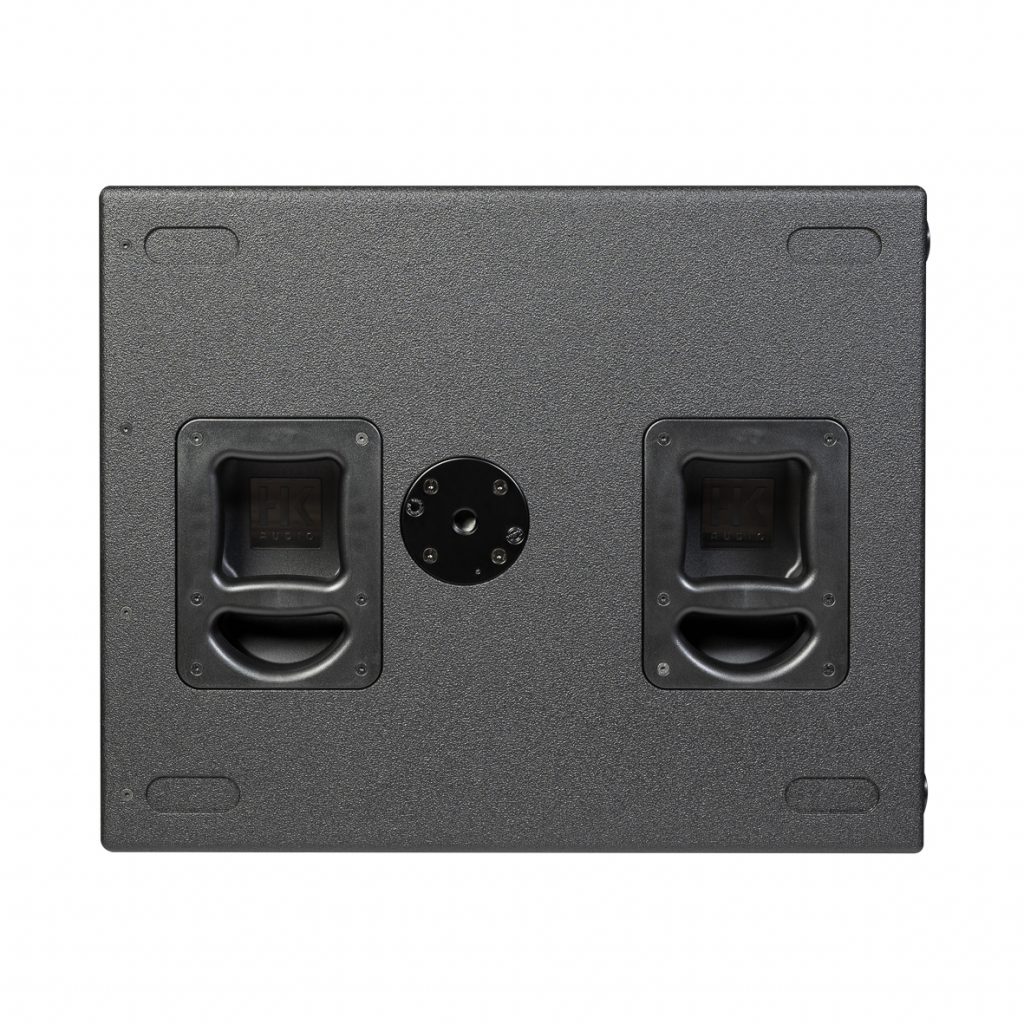

  • Pole mount: 2 x M20

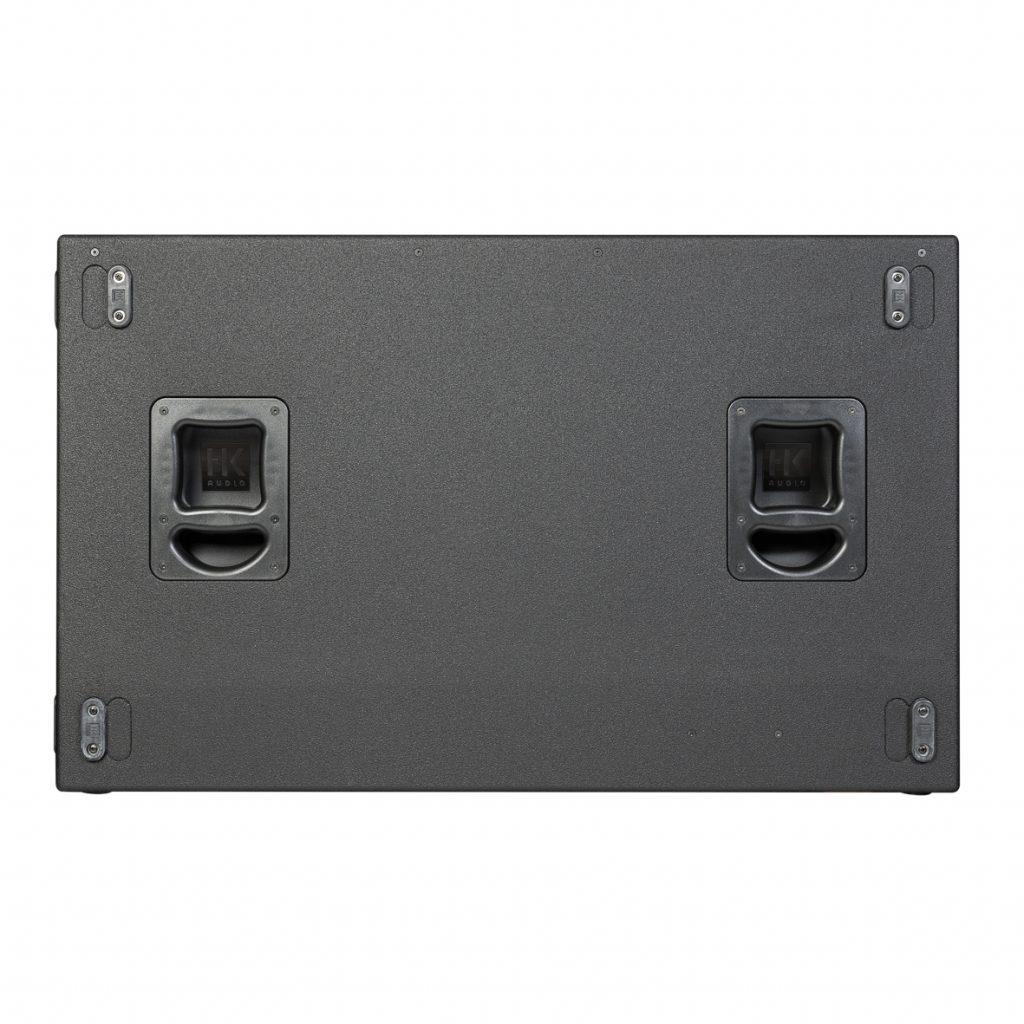

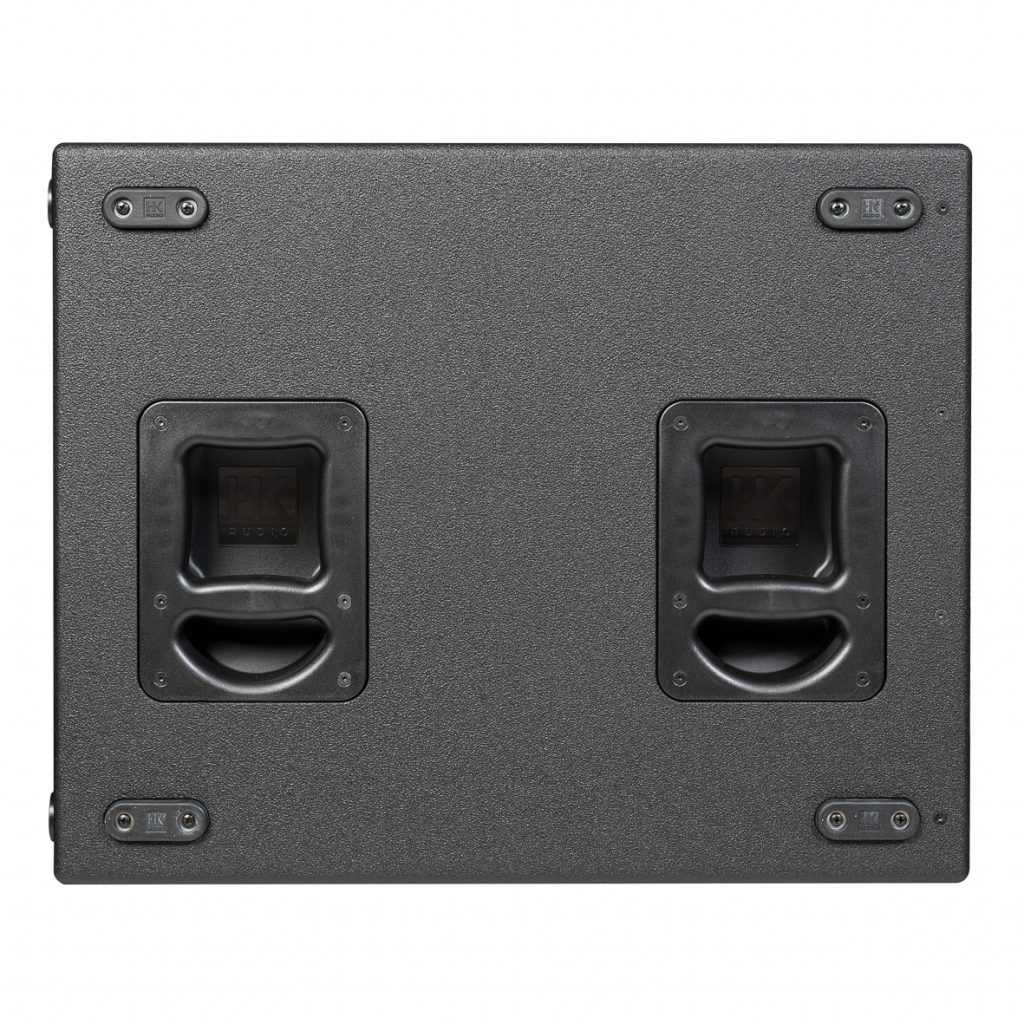

  • Carrying handles: 8 x MultiGrip
  • Housing: Birch multiplex
  • Finish: Black PU coating
  • Front grille: 2 mm metal grille supported with black acoustic foam
  • Dimensions (L x H x D): 111 x 56 x 69 cm
  • Weight: 63.5 kg

Product code: 1007884

Unit of sale: piece

Specifications:
Amplification: 1100 W
Configuration: 18"
Maximum SPL: 134 dB
