Genelec UNIO Personal Reference Monitoring

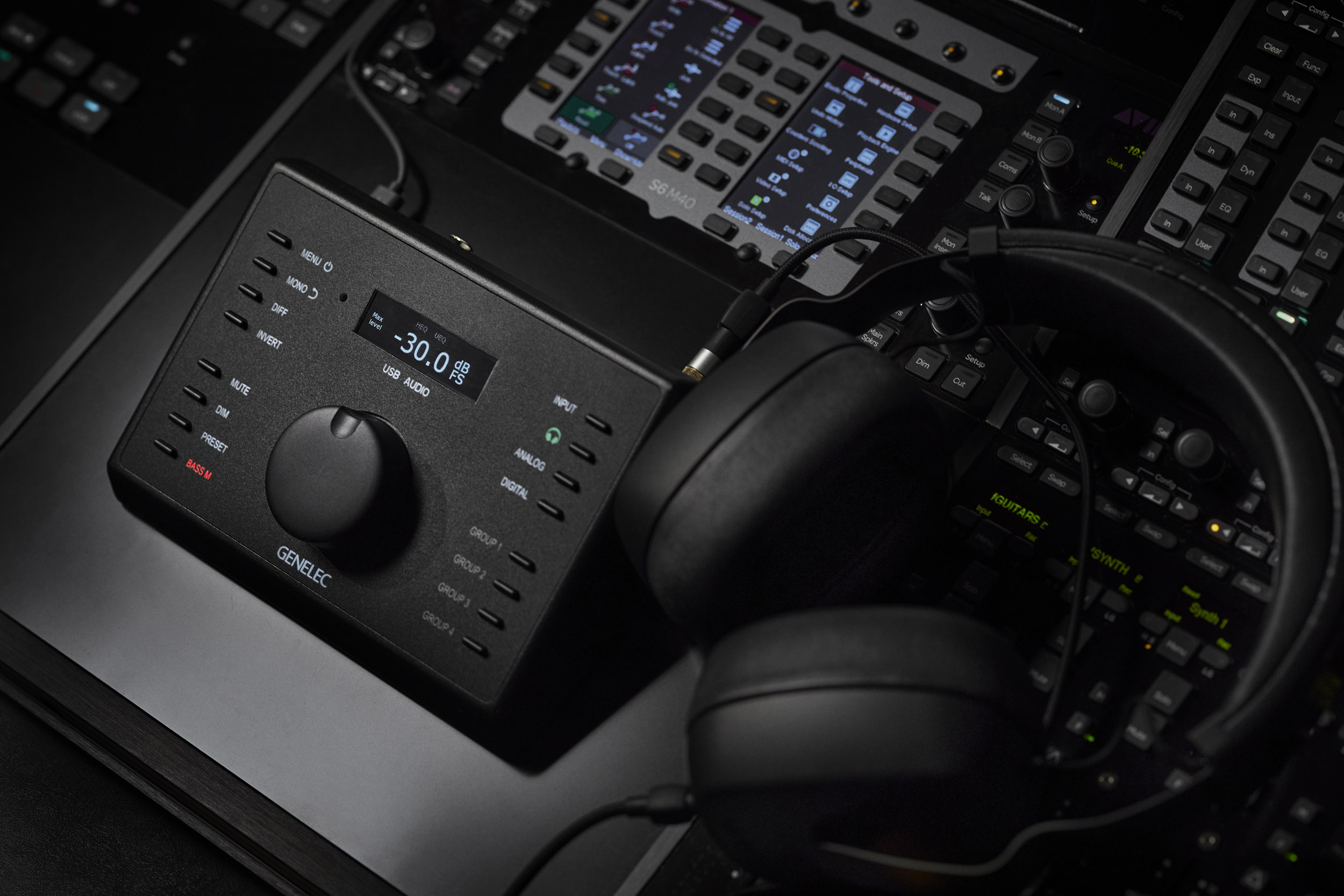

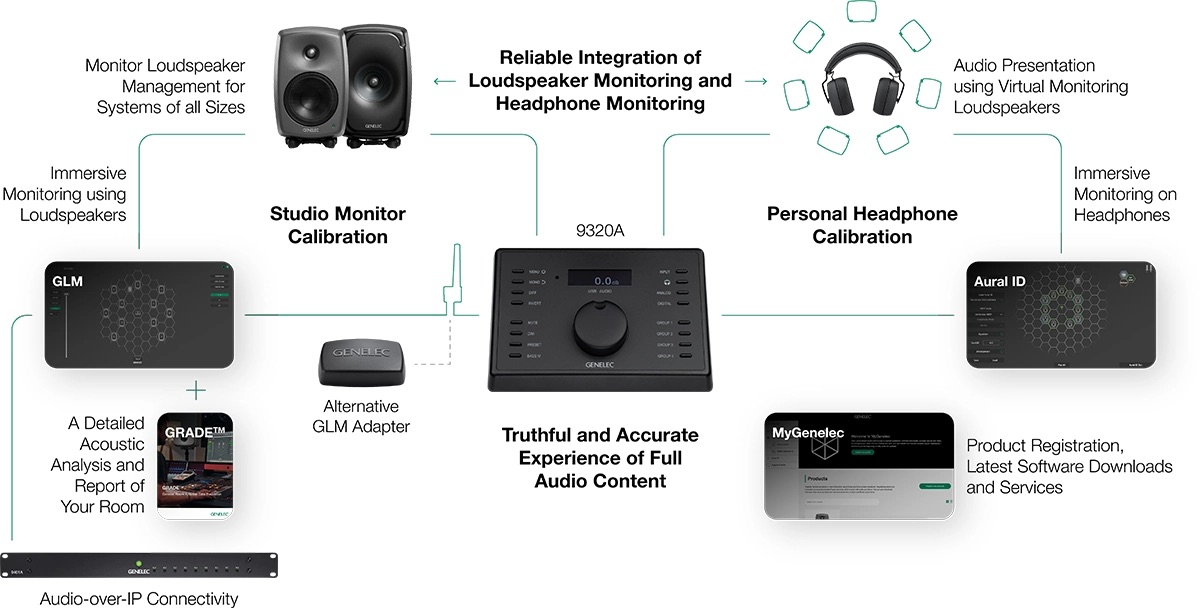

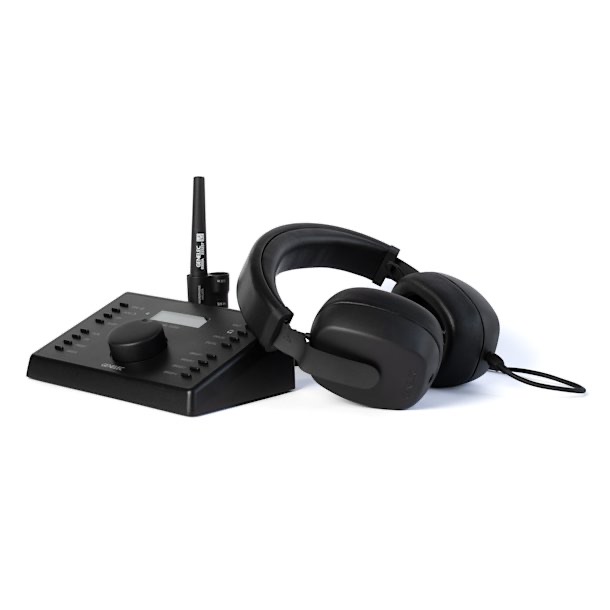

Genelec UNIO PRM Reference Monitor System - A monitoring system for the studio, consisting of a monitoring controller, reference headphones, and a measurement microphone. Includes the necessary accessories for connecting, controlling, and calibrating the monitoring system.

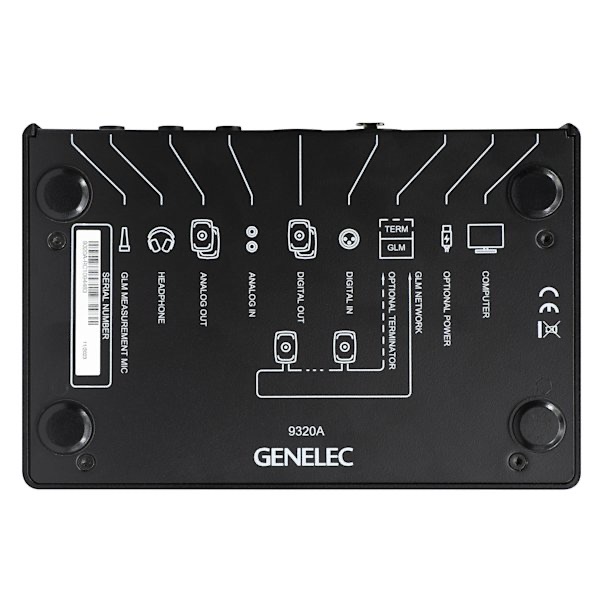

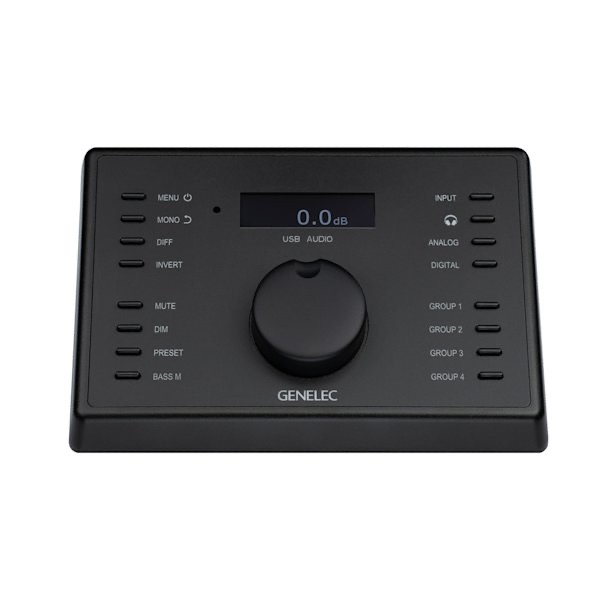

Genelec 9320A – Monitor Controller

• Connection for up to 2 stereo monitoring systems and headphones
• Level calibration according to EBU R128, ATSC A/85, and SMPTE RP200
• Touch control for the main functions of the Genelec Loudspeaker Manager (GLM) software

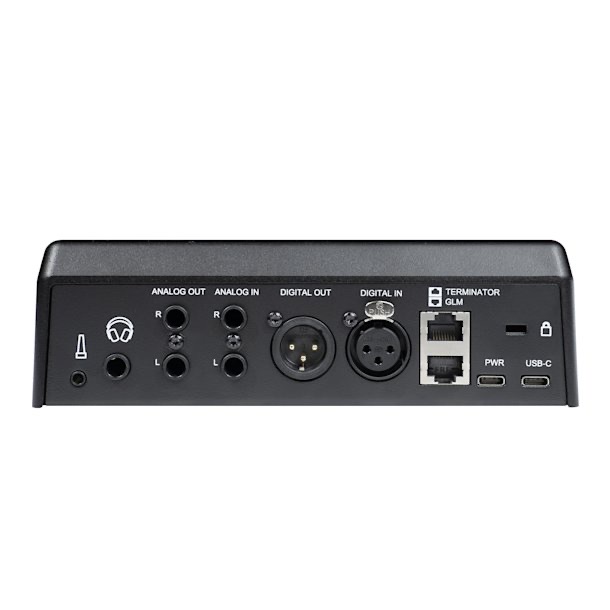

• 2 × inputs and 2 × analog outputs, 6.3 mm stereo jack
• 2 × RJ45 and digital AES/EBU connection via XLR
• Stereo output for headphones, 6.3 mm jack
• Input for measurement microphone, 3.5 mm mini-jack
• 2 × USB-C for connection to computer and power supply
• Dimensions: 190 × 139 × 60 mm
• Weight: 0.9 kg

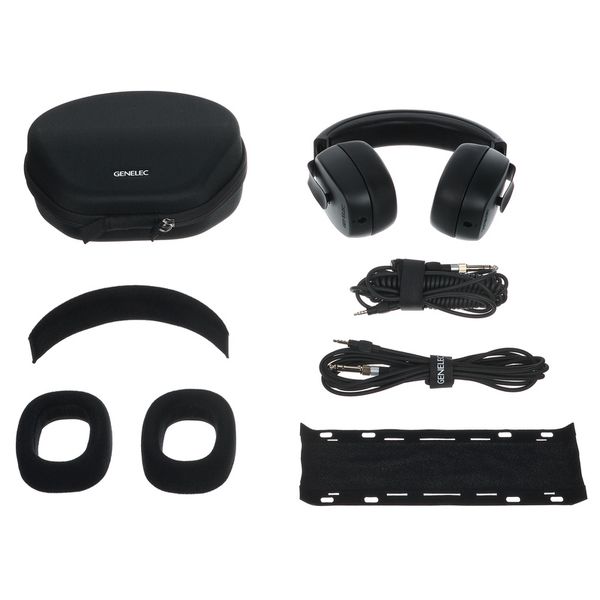

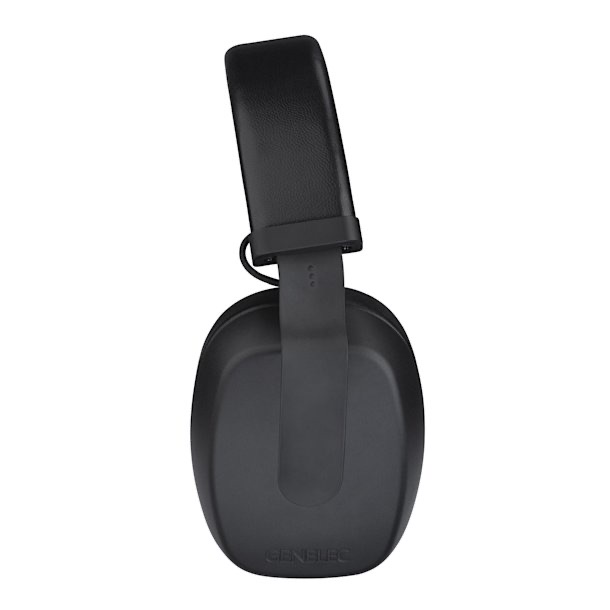

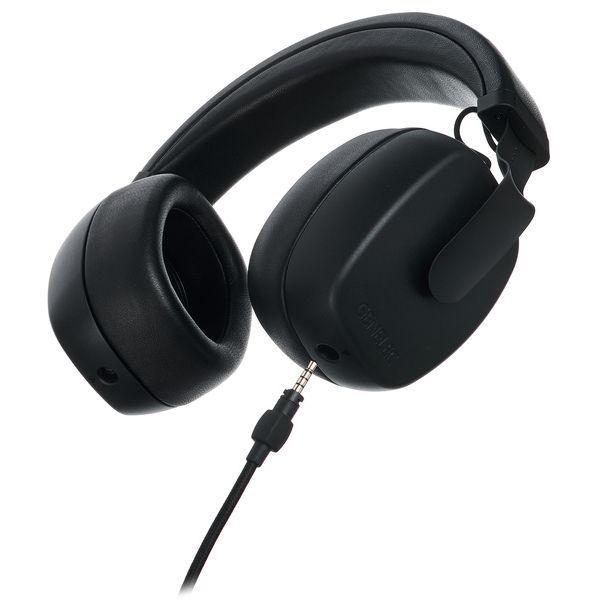

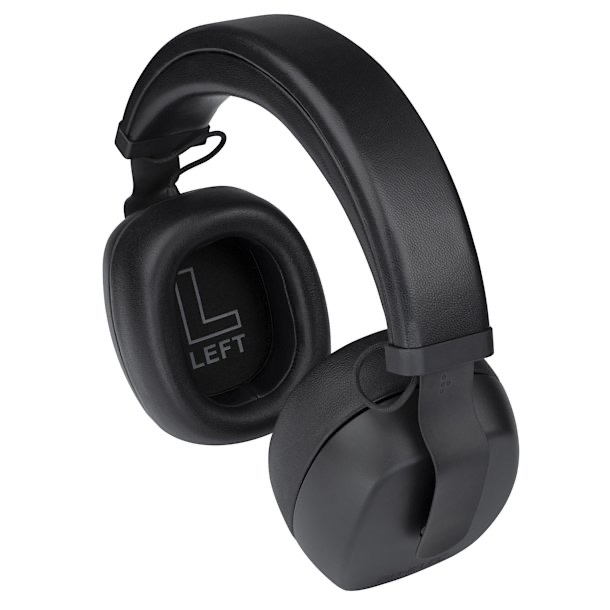

Genelec 8550A – Reference Headphones

• Closed dynamic design
• Frequency response: 20 Hz – 20 kHz (-3 dB)
• Max SPL: 109 dB; 119 dB short-term
• Sensitivity: 103 dB SPL/V
• Impedance: 184 Ω at 1 kHz
• THD: 0.09% at 1 kHz
• Ear cushions and headband made of textile material

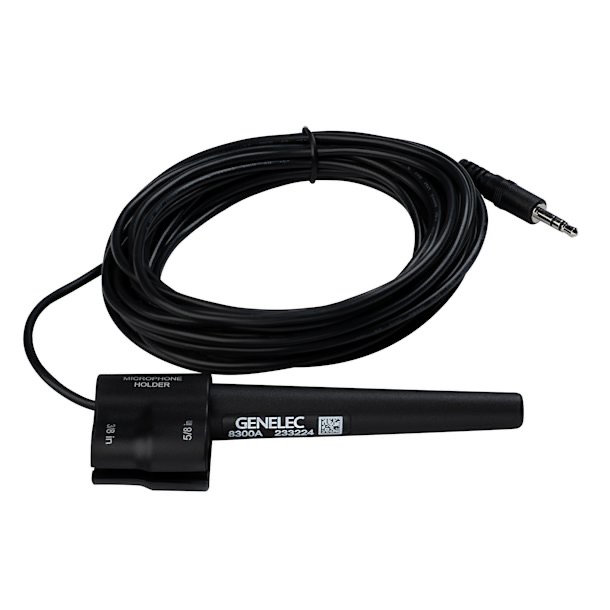

Genelec Measurement Microphone

• Microphone designed for measuring and calibrating the monitoring system
• Included stand

Cables and Accessories

• 3 m USB-C cable with USB-A adapter
• Straight cable for headphones, 3 m
• Coiled cable for headphones, 5 m

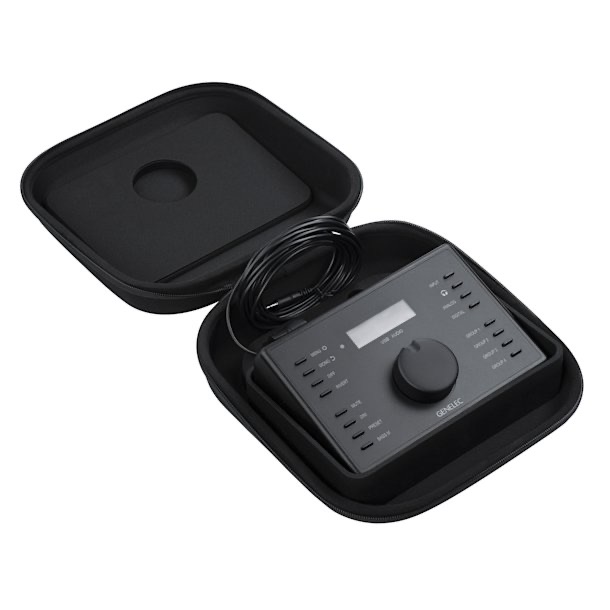

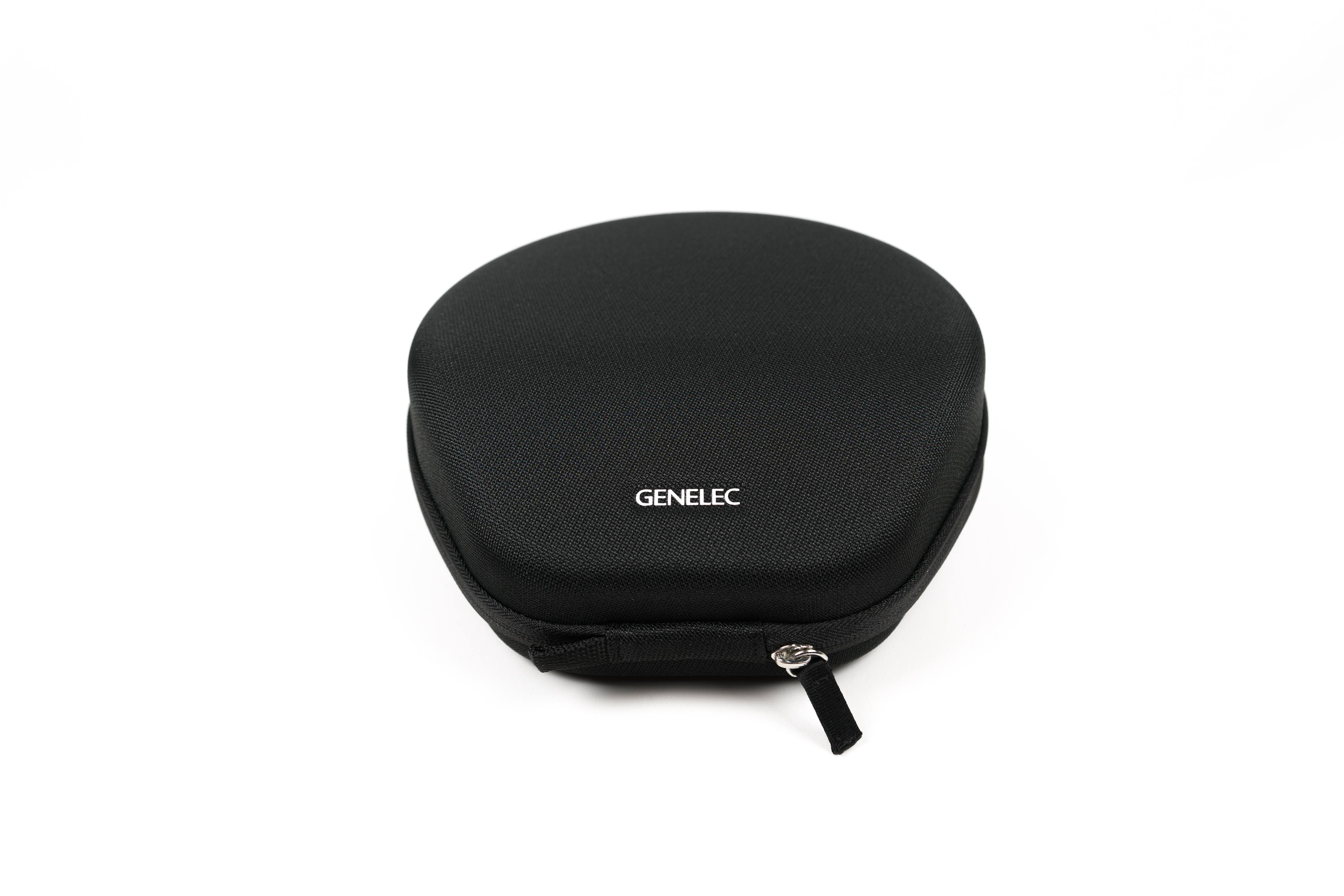

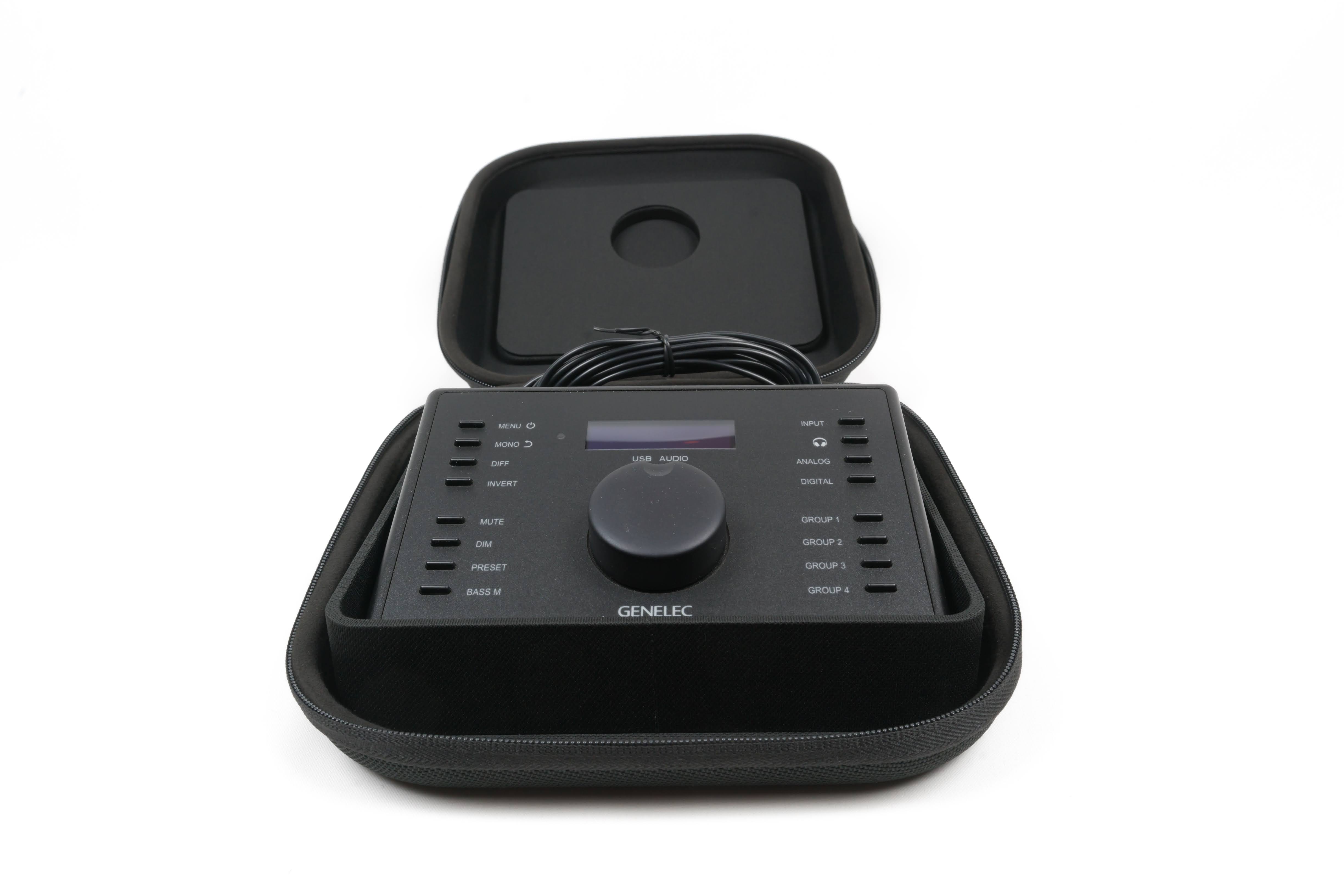

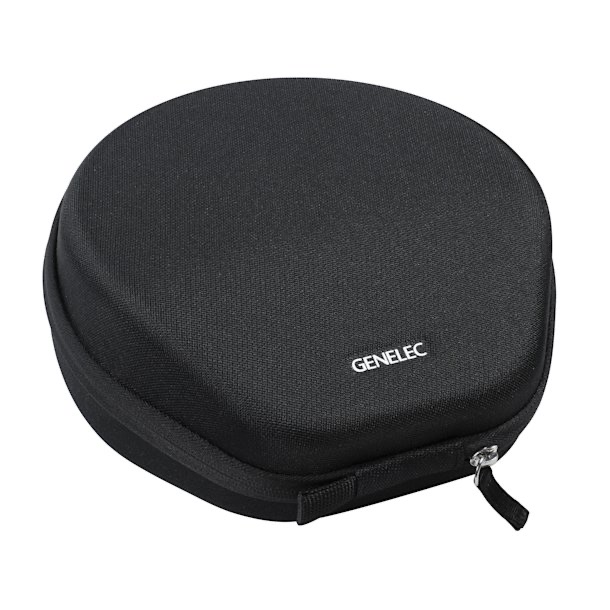

• Transport bag for 9320A and 8550A
