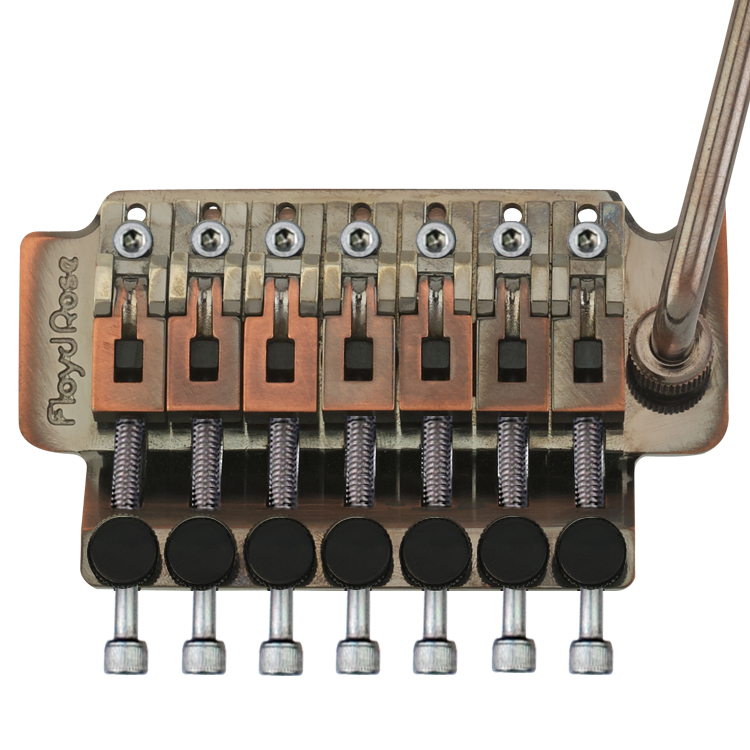

Floyd Rose FRTCS700SS - Original Hot Rod Series Tremolo System, 7-String - Vintage Copper

Floyd Rose System

original Floyd Rose vibrato system for electric guitar.
hot Rod Series with double locking and two-way design.
7-string configuration with adjustable bridge height and intonation.
includes all necessary mounting accessories and a vintage copper finish.
requires special routing for 2-point mounting.

975³⁹ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

5059 points of loyalty

Shipping free

Returns 14 days

request details

Floyd Rose FRTCS700SS - Original Hot Rod Series Tremolo System, 7-String - Vintage Copper Add to cart: 975³⁹ €

Original Floyd Rose vibrato system for electric guitar:

- Hot Rod Series
- Double locking design
- Two-way design
- 7 strings
- String spacing 10.75 mm
- Distance between B string and E is 64.5 mm
- Adjustable bridge height and string intonation
- Locking nuts and fine adjustment screws for each string
- 2-point mounting - requires special routing of the body (see routing diagram)
- Made from hardened steel
- Includes 37 mm brass tremolo block, locking nut, springs, claw, mounting studs, hex key, vibrato arm, and mounting accessories
- Vintage copper

Downloadable files:

Schematic Drawing 7_String_Dimensions.pdf Routing Diagram FR_7-STG_Routing_mm.pdf

Product code: FL FRT-CS700 SS

Unit of sale: piece
