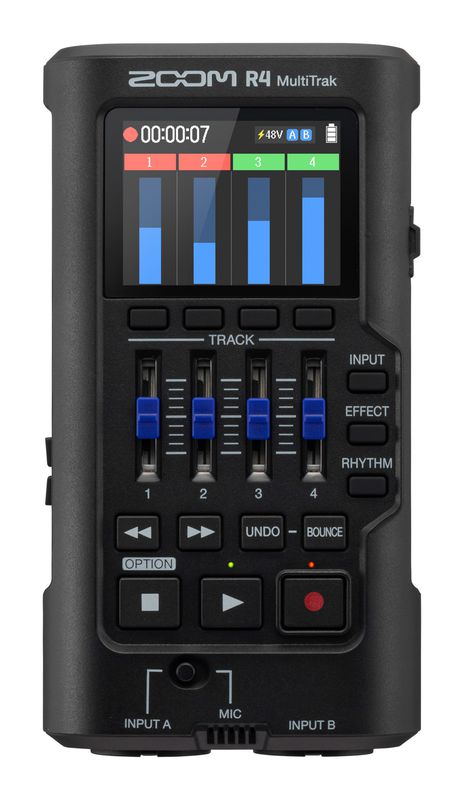

Zoom Zoom R4 MultiTrak

Zoom R4 MultiTrak – Compact and portable digital recorder that can also be used as an audio interface, featuring an integrated omnidirectional condenser microphone with a resolution of 48 kHz / 32 Bit Float. It can be powered via USB or with 4 AA batteries.

• Playback capability: 4 tracks in total
• Can record only 2 tracks simultaneously
• 1 dedicated Bounce track
• Integrated omnidirectional microphone
• Low-noise microphone preamp (-120 dB EIN)
• Volume level control + mix control (between the 4 tracks)
• Functions: Play / Stop / Record
• Access to input effects such as: amp simulators, delays, distortions
• Access to percussion patterns / metronome via the “Rhythm” button
• Control for Bounce / Undo Bounce
• Headphone level control
• Tripod mountable
• Maximum microphone SPL: 115 dB
• Input connections:
  • 2 x balanced combo XLR/TRS (XLR 2: hot)
  • Input level does not require adjustment (due to A/D converter)
  • 48V phantom power required for inputs A & B
  • Input impedance: XLR 2.3 Ω / TS 1 MΩ
  • USB-C input (supports data transfer and USB Bus Power)
• Output connections:
  • 1 x 3.5 mm stereo jack output for headphones
  • Output impedance: 10 Ω
  • Maximum output level: 20 mW + 20 mW (at 32 Ω load)
• Recording format: WAW: 48 kHz / 32 bit float – mono
• Compatible with micro SDHC (4 GB – 32 GB) or SDXC (64 GB – 1 TB)
• 2” diagonal LCD screen (240 x 320)
• Audio interface:
  • USB 2.0 High Speed
  • Sampling rate of 48 kHz
  • Bit rate: 24 bit / 32 bit Float
  • Channels: 2 inputs / 2 outputs
• Operates on 4 AA batteries
• Rechargeable via ZOOM AD-17 AC adapter
• Battery life on alkaline batteries: 7 h / on Lithium batteries: 14 h
• Power consumption: 5 W
• Dimensions: 74 x 138 x 36 mm
• Weight: 287 g
