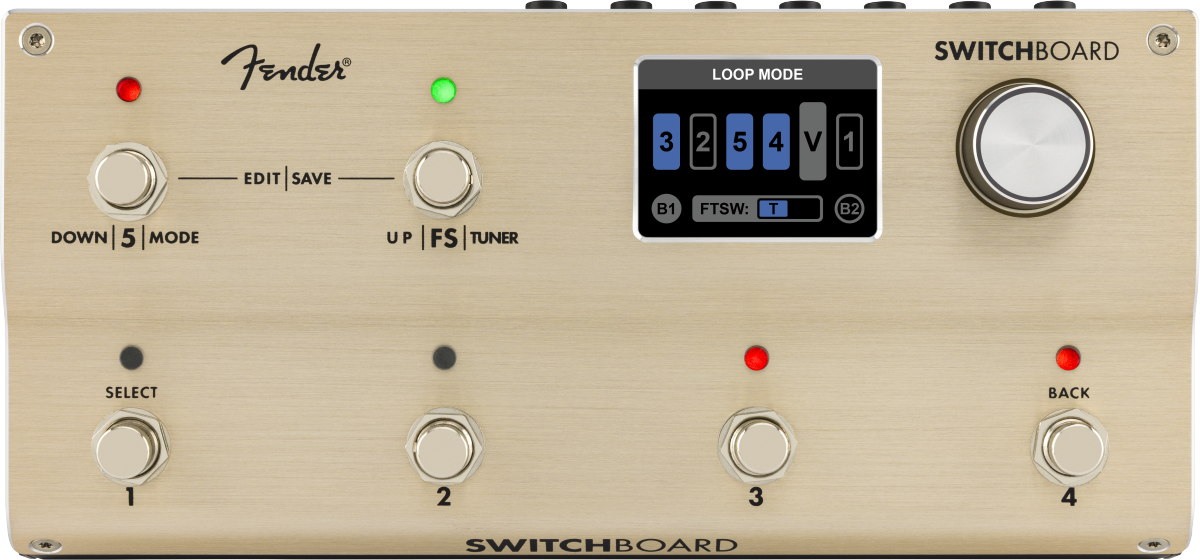

Fender Switchboard Effects Operator

Fender Switchboard Effects Operator - is a compact and streamlined effects switching solution, featuring an impressively simple interface that provides complete control over the signal path, recall of multi-pedal presets, and convenient effects switching right at your feet. Equipped with 500 user presets, a built-in professional tuner, two high-fidelity pads, a built-in volume pedal, and much more, the Switchboard offers professional-level control in an easy-to-use package.

General:

• 5 effect loops with true bypass relay
• 400 easily accessible presets with an additional 100 favourite presets
• The large, full-colour LCD screen and Encoder button provide an easy-to-use graphical interface
• Fully rearrangeable order of effect loops
• Programmable pedal and MIDI outputs for controlling external equipment
• Integrated professional tuner
• Built-in mobile volume pedal
• Switchable high-fidelity input and output pads
• Loop number 5 with stereo capability can host stereo effects
• Dimensions: 115 x 70 x 242 mm
• Includes: 9V adapter

Technical specifications:

• Input - 1/4"
• Connection: USB-C
• Input impedance: 1 MΩ
• Output impedance: 150Ω
• Consumption: 500mA
• Power supply: 9VDC Center Negative AC Adapter
