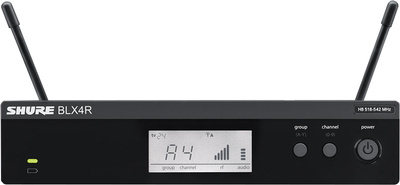

Shure BLX4R

Shure BLX4R, UHF wireless receiver with diversity antenna controlled by a microprocessor, improved linearity and frequency response, automatic frequency scanning function:

• rack-mountable version with included rack kit
• 6 systems usable in parallel on a frequency group
• metal housing, detachable external antennas
• QuickScan function - automatic scanning of optimal/free frequencies
• Pilottone function
• outputs: balanced XLR and unbalanced Jack
• LC display for channel and audio signal information
• RF sensitivity: 105 dBm at 12 dB SINAD, typical
• image rejection: 50 dB, typical
• operating range: 100 m in open field
• dimensions: 50 x 198 x 163 mm
• weight: 989 g
• power supply: 12–15 V DC @ 260 mA

Available on the following frequency groups:

• S8: 823 - 832 MHz
• T11: 863 - 865 MHz
• Q25: 742 - 766 MHz
