LD Systems U506 IEM

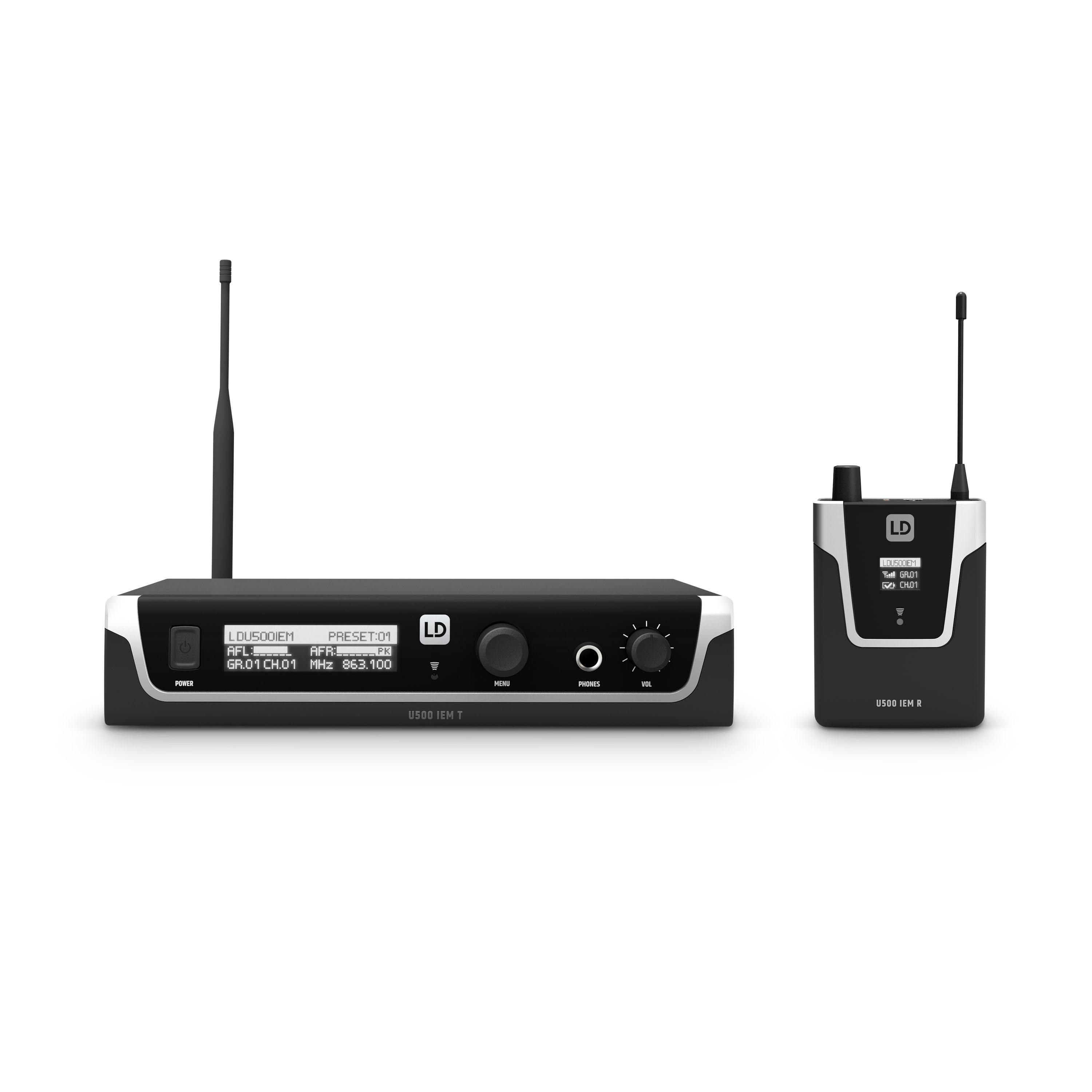

LD Systems U506 IEM – Wireless in-ear monitoring set, which includes a transmitter and a receiver, operating in the frequency range of 655-679 MHz. The U500® In-Ear systems offer 96 channels and selectable transmission power of 2, 10, or 30 mW, ensuring a range of over 100 m. They allow for quick infrared synchronization, feature high-contrast OLED screens, and enable individual user naming. Additionally, up to 10 custom presets can be saved.

Synchronization is done via infrared, and the body transmitter has a runtime of 10 hours using 2 AA batteries. The U500 IEM transmitter is compatible with U300 IEM packs. The set includes a 19-inch rack mounting kit, BNC antenna, and power adapter.

Specifications U506 IEM Set

• Transmitter LDU506IEMT and receiver LDU506IEMR
• Frequency range: 655-679 MHz
• 96 available channels
• Transmission power ERP: 2, 10 or 30 mW
• Range: over 100 m
• Infrared synchronization
• 10 hours of operation with 2 AA batteries
• Compatible with U300 IEM packs
• 19-inch rack mounting kit, BNC antenna, power adapter
• Total weight: 0.755 kg

Specifications Receiver U506 IEM:

• Transmission frequency range: 655 - 679 MHz
• Available channels: 12
• Transmission method: FM, mono/stereo
• Frequency response: 40 - 16000 Hz
• Audio output: 3.5 mm TRS
• Maximum audio output level: 33 mW @ 16 Ohm, 80 mW @ 33 Ohm
• Antenna connector: Fixed to the housing
• Controls: Down, On/Off, Up, volume
• Indicators: Multifunctional OLED screen, RF (LED)
• Power supply: 2 x 1.5 V AA
• Operating time: < 10 hours
• Dimensions: L 64 mm, H 100 mm, D 24 mm
• Weight: 0.095 kg
• Included accessories: 2 AA batteries, antenna
• Features: Battery status LED

Specifications Transmitter U506 IEM:

• Transmission frequency range: 655 - 679 MHz
• Available channels: 12
• Operating modes: focus/mono/stereo
• Transmission method: FM, mono/stereo
• Frequency response: 40 - 16000 Hz
• Nominal HF output power: Variable (2 mW, 10 mW, 30 mW)
• Signal-to-noise ratio: 93 dB
• Total harmonic distortion (THD): 0.3 %
• Dynamic range: 88 dB
• Antenna connector: BNC
• Controls: Menu selector button, Power On/Off, headphone volume
• Inputs: 2
• Input connectors: Combo TRS 6.3 mm, XLR (balanced)
• Input impedance: 12 kOhm
• Indicators: Multifunctional OLED screen
• Power supply: 12 - 18 V DC
• Dimensions: L 212 mm, H 43 mm, D 123 mm
• Weight: 0.641 kg
• Included accessories: 19" rack mounting kit, BNC antenna, power adapter
