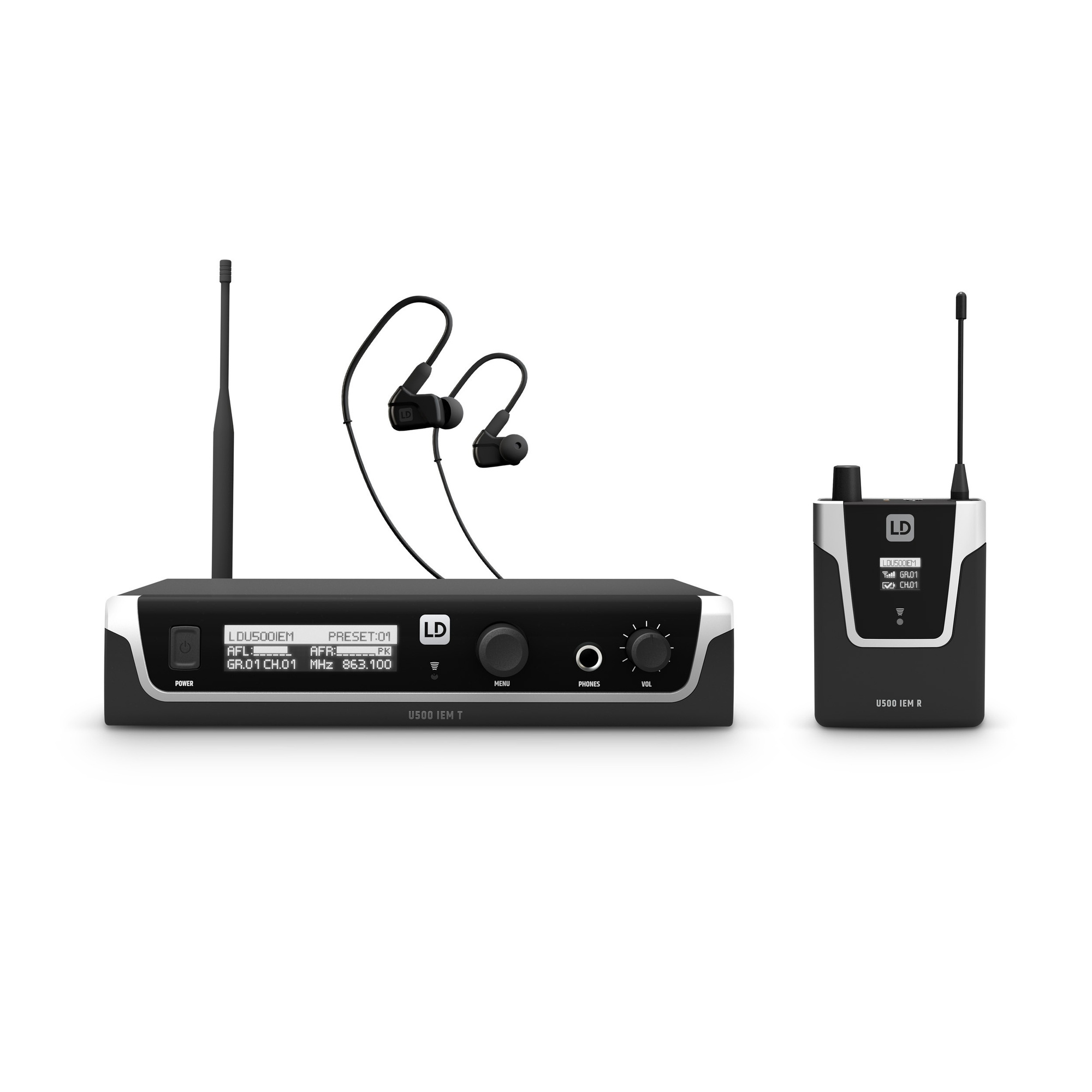

LD Systems U505 IEM HP

In-ear monitoring set

UHF frequency band: 584 - 608 MHz with 100m operating range.
In-ear headphones with frequency response of 20 - 18,000 Hz and 32 ohm impedance.
U505 BP transmitter with variable RF power options: 2mW, 10mW, 30mW.
U505R receiver featuring metal housing and audio frequency range of 40 Hz - 16 kHz.
supports 12 preset UHF frequencies and includes squelch functionality.

441⁶⁷ €

In stock and deliverable.

Central warehouse: 2

Add to cart

also deliverable via

2261 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details better price?

LD Systems U505 IEM HP Add to cart: 441⁶⁷ €

U505 IEM HP - In-ear monitoring set:

band UHF: 584 - 608 MHz
operating range 100m in open field
allows the use of 12 systems simultaneously on frequency band
headphones in-ear
- frequency response: 20 - 18,000 Hz
- impedance: 32 ohms
- cable length: 1.5 m
transmitter U505 BP
- variable RF power 2mW, 10mW, 30mW
- powered by included power supply (12 - 18 V DC)
- transmission method: Stereo/Mono
- controls: Volume for headphones
receiver U505R:
- metal housing
- audio frequency range (+/-3 dB): 40 Hz - 16 kHz
- 12 preset UHF frequencies
- squelch
- power: 2x AA 1.5V batteries
