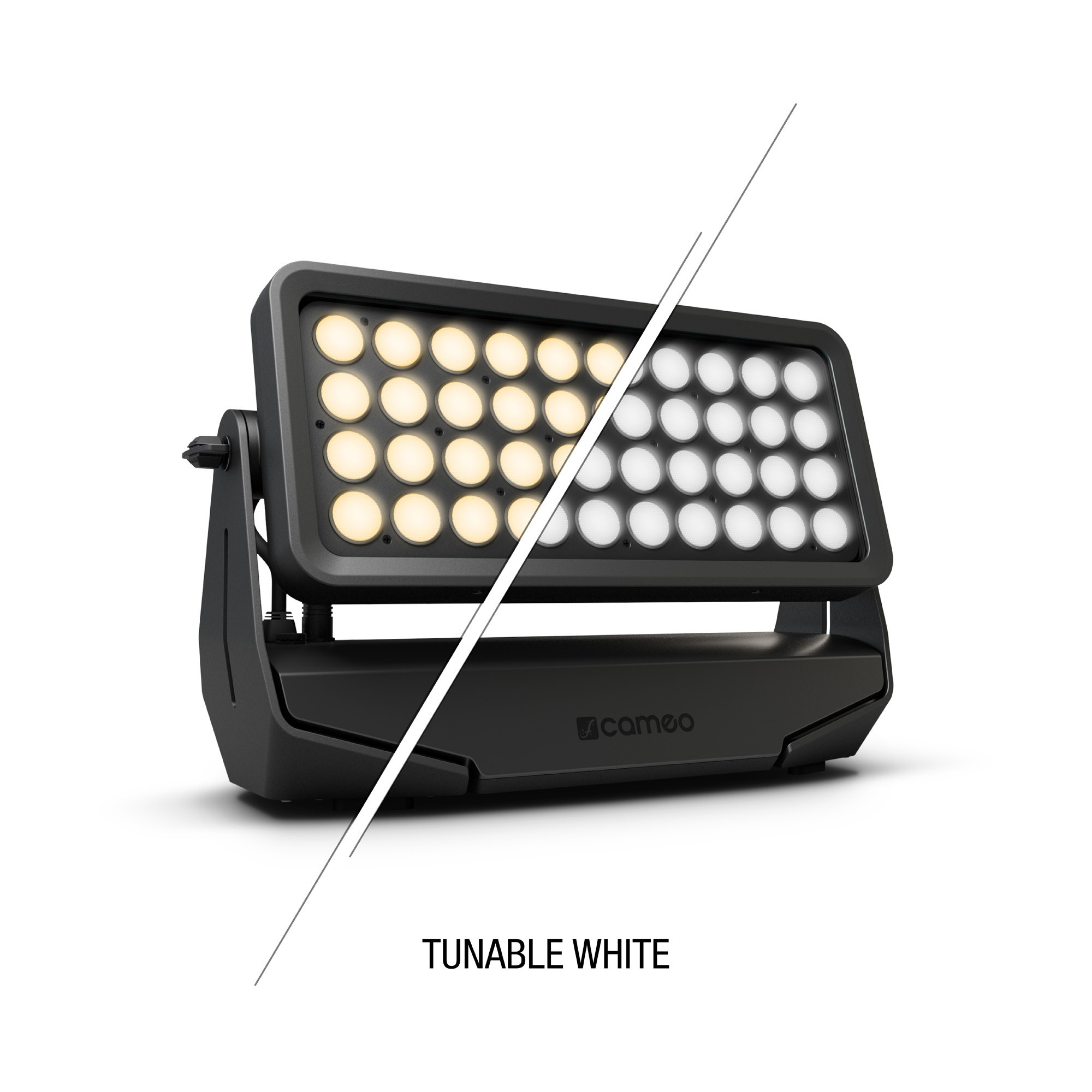

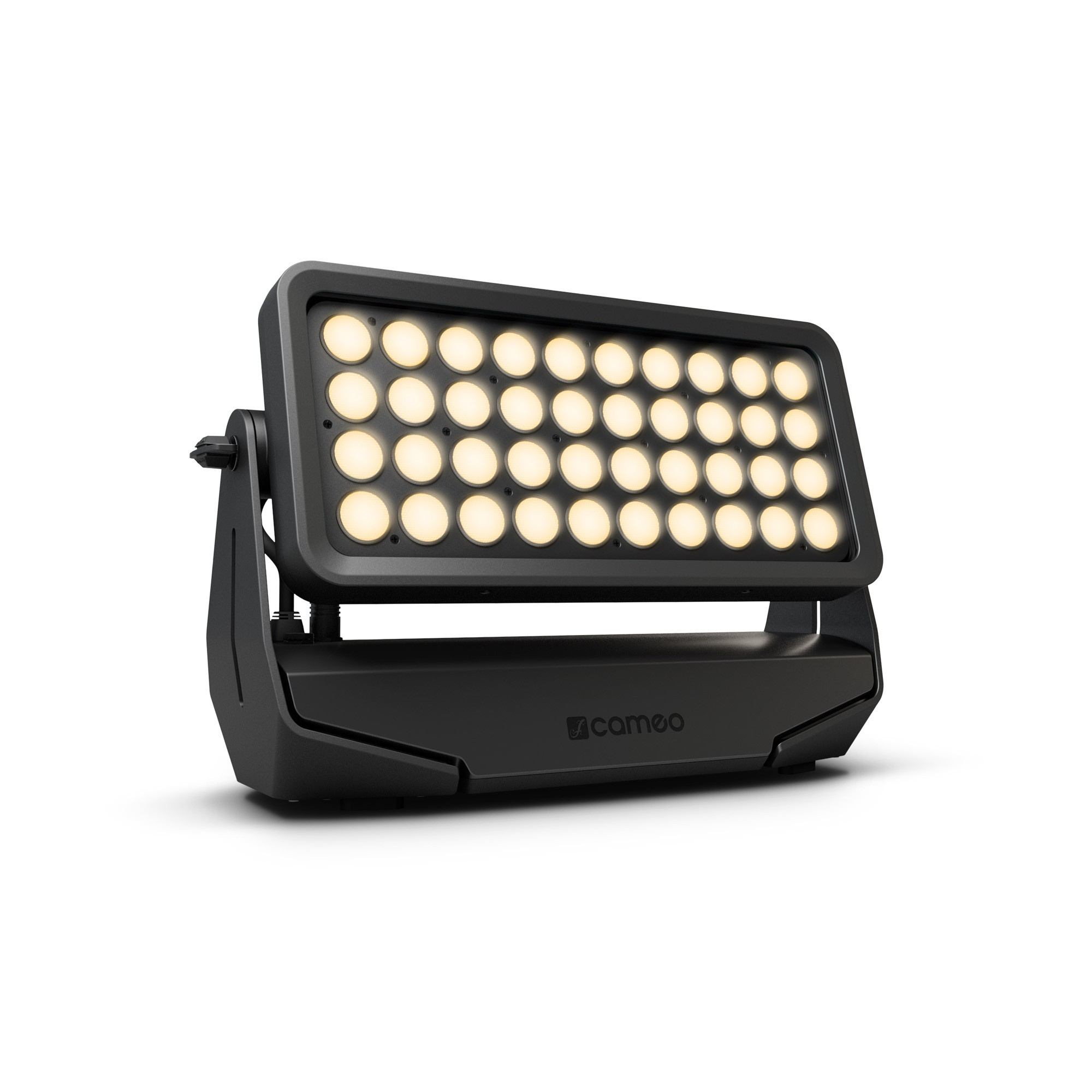

Puts every space in the right light - the Tunable White version of the ZENIT® W600 family projects its up to 31,000 lm light from a total of 40 x 12 watt cool and warm white LEDs powerfully and precisely onto every area, whether in the exhibition hall or at an exhibition. Thanks to 16-bit technology for high-resolution colour mixing and dimming, lighting designers can create powerful white surfaces that range from 2,600 K to 6,500 K in colour temperature. The selectable dimming curves including the optional simulation of the dimming behaviour of a halogen lamp make the ZENIT® W600 TW a versatile tool for atmospheric architectural and stand lighting.

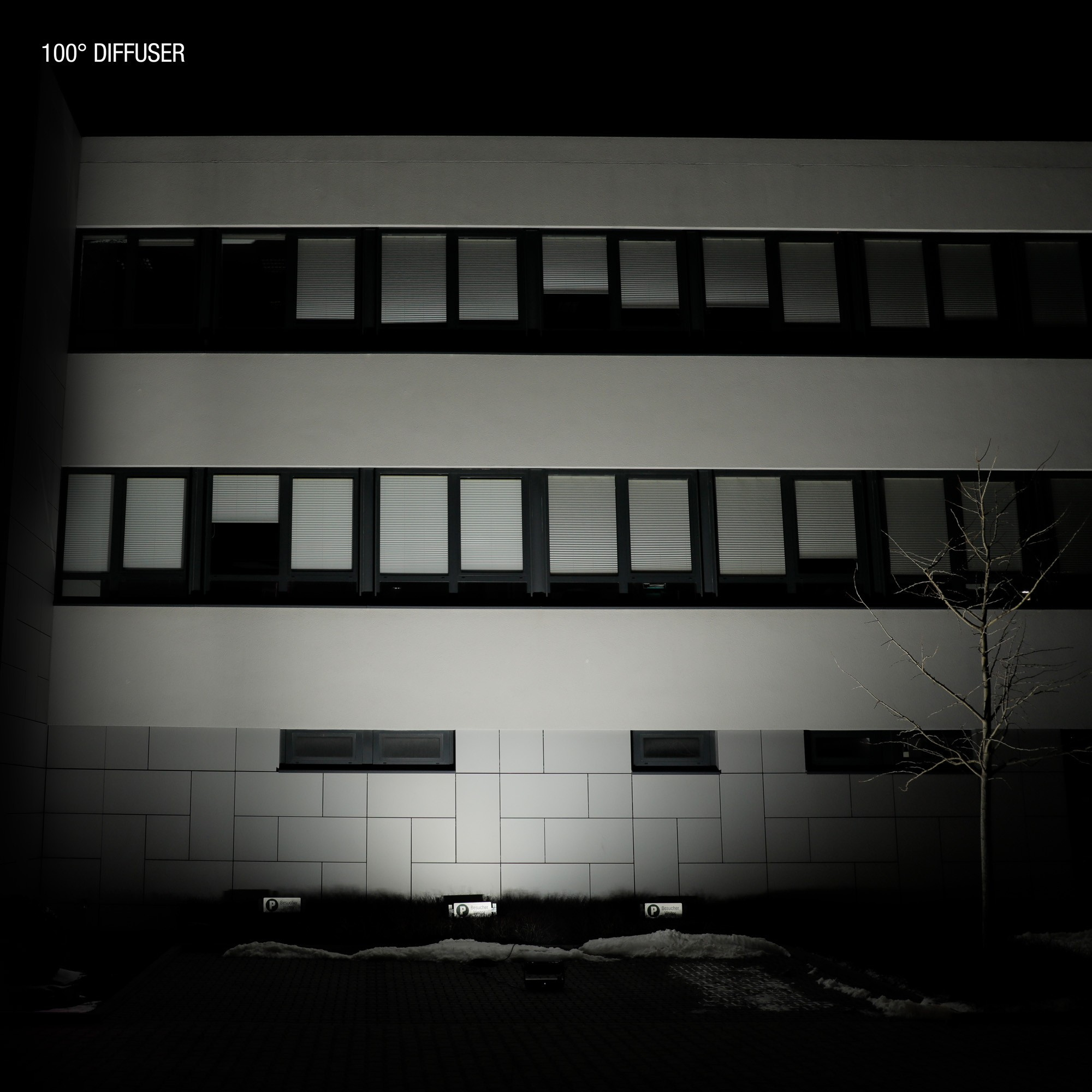

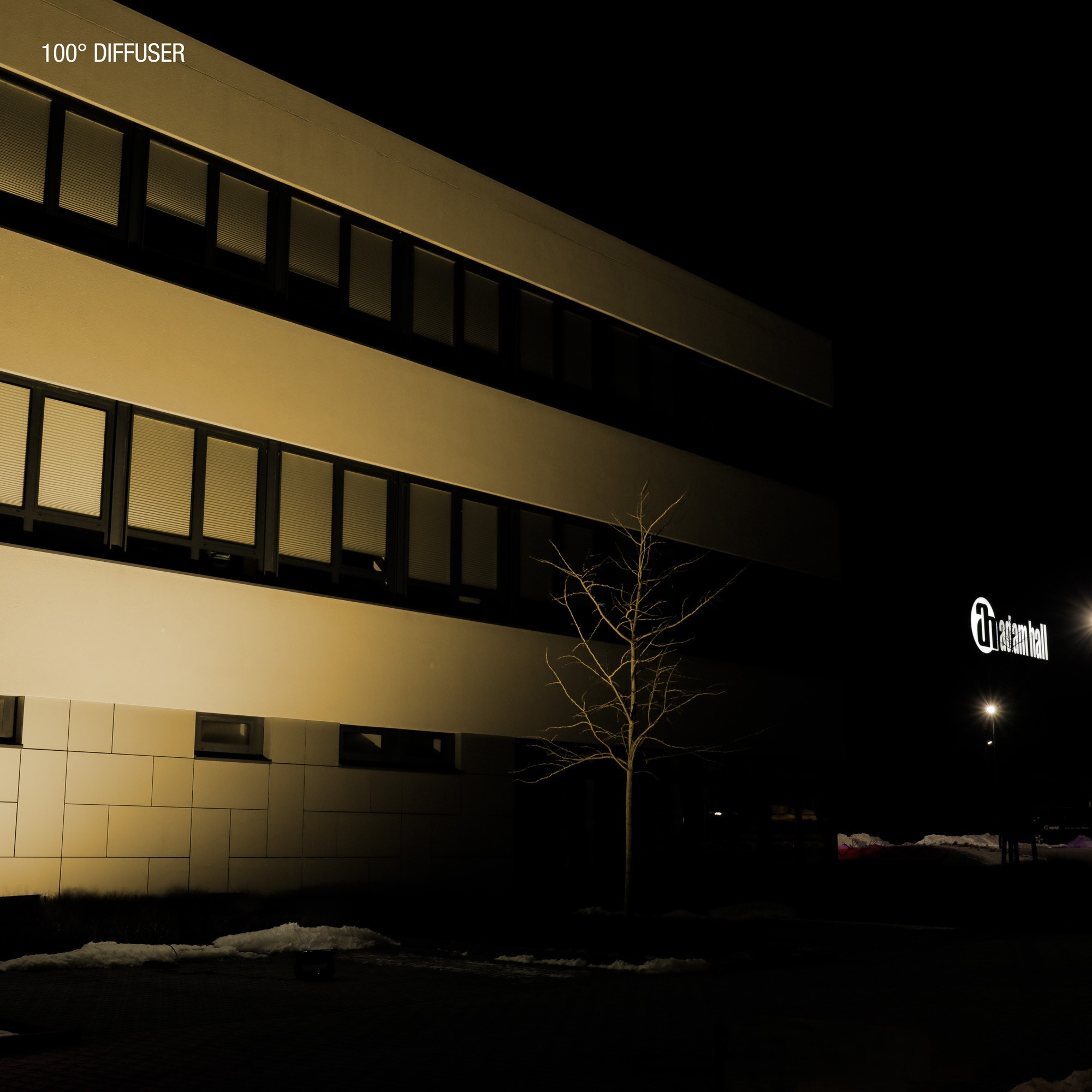

For maximum flexibility, numerous accessories are available for the ZENIT® W600 TW. A variety of symmetrical and asymmetrical SnapMag® filter frames can be selected to achieve the desired beam angle. Filter frames with 25°, 45°, 100° or elliptical 60° x 10° and 90° x 10° beam angles are available and, thanks to the patented SnapMag® technology, mounting is done completely without tools.

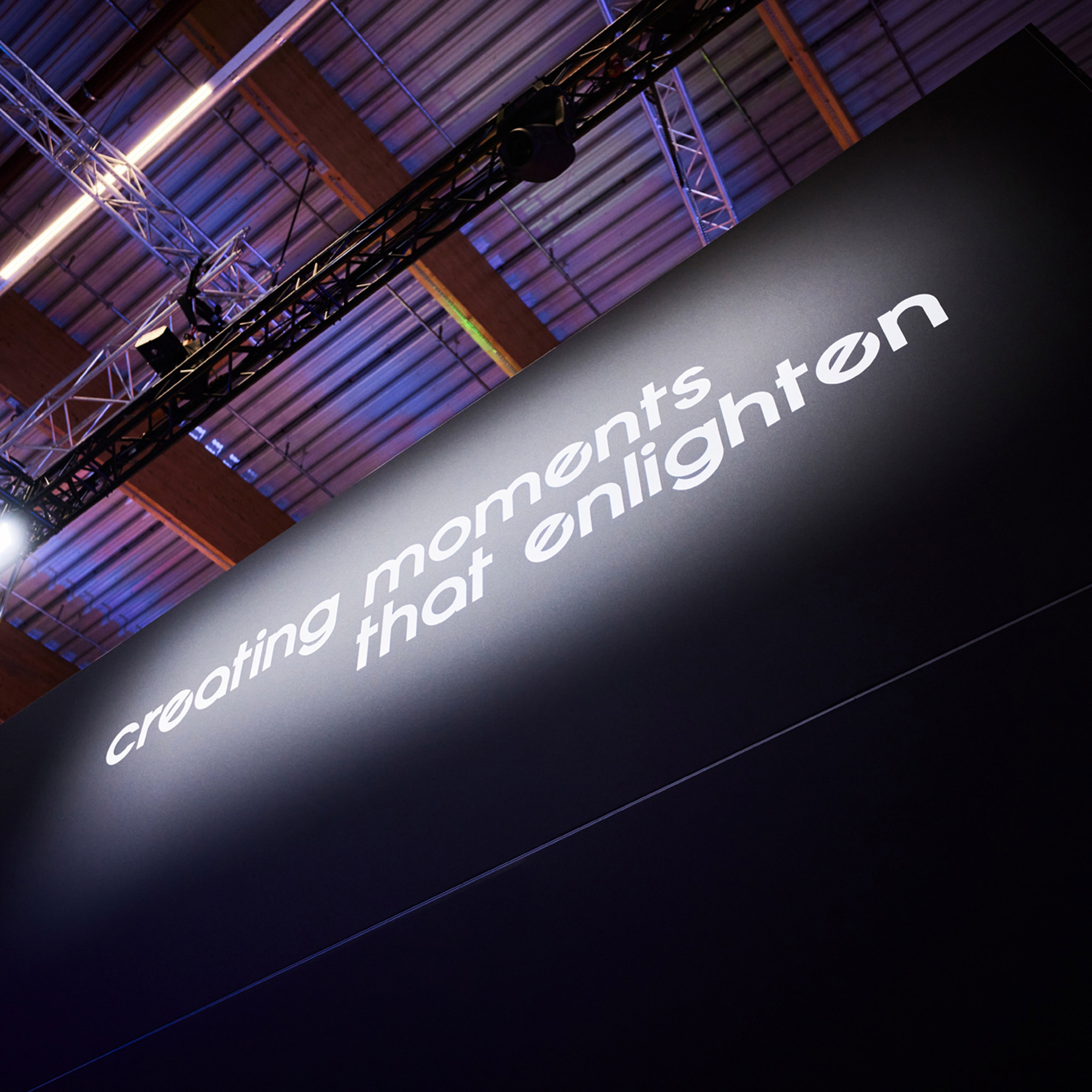

The ZENIT® W600 has already proven its quality on live stages, outdoor events and in the TV sector - with the ZENIT® W600 TW, architects, planners, lighting designers and rental service providers who increasingly work in the field of architectural and trade fair lighting now also benefit from the enormous luminous efficacy, quality and reliability of the Tunable White Washlight.
Specifications:
Product type: LED Outdoor Wash Light
Colour spectrum: Warm White/Cold White
Number of LEDs: 40
LED type: 12 W, 2in1 SMD with collimator lenses
CRI: 93 @ 4000 K
Average LED lifetime: > 20000 hours
Refresh rate: 800 - 25000 Hz, 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz - adjustable Hz

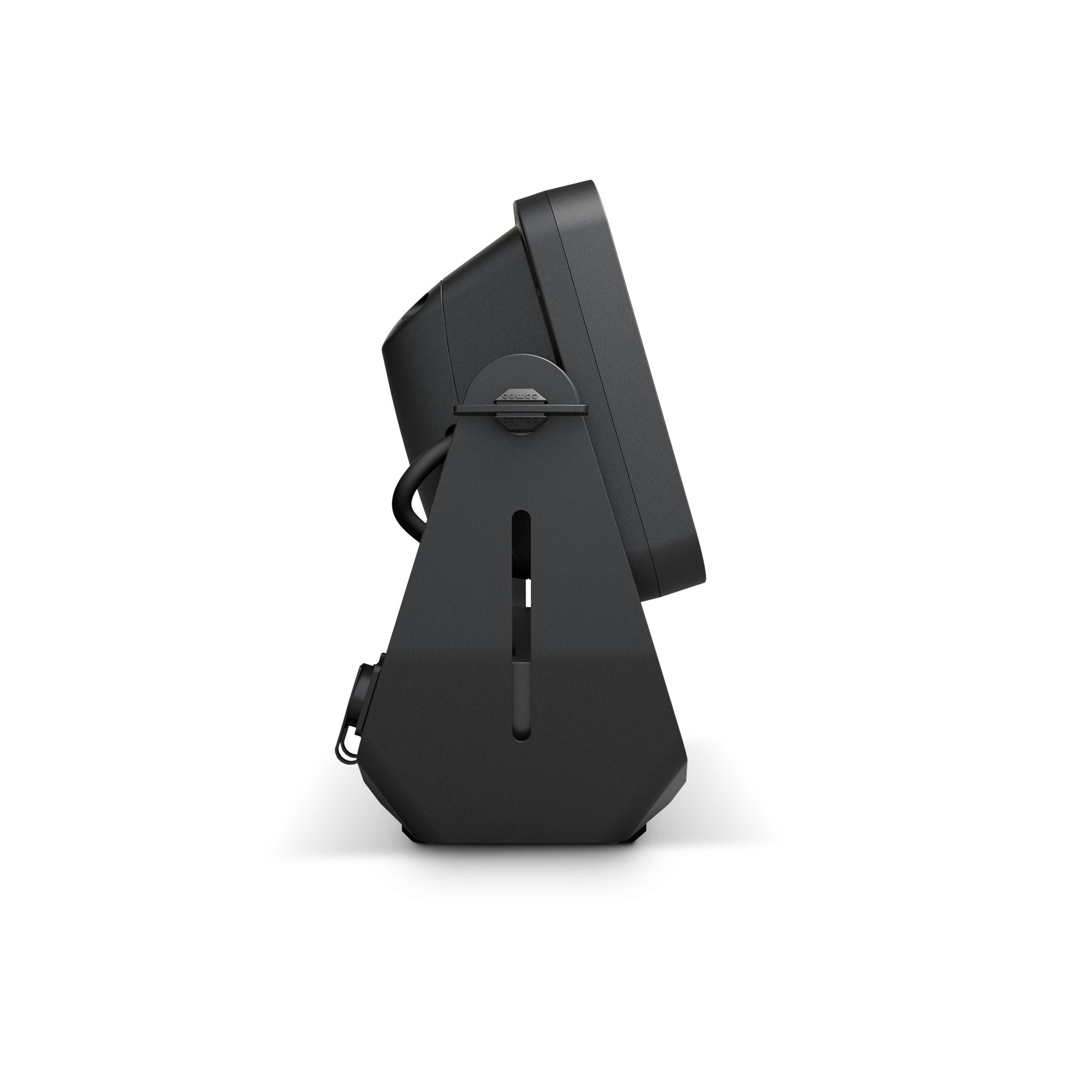

TILT movement: 158° (manuell)
Dispersion: Beam Angle: 18 - Field Angle: 35 °
Lens: PE and tempered glass

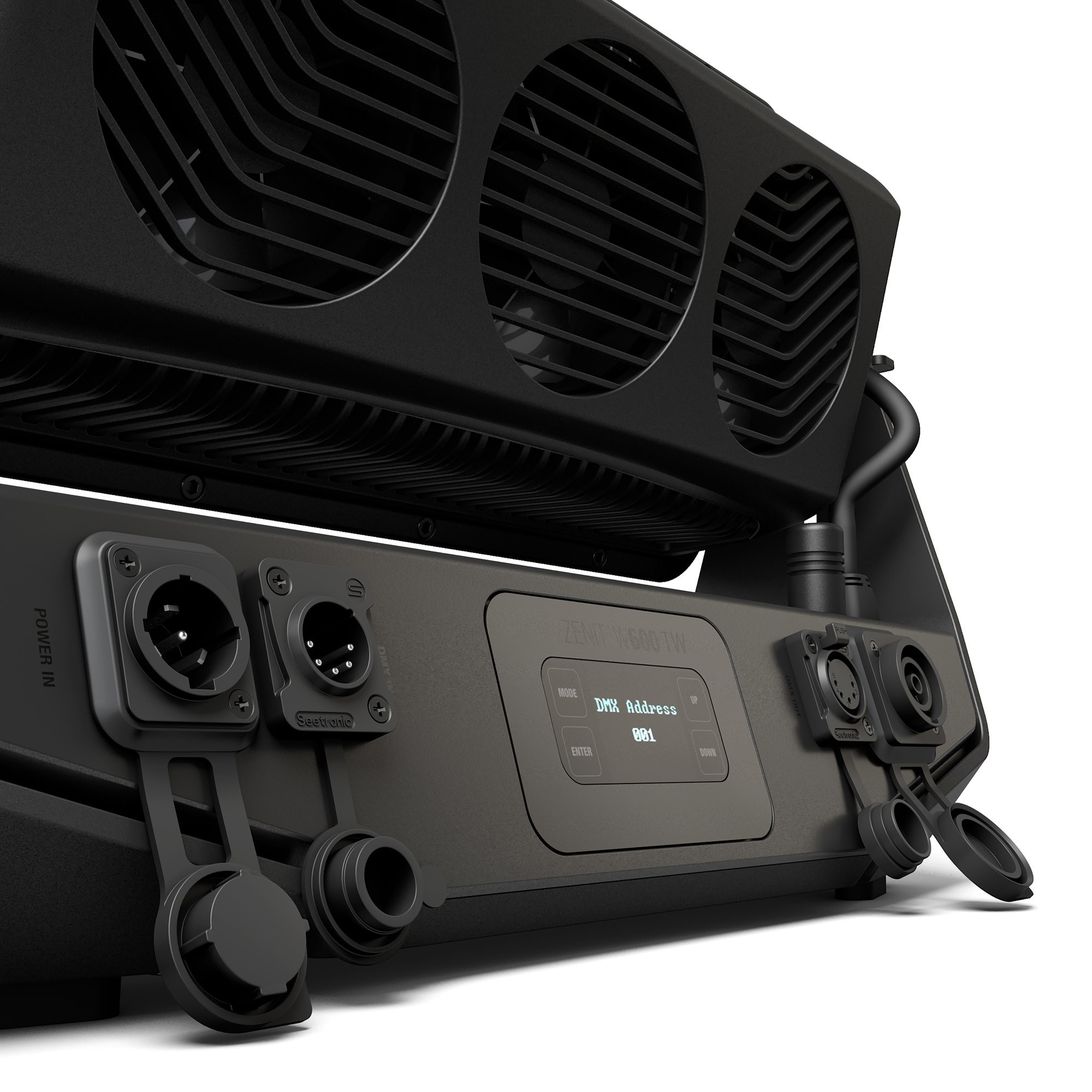

DMX input: XLR 5-pin male IP65
DMX output: XLR 5-pin female IP65
DMX mode: 1-channel, 2-channel 1, 2-channel 2, 3-channel, 4-channel, 7-channel
DMX Functions: CTC (Colour Temperature Correction), Dimmer, Dimmer Fine, Strobe, System settings, Warm White/Cold White
Standalone modes: CTC (Colour Temperature Correction), Dimmer Mode, Strobe, Timer, Warm White/Cold White
System settings: Dimmer Curve, Dimmer Response, Display Illumination, DMX Fail, Factory reset, fan, LED PWM Frequency, Rotate display by 180°
Control: DMX512, RDM, W-DMX
Electrical protection class: 1
Controls: Down, Enter, Mode, Up

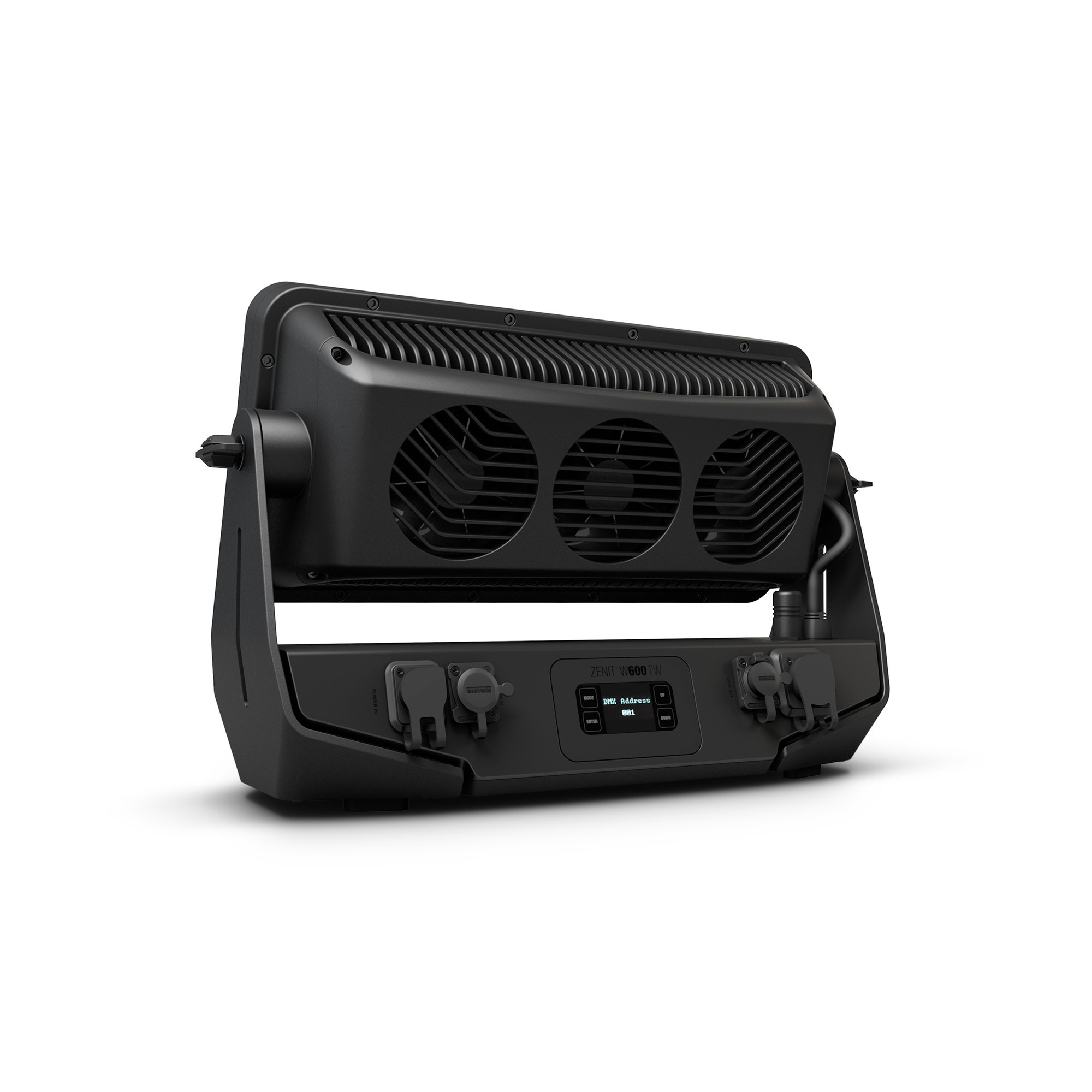

Indicators: OLED Display
Power supply: 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption: 480 W
power factor: 0.95 / 120 V, 0.95 / 230 V
Power supply connector: TrueCon In + Out (Out max. 6A)
Housing material: Die-cast aluminium
Cabinet colour: Black

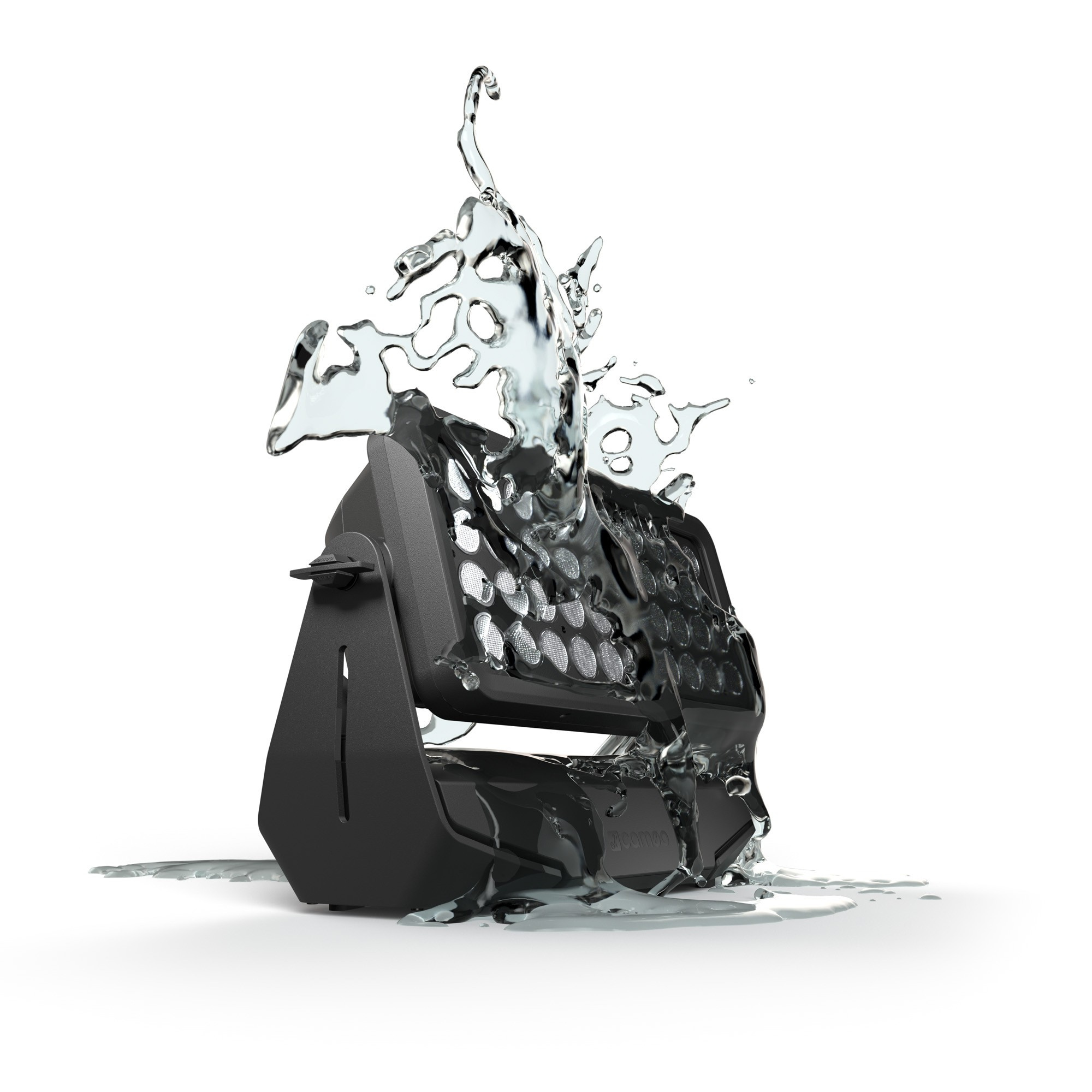

Protection class IP: IP65
Cooling: fan
Luminous flux: 31000 lm
Color temperature: 2600 - 6500 K
Ambient temperature (operating): -15 - 40 °C

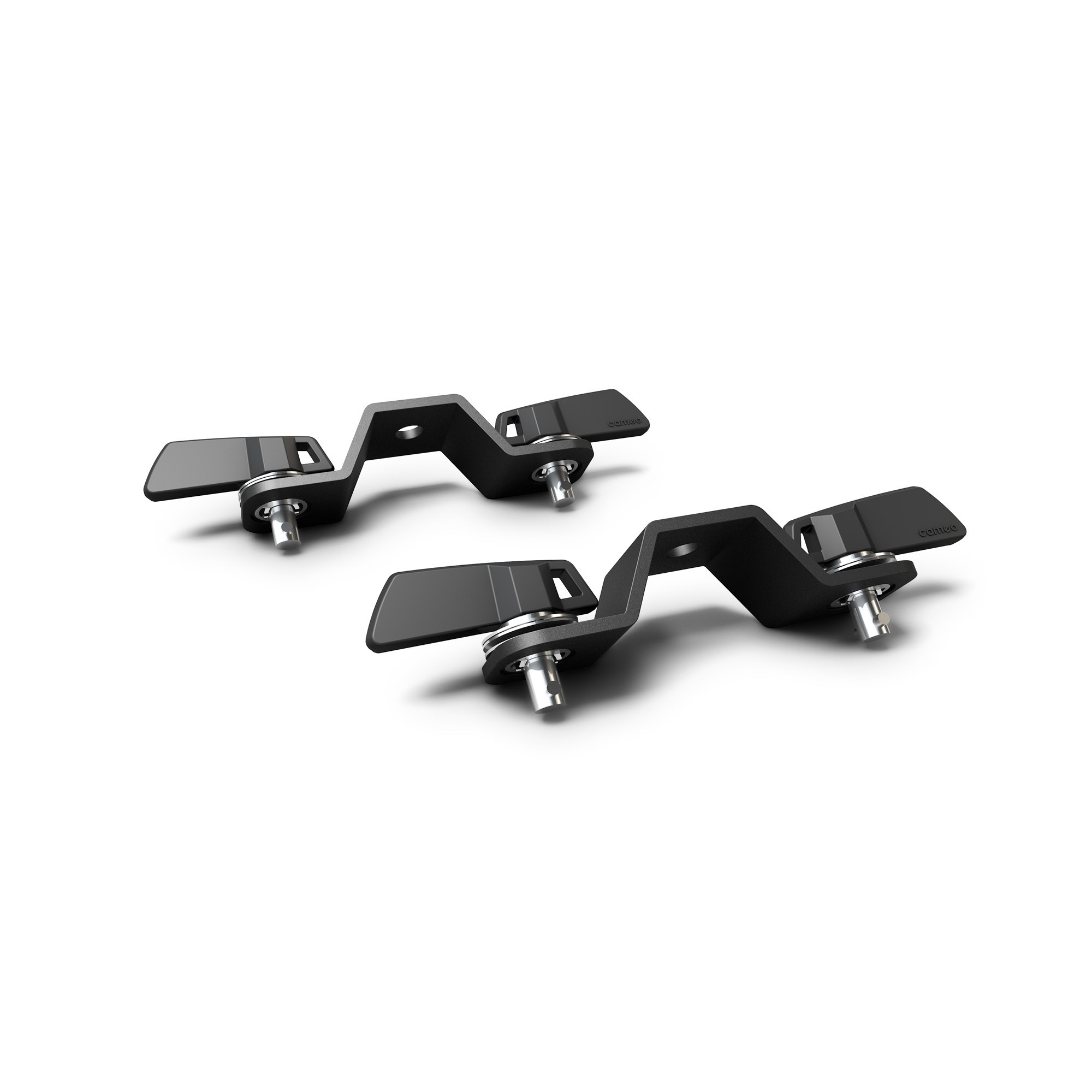

Accessories (included): 2 x omega mounting, Power cord
Width: 463 mm
Depth: 161 mm
Height: 291 mm
Weight: 13 kg
