XVive U7 Saxophone / Trumpet Wireless System

Xvive U7 - a 2.4 GHz wireless system for wind instruments, consisting of a microphone, transmitter, and receiver. It is compatible with saxophone, trumpet, trombone, and other brass wind instruments.

• 2.4 GHz wireless system for wind instruments
• Consists of a microphone, transmitter, and receiver
• Supercardioid microphone
• Compatible with alto, tenor, soprano, and baritone saxophones
• Compatible with trumpet and trombone
• 6 channels
• Coverage range: approximately 27 m indoors
• Latency: under 5 ms
• Sampling frequency: 24-bit / 48 kHz
• Frequency response: 20 Hz – 20 kHz
• Dynamic range: 108 dB
• Maximum microphone SPL: 142 dB
• Microphone sensitivity: -45 dB
• Clip for attachment to the instrument bell
• USB-C charging
• Battery life: up to 5 hours

Specifications:

• Frequency band: 2400 – 2483.5 MHz
• Range: approx. 27 m indoors
• Number of channels: 6
• Latency:
• Sampling frequency: 24-bit / 48 kHz
• Frequency response: 20 Hz – 20 kHz (-3 dB)
• Dynamic range: 108 dB
• Signal-to-noise ratio: 108 dB
• RF sensitivity: -88 dBm
• THD: 0.2%
• RF power: 10 mW E.I.R.P. max.
• Operating temperature: 0°C – 45°C
• Charging: 5 V / 2 A
• Charging time: approx. 2.5 hours

Receiver

• Battery: Li-ion 3.7 V / 860 mA
• Audio output: XLR female, balanced
• Output impedance: 470 Ω at 1 kHz
• Maximum output level: 3.6 Vp-p
• Antenna: 2 × 1/4 wave sleeve dipole, non-removable
• Dimensions: 31 × 29 × 98 mm
• Weight: 92 g

Transmitter and Microphone

• Battery: Li-ion 3.7 V / 720 mA
• Audio input: TRS male 3.5 mm, balanced
• Maximum input level: 3.7 Vp-p
• Phantom power: ±3.3 V
• Microphone: supercardioid
• Sensitivity: -45 dB
• Maximum SPL: 142 dB
• Microphone output: TRS female 3.5 mm, balanced
• Antenna: 1 × 1/4 wave sleeve dipole, non-removable
• Transmitter dimensions: 40 × 29 × 50 mm
• Microphone dimensions: 20 × 28 × 190 mm
• Transmitter weight: 35 g
• Microphone weight: 35 g

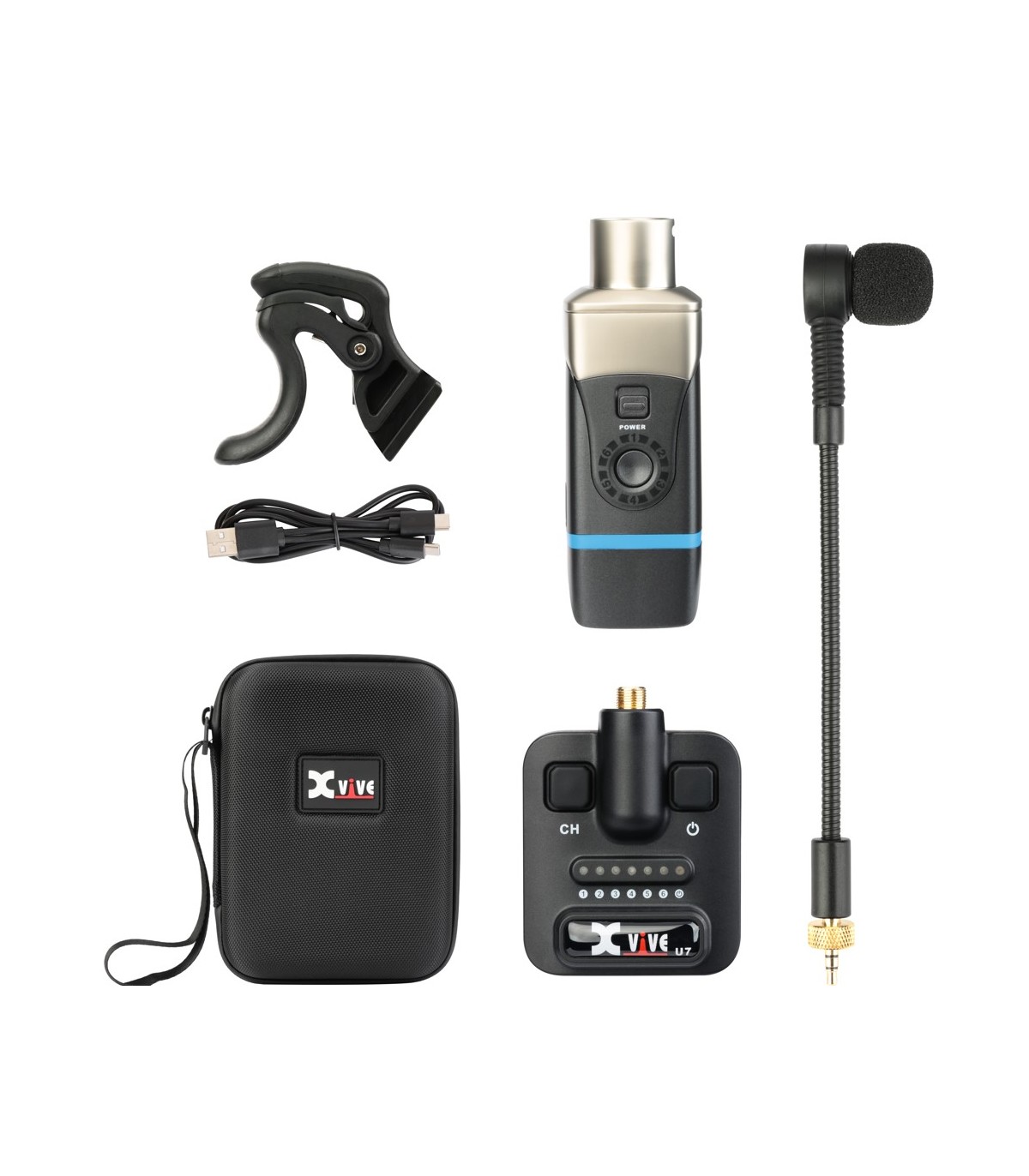

Set contents

• Microphone
• Transmitter
• Receiver
• Dual USB-C charging cable
• Clip
• Windscreen
• Windshield
• Manual
