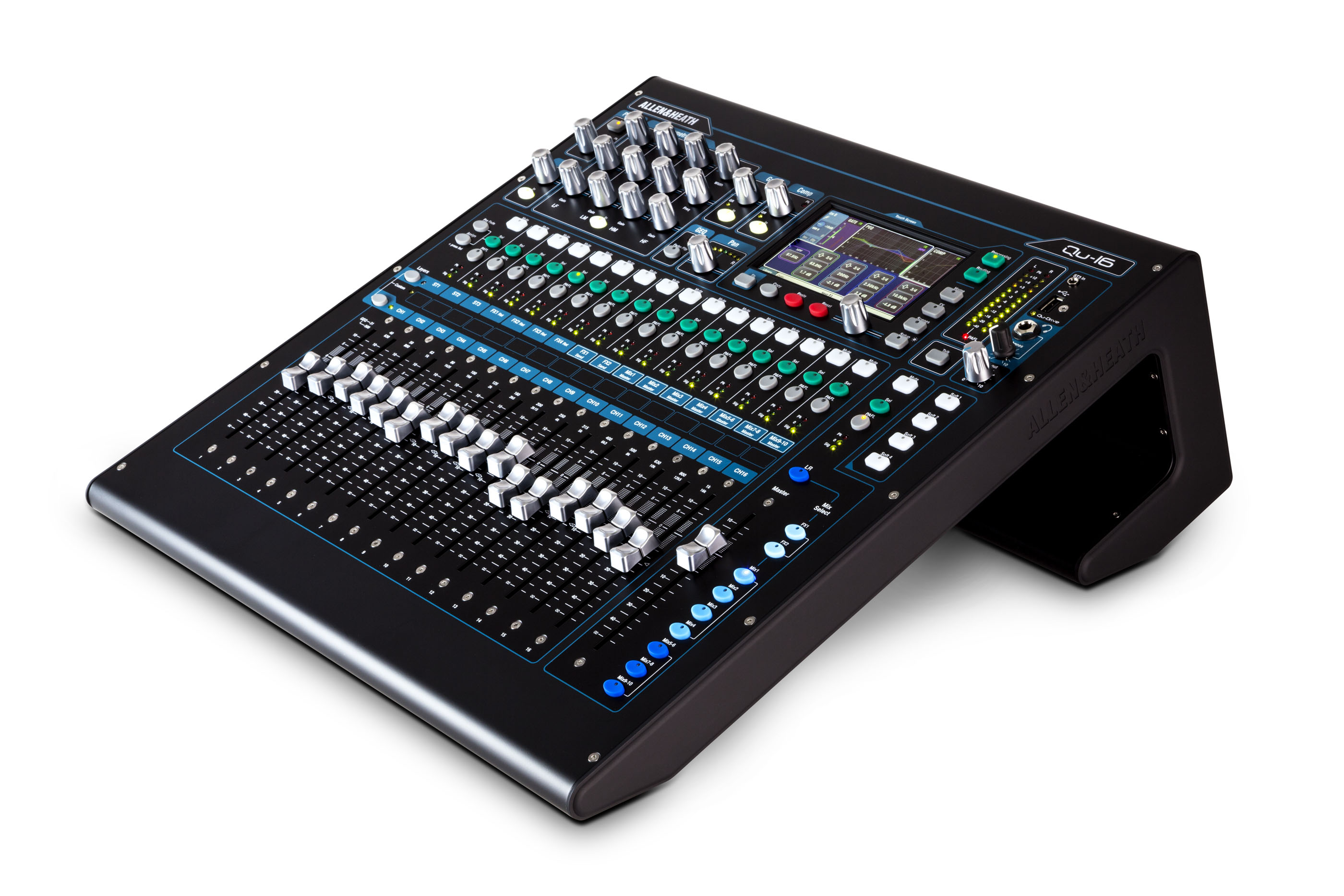

Allen&Heath QU-16 Chrome

Allen&Heath QU-16 - digital mixer for live and studio, which in addition to standard functions offers an Auto Mic Mixing feature, Spectrogram, and additional monitor mix. It features chrome buttons for the potentiometers and faders found in the GLD series.

The new Automatic Microphone Mixer (AMM) helps manage the volumes of multiple microphones simultaneously, ensuring an optimal and balanced volume for each, while reducing background noise and eliminating the possibility of feedback.

The Spectrogram function is very useful for visualising the frequency spectrum, helping to eliminate problematic frequencies and resolve acoustic resonance issues.

Qu v1.8 Chrome offers many more possibilities for monitor mixes, allowing Stereo Groups to be used in Mix mode.

Features and technical specifications:

• 16 mono inputs with AnalogIQ preamps with XLR or jack connectors
• 3 stereo inputs with jack connectors
• 4 Stereo FX returns
• 16 Busses
• 12 Mix outputs: LR, Mono Mix 1-4, Stereo Mix 1-3
• AES digital output
• 4 FX generators with iLive FX effects library
• 4 mute groups
• Motorised faders (linear potentiometers)
• All inputs benefit from: Trim, polarity, low cut, gate, insert, 4-band parametric EQ, compressor, and delay
• Insert, 4-band parametric EQ, graphic EQ, compressor, and delay on main L/R and mono mix outputs
• Qu-Drive: multitrack recording/playback directly to/from USB drive or hard drive
• 800 x 480 touchscreen
• Built-in signal generator
• dSNAKE Remote Audio Port
• USB Audio Streaming
• Compatible with ME Personal Mixing system
• Qu-Pad iPad app
• DAW MIDI control
• Dimensions: 440 x 500 x 186 mm
• Weight: 10 kg
• Firmware interface v1.4 USB works in conjunction with Mac OSX and Windows operating systems.
• Through the QU-16 you can record directly to a USB drive, and then copy WAV files to a computer
