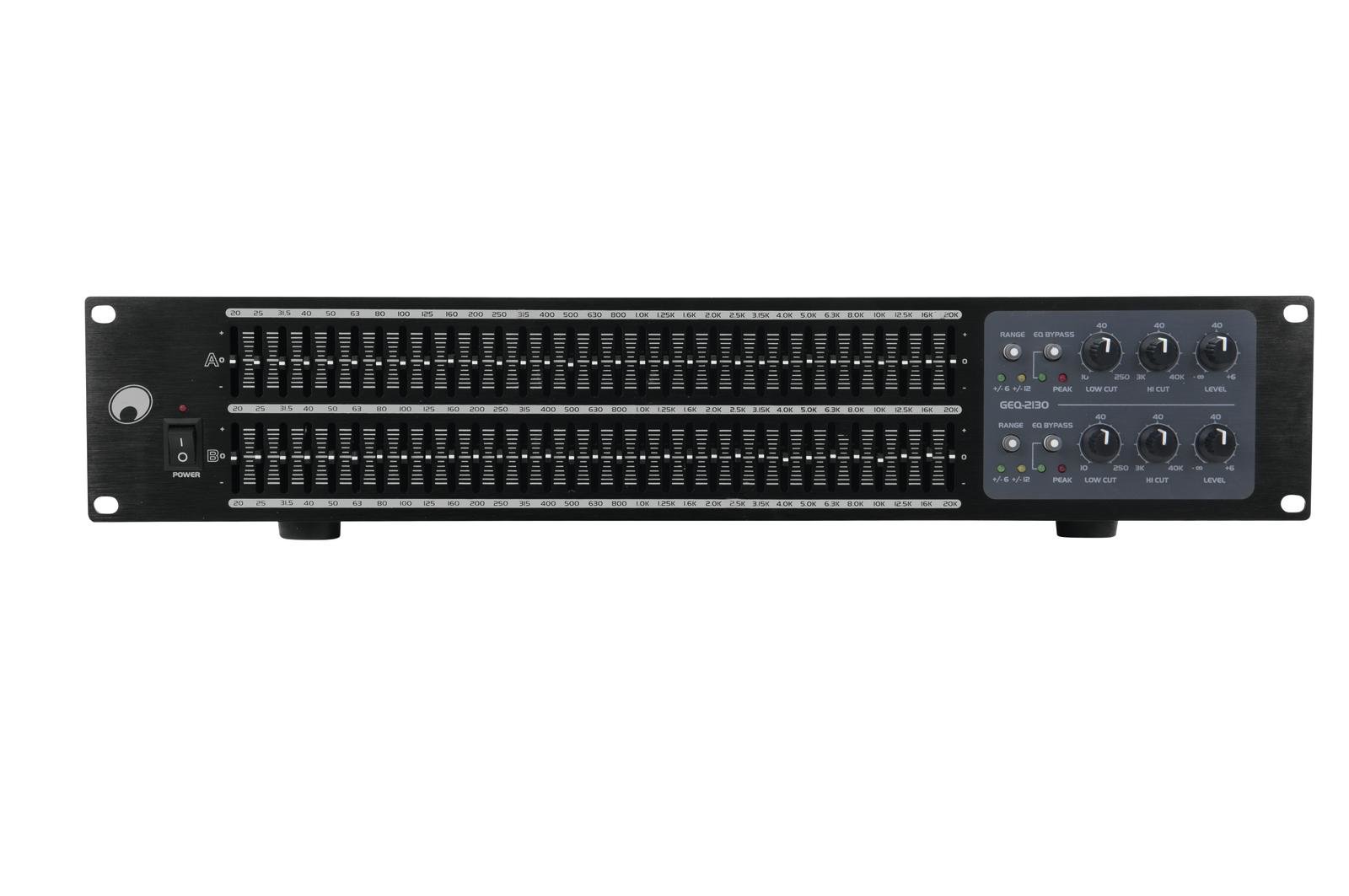

Omnitronic GEQ-2310 Equalizer 2x31-Band

Name: Omnitronic GEQ-2310 Equalizer 2x31-Band
Brand: Omnitronic
SKU: 10355526
Price: 162.42 EUR
Availability: BackOrder

Graphic EQ

162⁴² €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

853 points of loyalty

Shipping 27.00 €

Warranty 24 months

Returns 14 days

request details

Omnitronic GEQ-2310 Equalizer 2x31-Band Add to cart: 162⁴² €

2 x 31-band equalizer

2-channel version, 2 x 31 frequency controls with 1/3 octave steps
Long sliding frequency controls with centre click
Switchable EQ gain from ±6 dB to ±12 dB
Hi Cut (3-40 kHz) and Low Cut (10-250 Hz), adjustable
Separate level control per channel
The bypass switch allows for instant comparison of the original sound with the processed sound
Inputs and outputs via 6.3 mm jack and XLR connectors
(19") 48.3 cm rack installation 2 U

Package contents

Power supply:	230 V AC, 50 Hz
Power consumption:	17 W
Power connection:	Mains input via IEC (M) connector, power cable mounting version with safety plug (supplied)
Frequency range:	20 - 20000 Hz
S/N ratio:	>96 dB
THD:	<0.05 % at 1 kHz
Impedance:	Input: 20 kOhm, balanced. Input: 15 kOhm, unbalanced. Output: 300 kOhm, balanced. Output: 150 kOhm, unbalanced.
Gain:	Output: - ? to + 6 dB
Filter:	Hi cut: 3000 Hz - 40000 Hz; low cut: 250 Hz - 10 Hz
Control range:	±6dB, ±12dB, switchable
Control elements:	Groundlift selector
Status LED:	Clip
Connections:	Input: line via 2 x 3-pin XLR Input: line via connector 2 x 6.3 mm (unbalanced) Output: line via 2 x 3-pin XLR Output: line via connector 2 x 6.3 mm (unbalanced)
Equalizer:	Master: 2 x 31-band graphic equalizer Centre frequency: ISO standard, 1/3 octave (terzband), 20/25/31.5/40/50/63/80/100/125/160/200/250/315/400/500/630/800 Hz, 1/1.25/1.6/2/2.5/3.15/4/5/6.3/8/10/12.5/16/20 kHz
Max. level:	Input: +24 dBu, balanced. Input: +18 dBu, unbalanced. Output: +24 dBu, balanced. Output: +18 dBu, unbalanced.
Material:	Metal
Colour:	Black
Housing design:	(19") 48.3 cm rack installation 2 U
Dimensions:	Width: 48.3 cm Depth: 15 cm Height: 8.9 cm
Weight:	2.92 kg

Product code: 10355526

Unit of sale: piece
