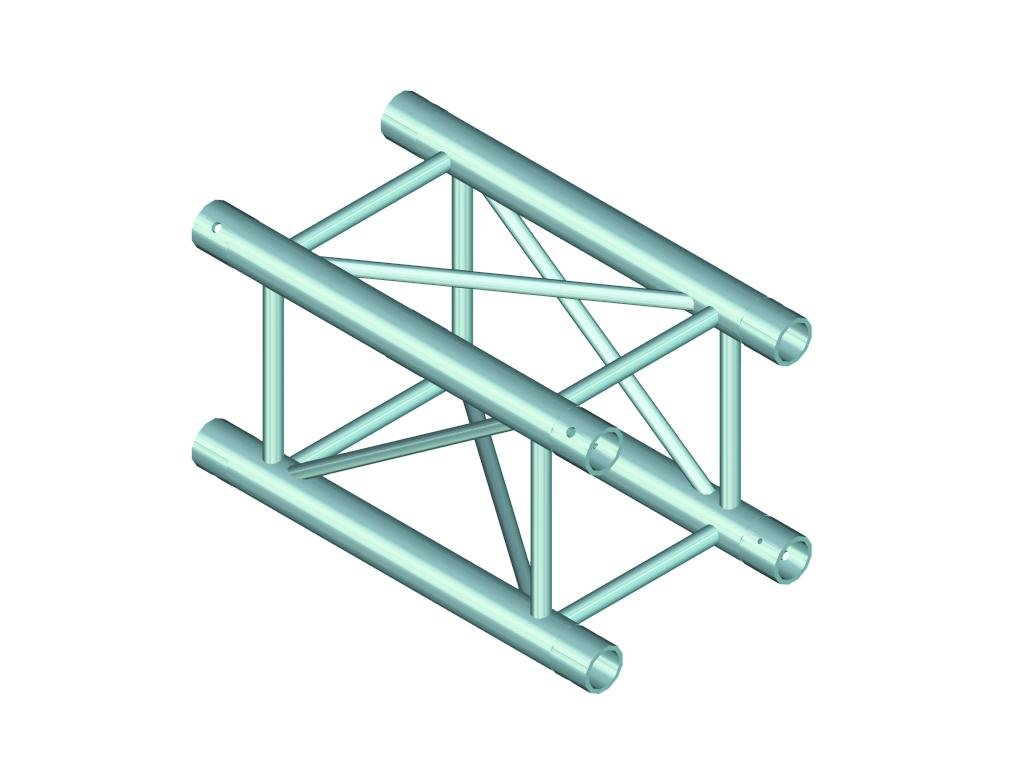

Alutruss TowerTruss TQTR-1000

Truss

4-point truss system made from durable aluminium.
connected by four cones, pins, and bolts for stability.
constructed from EN-AW 6082 T6 alloy for high load capacity.
main tubes of 50 mm diameter with 4 mm wall thickness.
dimensions: 1 m length, 29 cm width, 29 cm depth; weighs 9.95 kg.

321⁴³ €

On order – delivery date confirmed after ordering Request details

Add to cart

1715 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Alutruss TowerTruss TQTR-1000 Add to cart: 321⁴³ €

Alutruss TowerTruss TQTR-1000 - Is a 4-point truss system made of aluminium. The individual elements are connected by four cones, pins, and bolts. The TOWERTRUSS TQTR is made from EN-AW 6082 T6 (AlMgSi1 T6) alloy with 20 mm braces for high loads. The four main tubes are made of 50 mm aluminium tube with a wall thickness of 4 mm and provide a good balance between strength and weight.

Trusspipe: 50 mm x 4 mm
Welding technique: TIG welding
Welding material: AlMg 5
Alloy: AlMgSi 0.5
Diameter x thickness: 20 x 2mm
Dimensions:
- Length: 1 m
- Width: 29 cm
- Depth: 29 cm
Weight: 9.95 kg

Product code: 60304410

Unit of sale: piece
