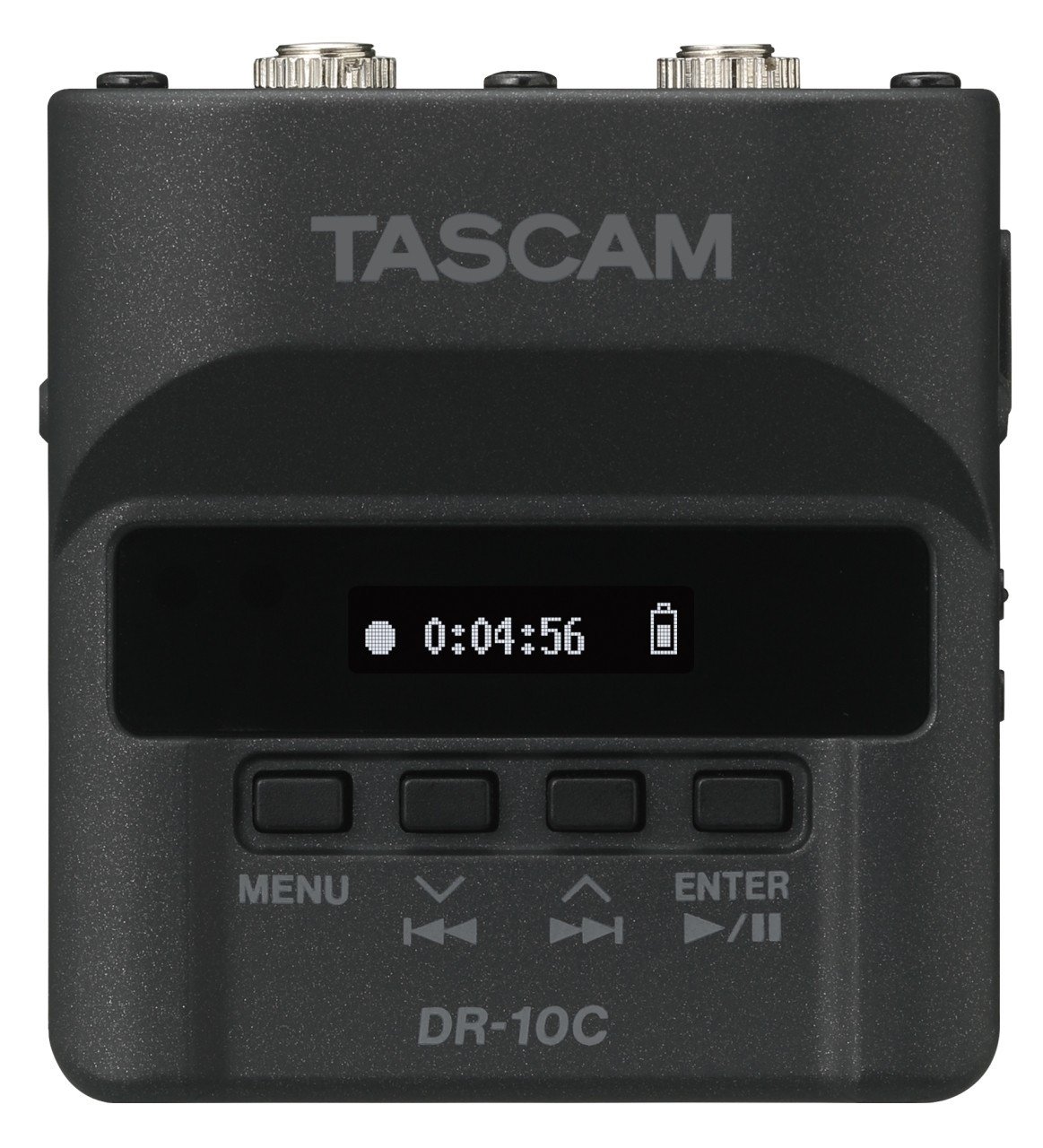

Tascam DR-10CS

PCM recorder for lavalier microphones/wireless systems Sennheiser.

Storage

• microSD card (64 MB - 2 GB)
• microSDHC card (4 - 32 GB)

Recording/Playback Format

• WAV format, 44.1/48 kHz, 16/24 bits, mono/poly
• MP3 format, 44.1/48 kHz, 128/192 kbit/s (recording) 32-320 kbit/s (playback)

Inputs and Outputs:

• Analog input (microphone): 3.5-mm mini TRS jack
• Maximum input level: -12 dBV
• Minimum input level: -53 dBV
• Microphone input gain: 10 dB to 35 dB
• Input impedance: 33 kOhm or higher

Analog Output

• 3.5-mm mini TRS jack

Audio Performance:

• Frequency response: 20 Hz - 22 kHz, +1/-3 dB
• Distortion: 0.05 %
• Signal-to-noise ratio: 88 dB or higher

• Power supply: 1 AAA battery or USB
• Power consumption: 0.45 W (maximum)
• Operating temperature range: 0-40 °C
• Dimensions: 52 x 56 x 25 mm
• Weight: 63 g (with battery), 51 g (without battery)
