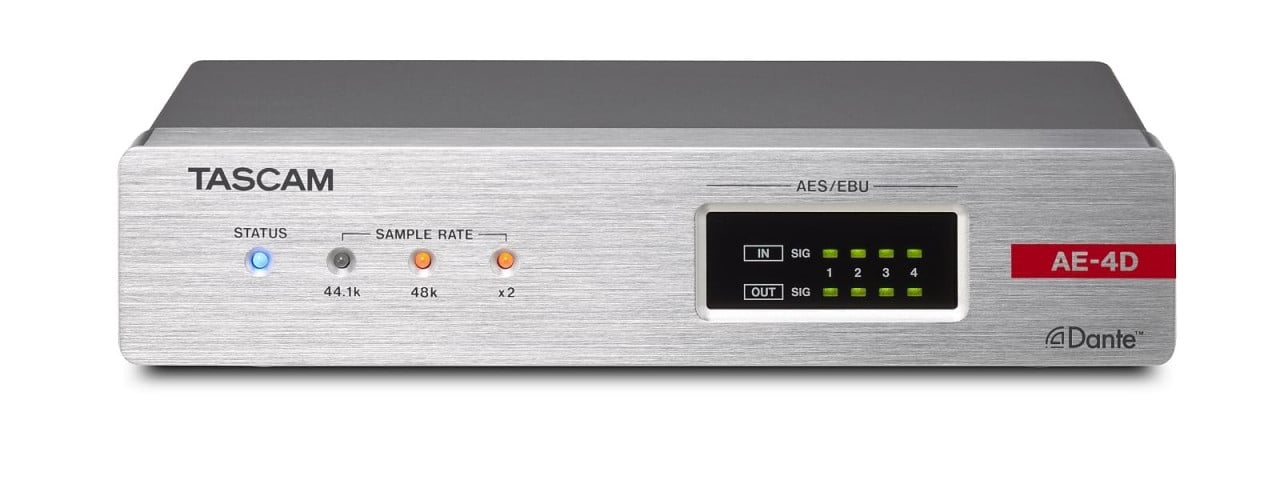

Tascam AE-4D

AD/DA converter with AES/EBU inputs and outputs, Dante converter, and integrated DSP mixer.

Technical specifications:

Formats and channels:

• 44.1/48kHz, 16/24-bit, 4 channels
• 88.2/96kHz, 16/24-bit, 2 channels

Input / Output:

DATA/DATA+PoE

• Connector: RJ-45
• Protocol: Dante
• Gigabit Ethernet: 1000BASE-T (IEEE 802.3ab)
• Cables: 5e or STP cables

Digital Input (AES/EBU):

• Connector: XLR-3-31
• Input impedance: 110 Ohm
• Format: AES3-2003/IEC60958-4 (AES/EBU)
• Sampling frequencies: 32 kHz - 192 kHz

Digital Output: (AES/EBU):

• Connector: XLR-3-32
• Output impedance: 110 Ohm
• Format: AES3-2003/IEC60958-4 (AES/EBU)
• Sampling frequencies: 44.1, 48, 88.2 and 96 kHz

• Power supply: PoE class 0 TASCAM PS-P1220E AC adapter (sold separately)
• Power consumption: 3W
• Dimensions: 214 x 44.45 x 136.1 mm
• Weight: 795 g
• Operating temperature range: 0°C-40°C

Included accessories:

• Mounting bracket
• User manual
