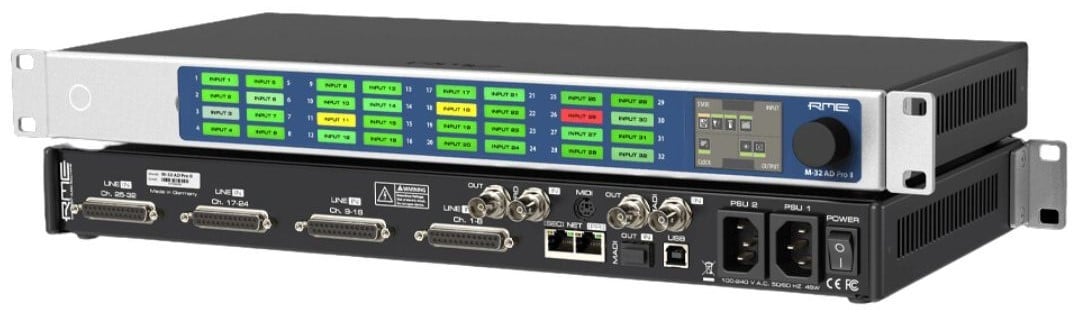

RME M-32 AD Pro II-D

M-32 AD Pro II-D is a 32-channel AD converter, 192 kHz, MADI (128 x 128) and Dante connection (64 x 64).

• 32 x Analog Input/Output (25-pin D-sub, up to +24 dBu)
• 2 x MADI I/O
• 2 x RJ45 for Dante network connectivity (up to 64 channels)
• (optional) MIDI I/O for MIDI control
• Word Clock Input/Output (BNC)
• USB 2.0 (for remote control)
• 2 x Internal power supplies
• 32-channel AD converter, fully symmetrical design, 120 dBa
• 19" rack mount, 1U height
• Three-colour illuminated channel indicators with Peak/RMS display
• Magnetic cover with customisable channel labels
• SyncCheck® and ICC® - detects when a clock source is not synchronised and automatically switches to other available signals
• MADI Auto-Input - No interruptions
• 2" display with button for complete device control
• Storage of 15 presets
• Remote control via HTTP, JSON, MIDI over MADI and optional MIDI

M-32 Pro II-D AD Line Input 1-32:

• Resolution: 24 bits
• Switchable input level per channel +24 dBu, +19 dBu, +13 dBu @ 0 dBFS
• AC-coupled inputs, fully symmetrical signal path (servo-balanced)
• Signal-to-noise ratio (SNR) @ +24 dBu, 44.1 kHz: 117.0 dB RMS unweighted, 120.7 dBA
• Signal-to-noise ratio (SNR) @ +19 dBu: 116.3 dB RMS unweighted, 119.9 dBA
• Signal-to-noise ratio (SNR) @ +13 dBu: 114.7 dB RMS unweighted, 118.3 dBA
• Frequency response @ 44.1 kHz, -0.1 dB: 5 Hz - 20.5 kHz
• Total harmonic distortion (THD) @ -1 dBFS: < -111 dB, < 0.00029%
• Total harmonic distortion and noise (THD+N) @ -1 dBFS: < -108 dB, < 0.00039%
• Channel separation: > 110 dB
