RME ADI-6432R

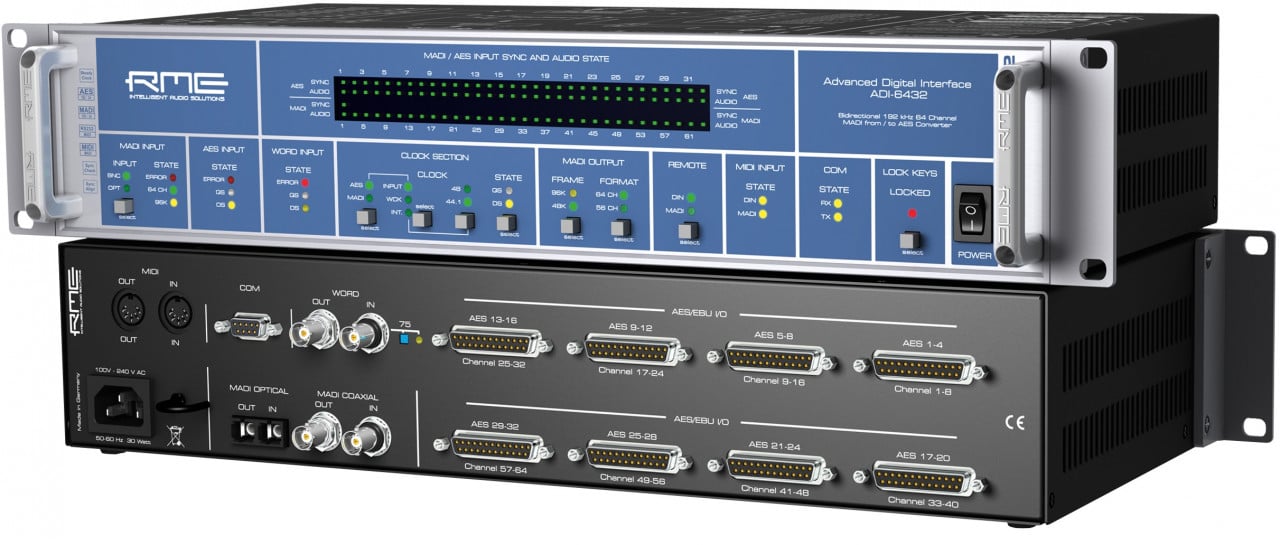

RME ADI-6432 - Bidirectional digital converter MADI/AES that transforms all 64 channels from a single MADI into 32 AES/EBU ports and vice versa. At 64 channels, we have a sample rate of 48 kHz, at 32 channels 96 kHz, and at 16 channels 192 kHz. When connected to the HDSP (e) MADI interface, the ADI-6432 becomes a powerful AES/EBU interface with 32 external ports. Two units will create a perfect multi-core digital solution without the need for a computer.

Typical applications for the ADI-6432 include 2 units used as a multi-core, or a single unit used for the Hammerfall DSP MADI PCI card. The 2U rack size provides ample space for connectors and control elements.

Specifications:

• -MADI input: 1 x BNC, 1 x optical
• -AES/EBU input: 32 x, 4 x per D-sub connector
• -Word clock input: BNC
• -Word clock output: BNC
• -MIDI input and output
• -Sync sources: MADI, AES, word clock, internal
• -Dimensions: 483 x 88 x 200 mm
