Wharfedale Pro SIGMA-XV9

Name: Wharfedale Pro SIGMA-XV9
Brand: Wharfedale Pro
SKU: WP-157101-00A
Price: 523.57 EUR
Availability: BackOrder

Sound Column

passive 2-way system with 9 x 3" drivers and 2 x 1" high-frequency drivers.
frequency response of 130 Hz – 20 KHz, sensitivity of 97 dB.
maximum sound pressure level of 128 dB, ideal for installations.
360 W RMS power handling, with a peak power of 1440 W.
compact dimensions: 126 x 1210 x 145 mm, weight of 10.1 kg.

Variants:

523⁵⁷ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

2772 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Wharfedale Pro SIGMA-XV9 Add to cart: 523⁵⁷ €

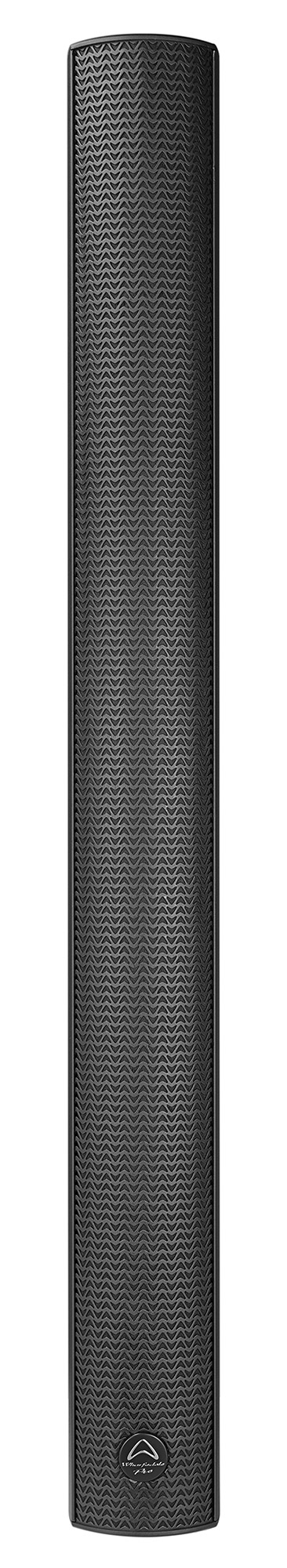

Wharfedale Pro Sigma-XV9, passive speaker for installations, vertical array system with 9 x 3" drivers and 2 x 1" high-frequency drivers with Evo-Fold waveguide. This mini EVO-Fold design provides consistent dispersion coverage both horizontally and vertically, with sound radiating from a single, singular, and coherent source.

2-way passive system
frequency response:
- +/-3 dB: 130 Hz – 18 KHz
- -10 dB: 120 Hz – 20 KHz
sensitivity: 97 dB
maximum sound pressure level: 128 dB
system impedance: 4 Ohms
LF drivers:
- 9 x 75 mm / 3"
- 33 mm / 1.3" voice coils
HF drivers:
- 2 x 1" drivers
- 25.4 mm / 1" voice coils
- exit diameter: 25.4 mm / 1"
- PEI diaphragm
- Mini EVO-Fold waveguide
coverage: 120° x 20°
power handling:
- 360 W RMS
- 720 W program
- 1440 W peak
crossover frequency: 2.5 KHz
connections:
- 1 x speakON
- 1 x terminal block
U-mount bracket included
aluminium cabinet
dimensions: 126 x 1210 x 145 mm
weight: 10.1 kg
