RME DTOX-32

Preamplifier / AD Converter

extension for multichannel digital interfaces with professional rack-mounted system.
includes two sets of D-sub to 4 x XLR male and 4 x XLR female.
compatible with TASCAM (RME) and Yamaha pinouts.
detachable rack mounting brackets for front or back installation.
technical specs: 8 x XLR output, 8 x XLR input, 2 x D-sub 25-pin connectors.

335⁸⁶ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

1713 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

RME DTOX-32 Add to cart: 335⁸⁶ €

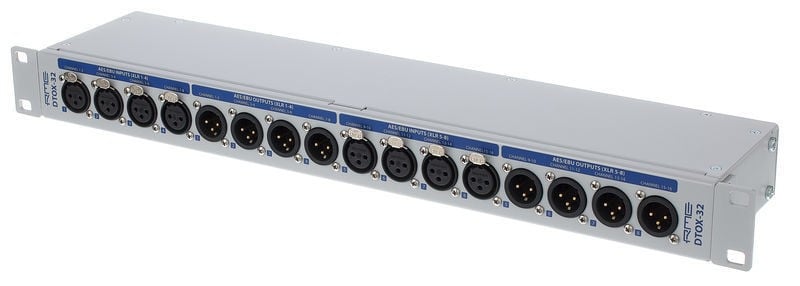

DTOX-32 is an extension for multichannel digital interfaces. It includes two sets of D-sub to 4 x XLR male and 4 x XLR female each, replacing common D-sub to XLR cables with a professional, stable rack-mounted system.

DTOX-32 (also, DTOX-16) has detachable rack mounting brackets and can be mounted at the front or back.

DTOX-32 is compatible with pinouts for TASCAM (RME) and Yamaha formats.
RACK MOUNT
There are two selectable pinout standards for the DTOX-32's 25-pin D-sub connectors:
TASCAM compatible
YAMAHA compatible.

If not specifically ordered, DTOX-32 is set to TASCAM (RME) by default.

The respective format is changed by an internal connector inside the panel. To change the format, it is necessary to open the case with a medium-sized Phillips screwdriver (size PH-2).

Technical specifications:

8 x XLR output
8 x XLR input
2 x D-sub 25-pin connectors
Supports RME (TASCAM) and Yamaha formats (internal switchable pinout)
19" Rack

Product code: ZD-042602

Unit of sale: piece
