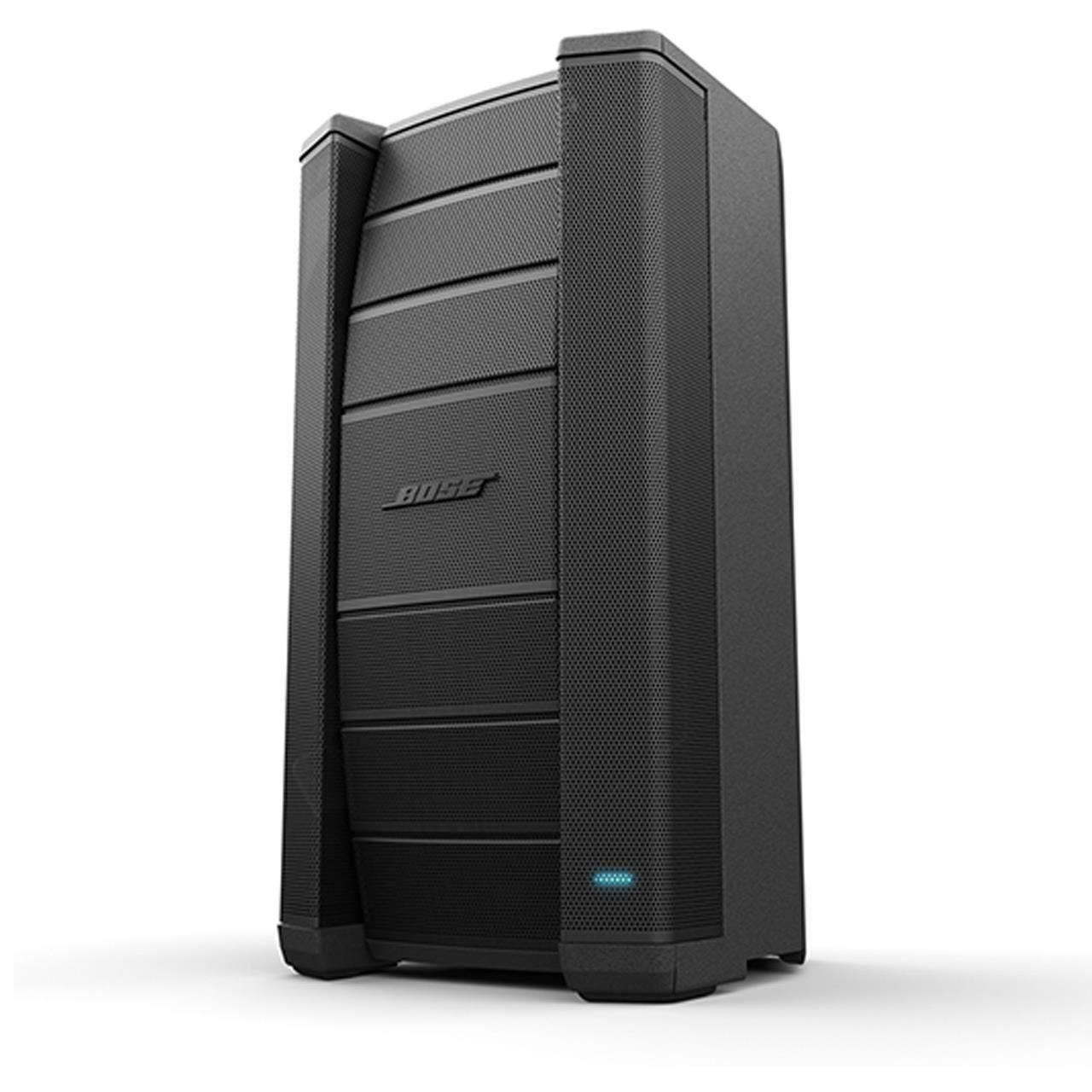

Bose F1 Model 812

Bose F1 Model 812, active vertical line array speaker, allows for various vertical coverage patterns through the movement of the high/mid modules, and the system automatically adjusts its equalisation to maintain optimal tonal balance for each coverage pattern. The FLEX array technology features 4 predefined coverage patterns, “Straight”, “C”, “J” or “Inverted J” which enable multiple applications. Whether you are performing from floor level, on stage, or in front of an audience on a sloped surface like an amphitheatre or sports stands, you can now adapt your system to fit the room.

• 1 x 12” woofer
• 8 x 2.25” high/mid drivers
• 1000W amplification
• 2 input channels with independent volume control
• Switch for line or microphone level on Channel 1
• Frequency range:
  • at -3 dB: 52 Hz - 15.5 kHz
  • at -10 dB: 43 Hz - 20 kHz
• Standard coverage: 100° horizontal x 40° vertical (position C)
• Maximum sound pressure level: 132 dB SPL
• Cabinet made of high-impact composite material
• Dimensions H x W x D: 66.46 x 33.43 x 37.25 cm
• Weight: 20.18 kg
