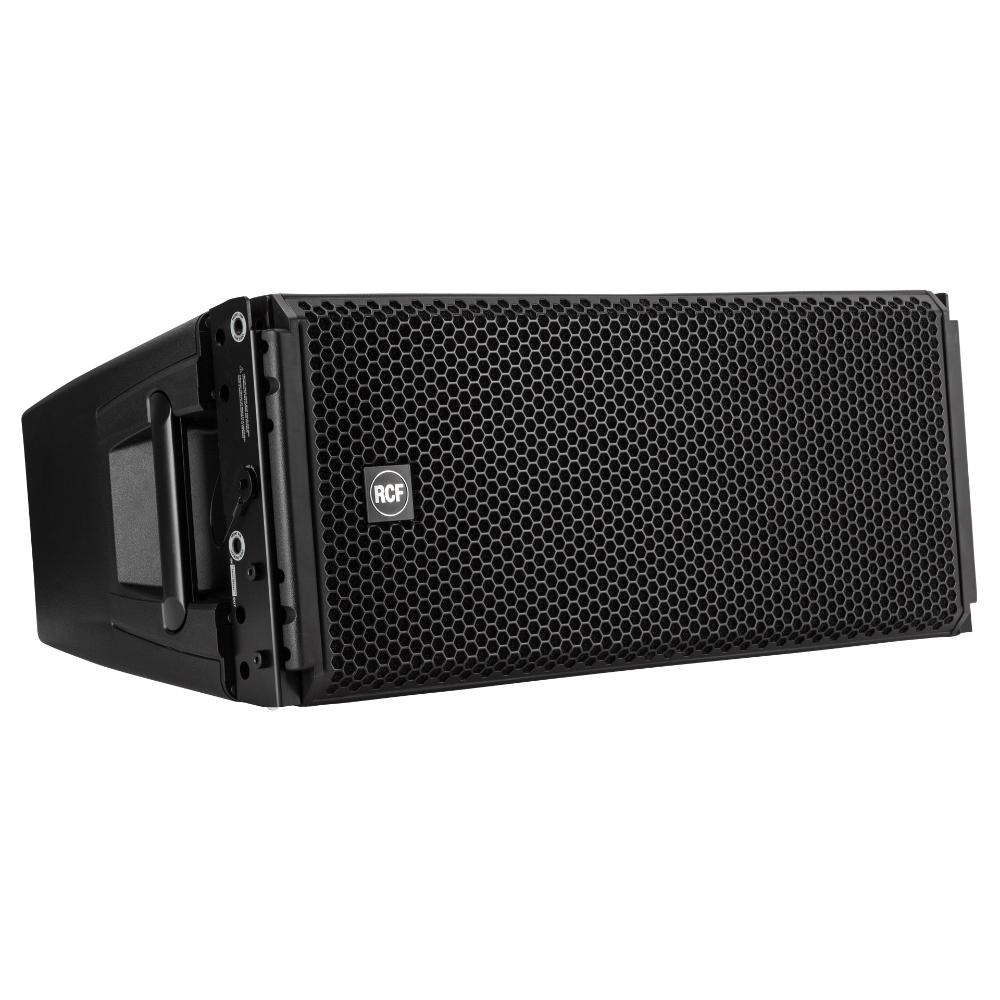

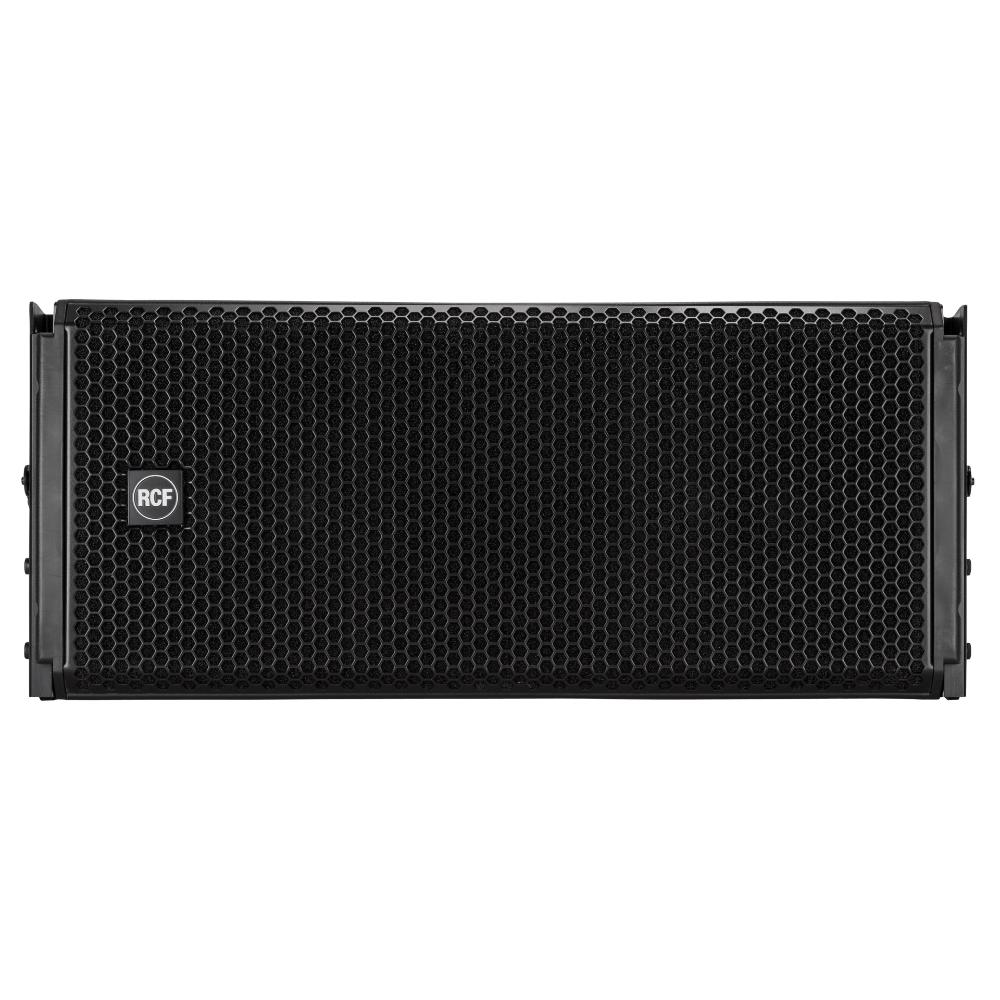

RCF HDL 30-A


Active Line-Array Module

  • 2200 W power with dual-channel amplifier for high performance.
  • maximum SPL of 137 dB, ideal for medium to large events.
  • 32-bit DSP processing at 48 kHz for superior sound quality.
  • features exclusive FiRPHASE technology for coherent sound.
  • lightweight design for easy handling and transport.
RCF
3 67471
Currently unavailable. Request details
Central warehouse: 0
Add to cart
19030 points of loyalty
Shipping free
Warranty 24 months
Returns 14 days

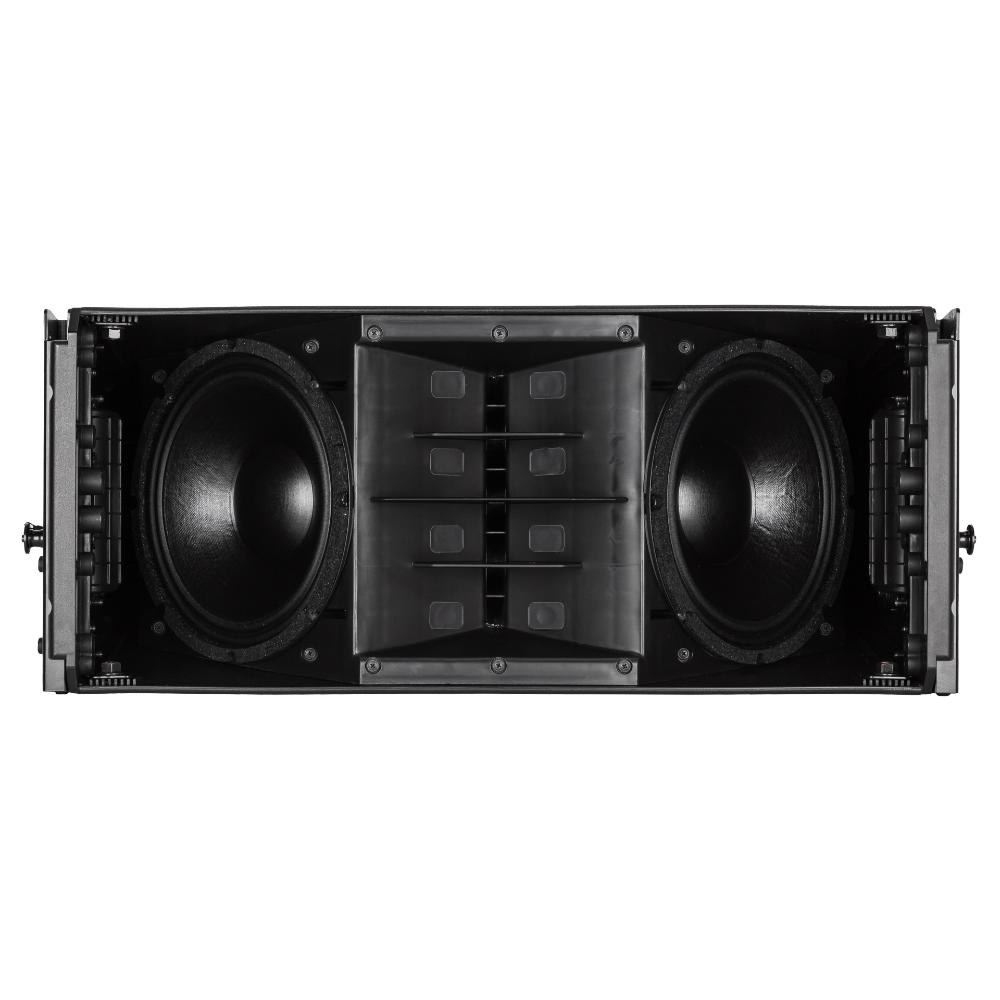

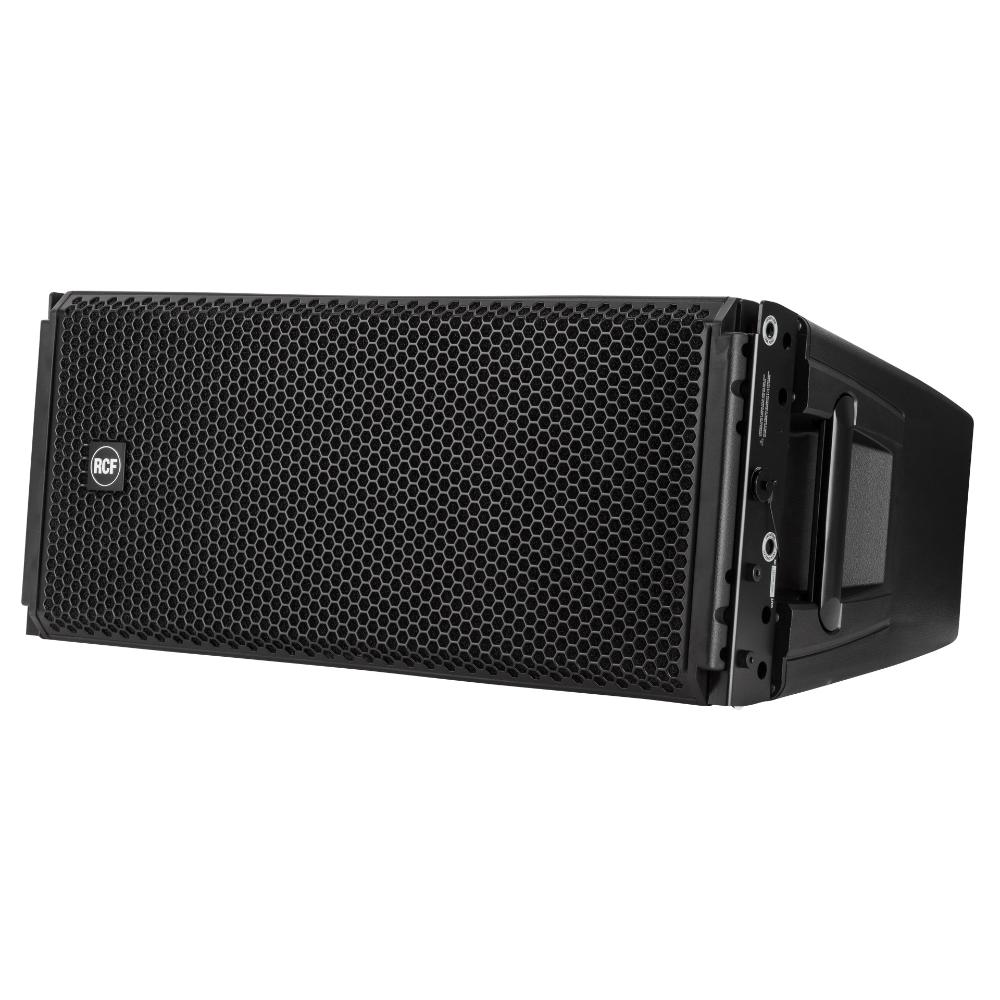

RCF HDL 30-A - a compact bi-amplified active system for medium to large events, both indoors and outdoors. It features two 10-inch woofers and an impressive 4-inch titanium compression driver. The coherent waveguide is the result of extensive research and design. The HDL 30-A is the first line array in a composite cabinet with zero-degree phase and ultra-linear amplitude response. The built-in 2200 W Class D amplifier provides excellent playback clarity and up to 137 dB max SPL. The RCF HDL30 -A is equipped with next-generation RCF transducers with neodymium magnets. Considering its acoustic power, it has a remarkably low weight for easy handling.

Features:

  • 2200 W power, dual-channel amplifier
  • Max SPL 137 dB
  • 32-bit DSP processing, 48 kHz
  • 1.4" titanium compression driver, 4.0" voice coil

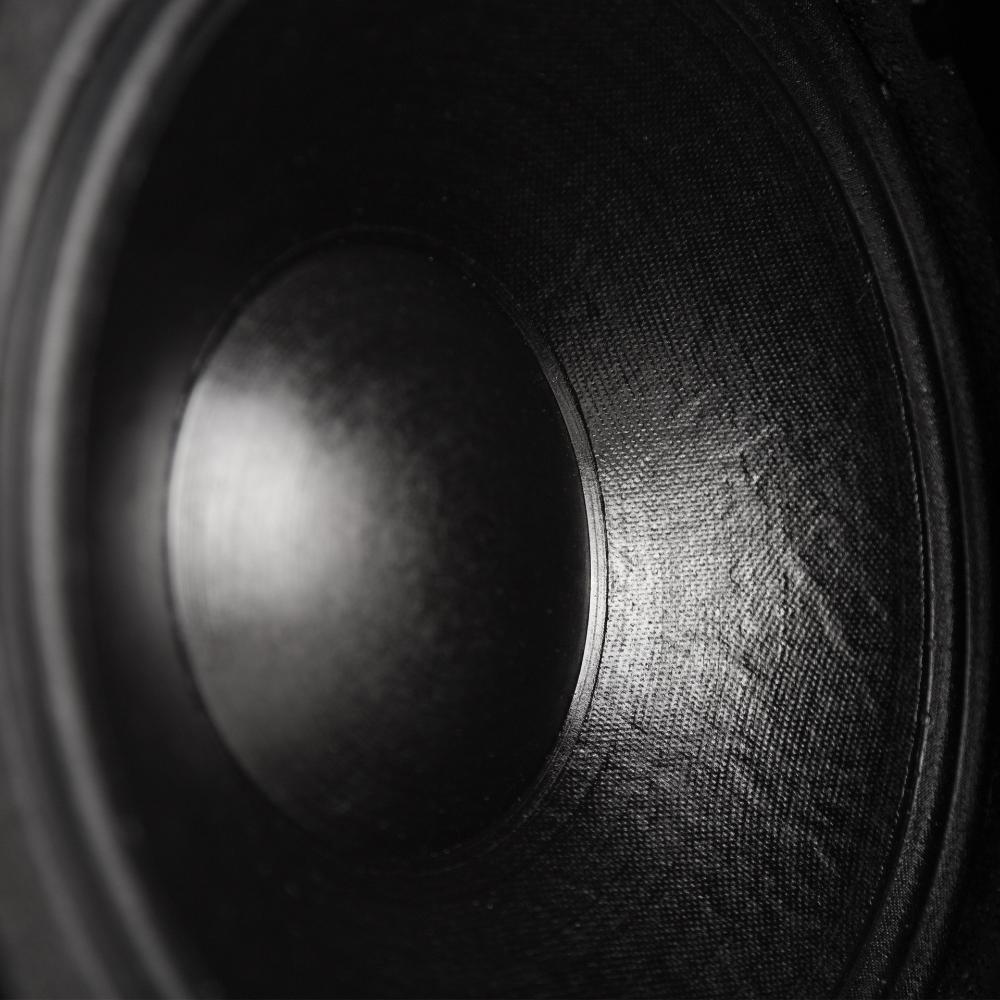

  • 2 x 10" neodymium woofers, 2.5" voice coil
  • Exclusive FiRPHASE technology onboard
  • Control and management via RDNet
  • Crossover point at 680 Hz

Technical Specifications:

  • Frequency response: 50 - 20,000 Hz
  • Max SPL at 1 m: 137 dB
  • Horizontal coverage angle: 100°
  • Vertical coverage angle: 15°
  • Compression driver: 1 x 1.4'' neo, 4.0'' v.c
  • Woofer: 2 x 10'' neo, 2.5'' v.c
  • Input signal: balanced/unbalanced

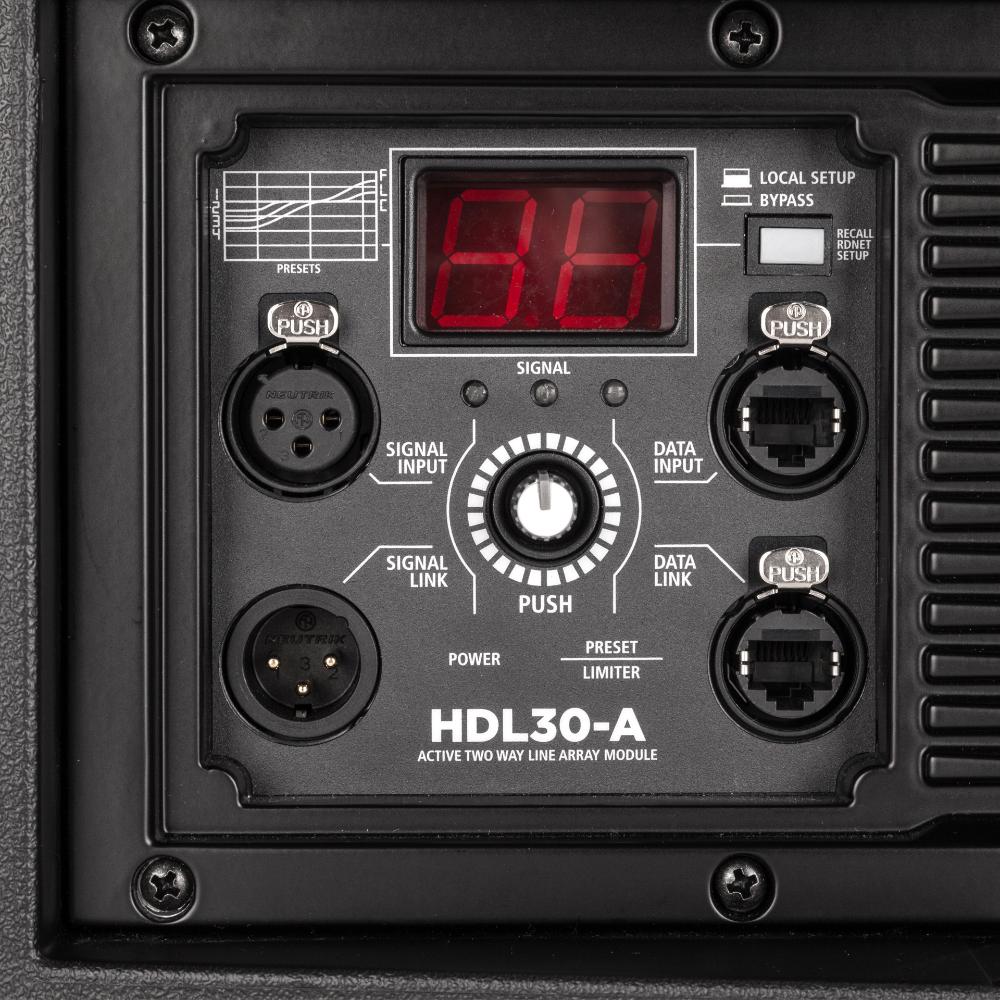

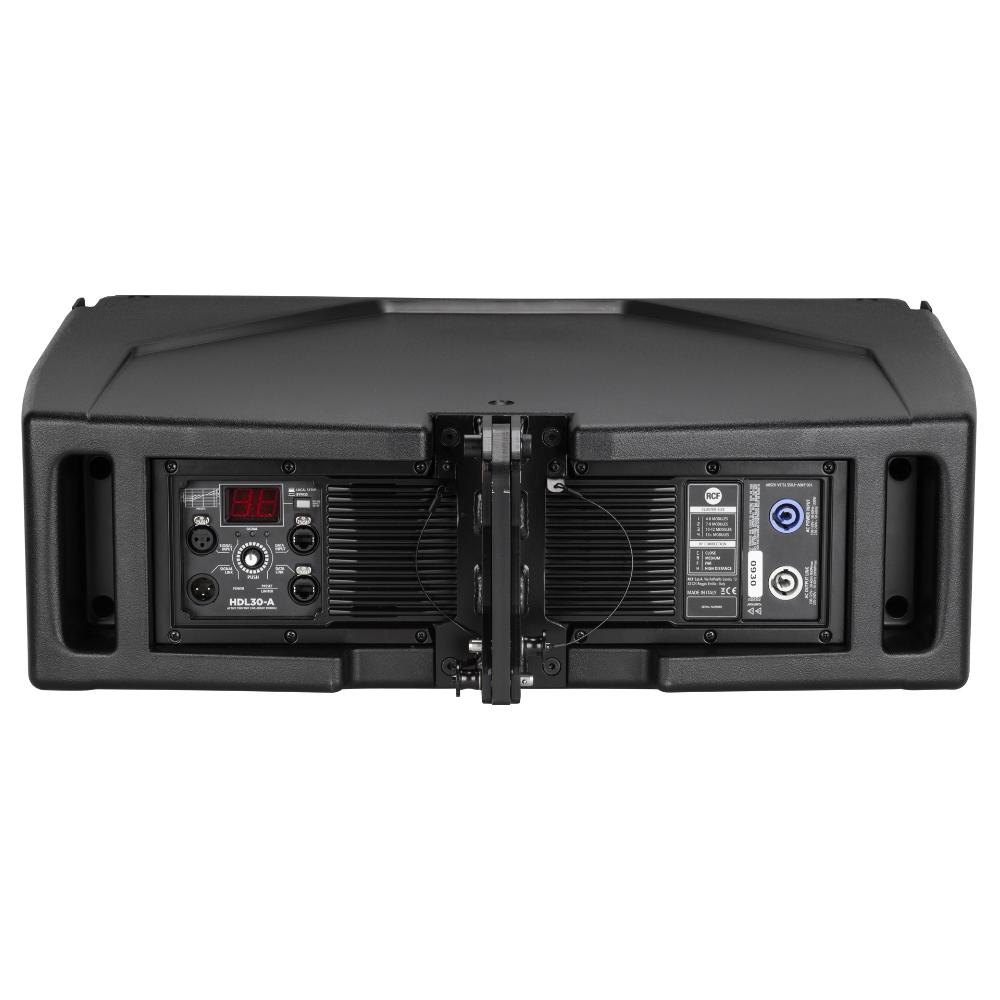

  • Input connectors: XLR, RDNet Ethercon
  • Output connectors: XLR, RDNet Ethercon
  • Input sensitivity: +4 dBu
  • Crossover frequencies: 680 Hz
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter
  • Controls: Preset, RDNet bypass
  • RDNet: Yes
  • Total power: 2200 W peak, 1100 W RMS
  • High frequencies: 600 W peak, 300 W RMS
  • Low frequencies: 1600 W peak, 800 W RMS
  • Cooling: Forced

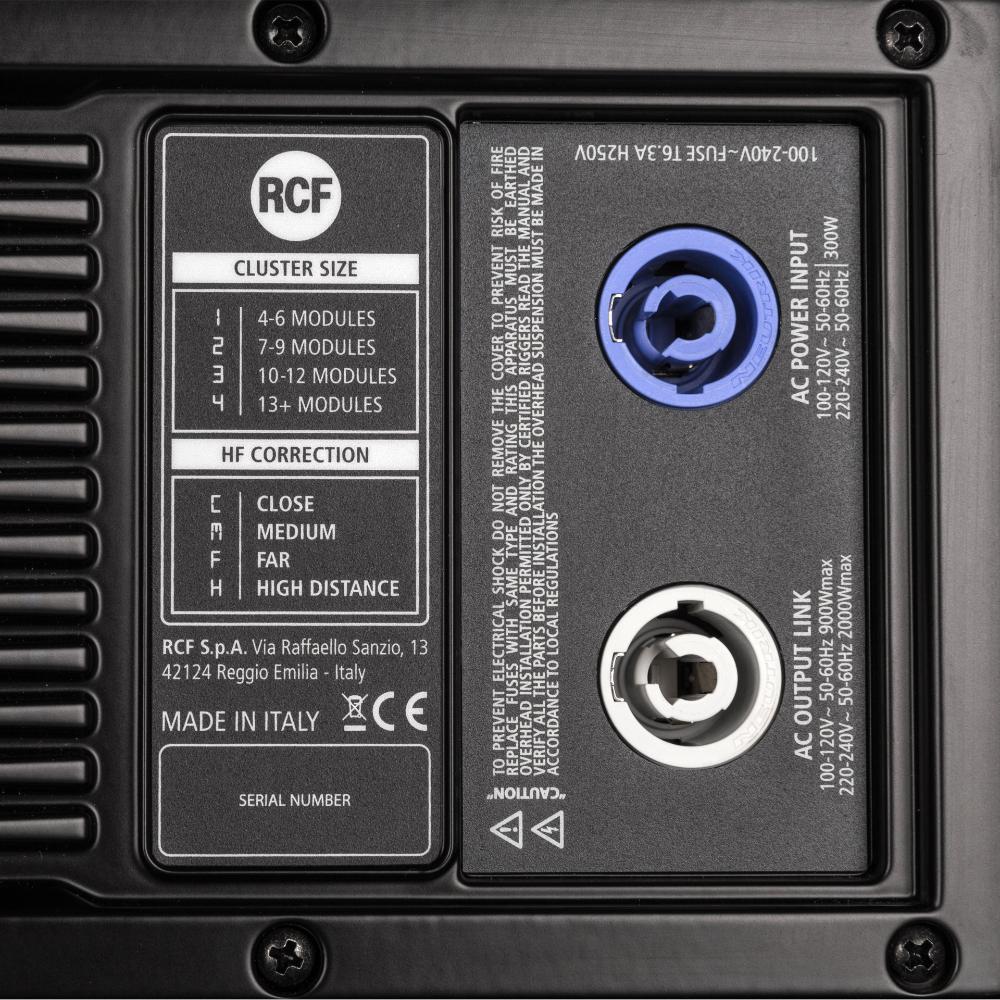

  • Connections: Powercon IN/OUT

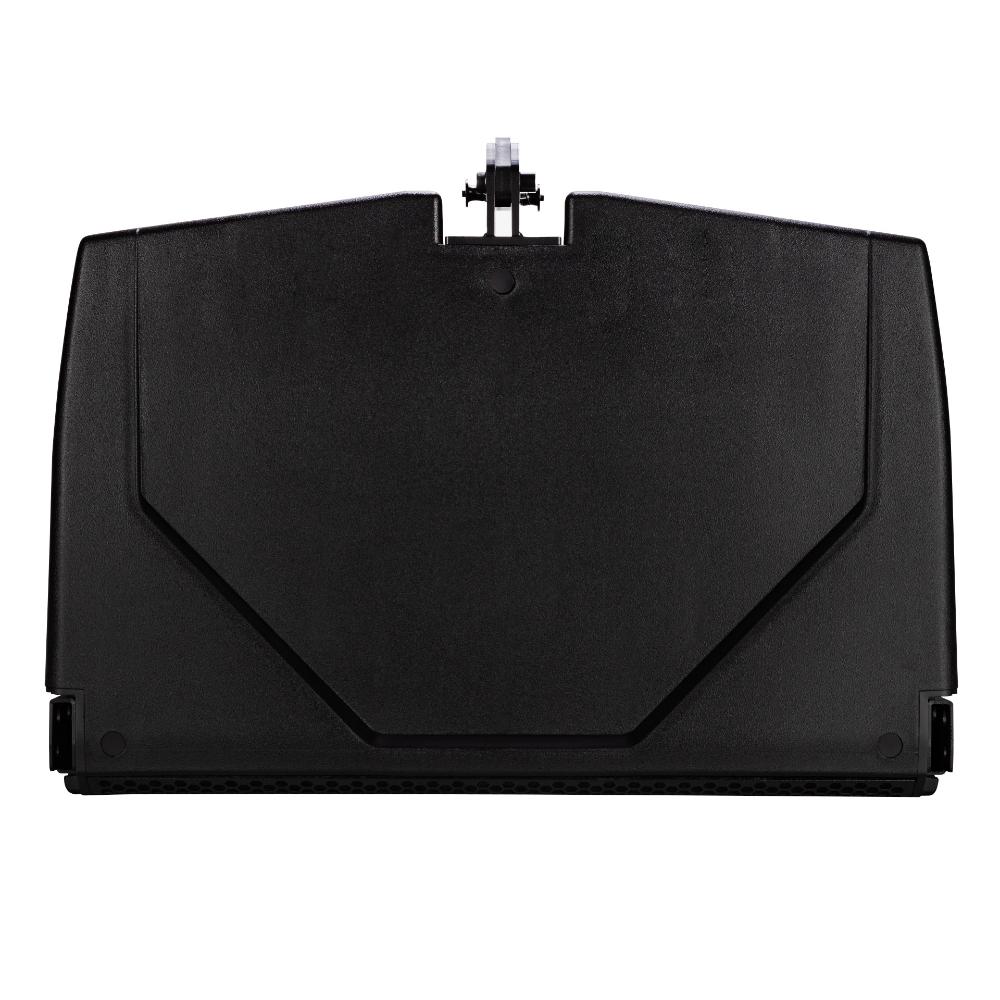

  • Cabinet/enclosure material: PP composite

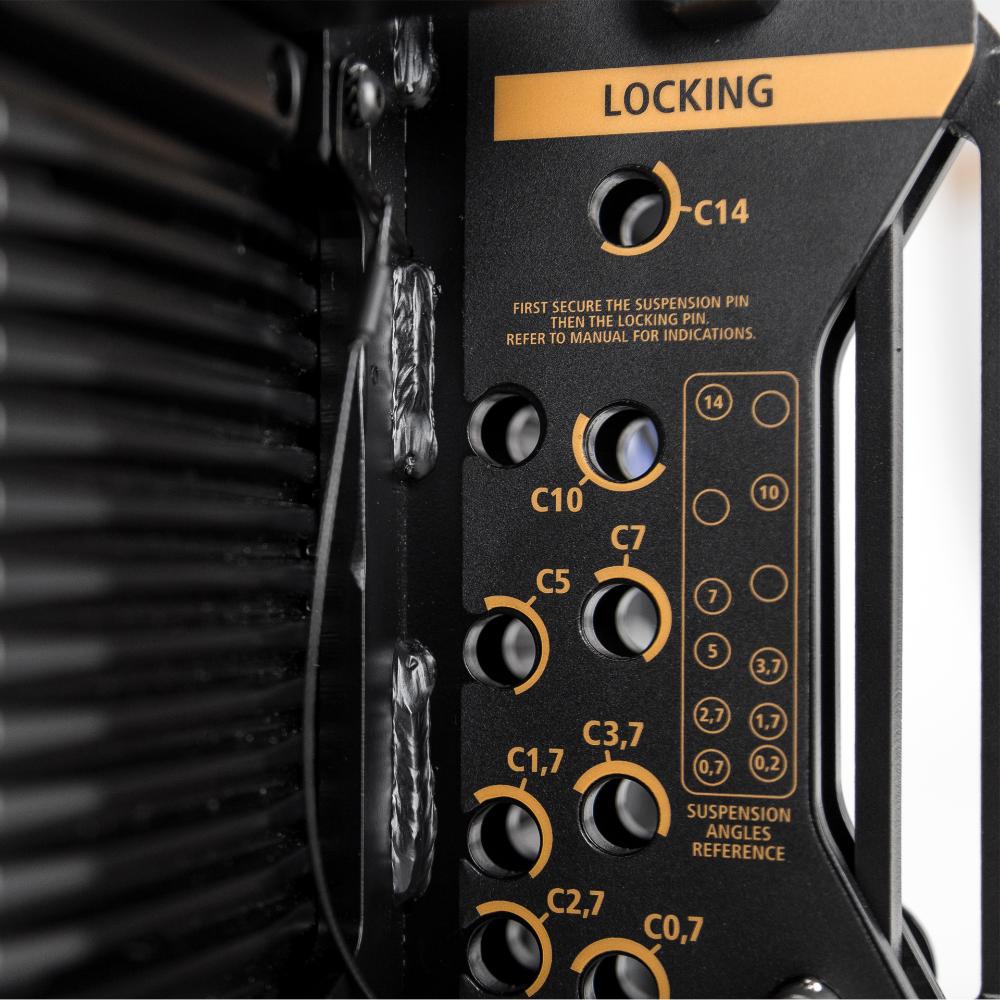

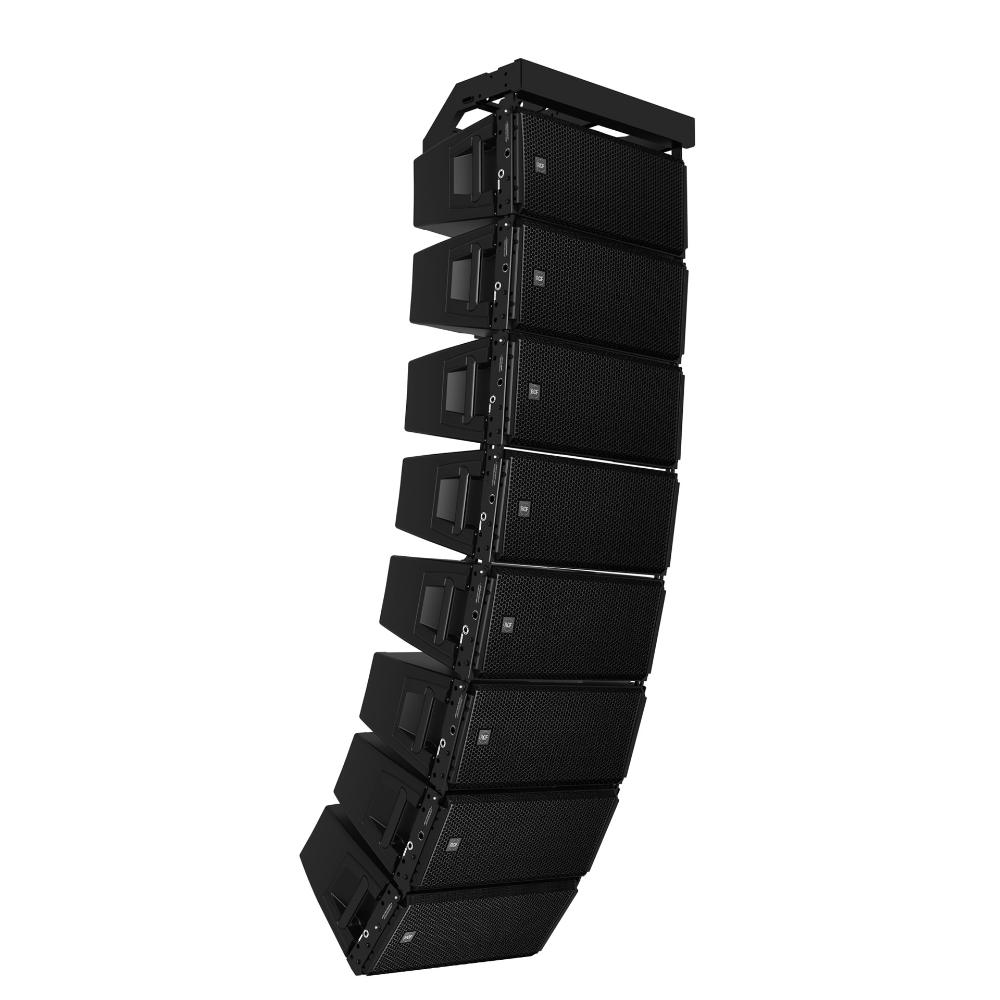

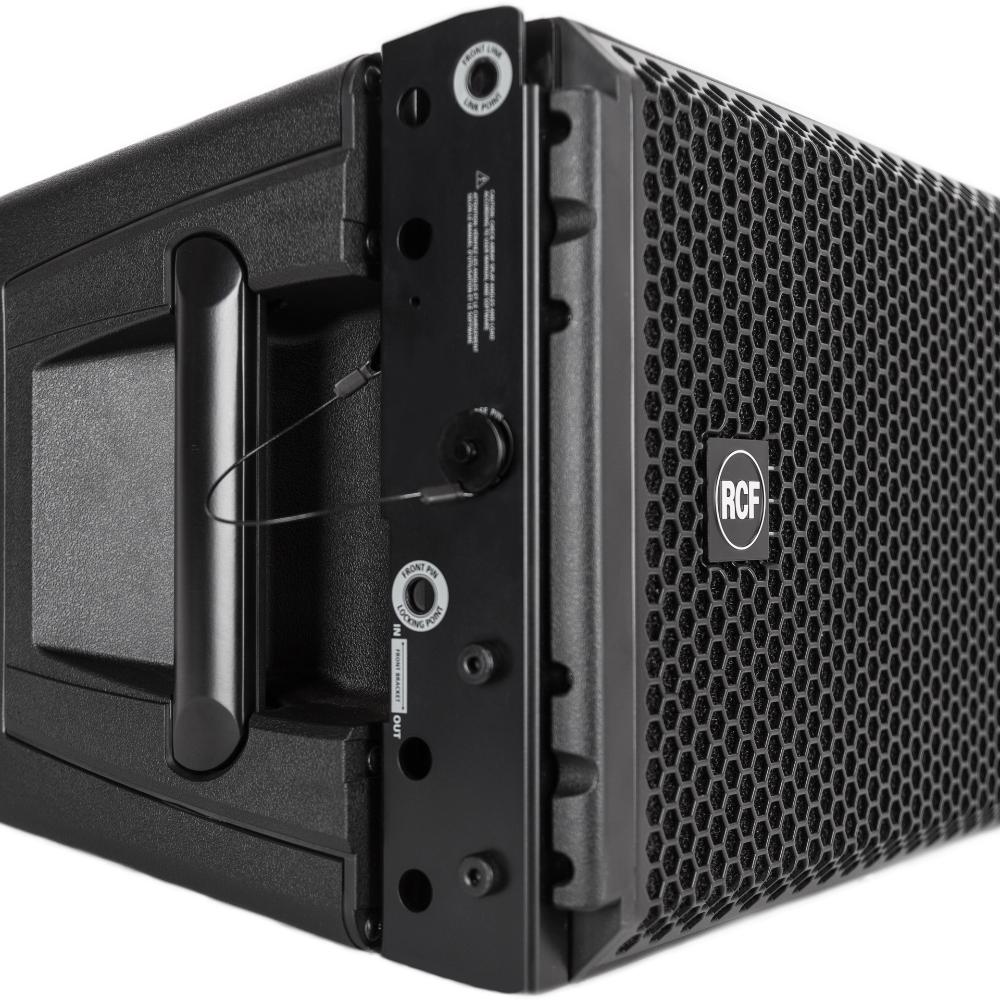

  • Hardware: Array fittings

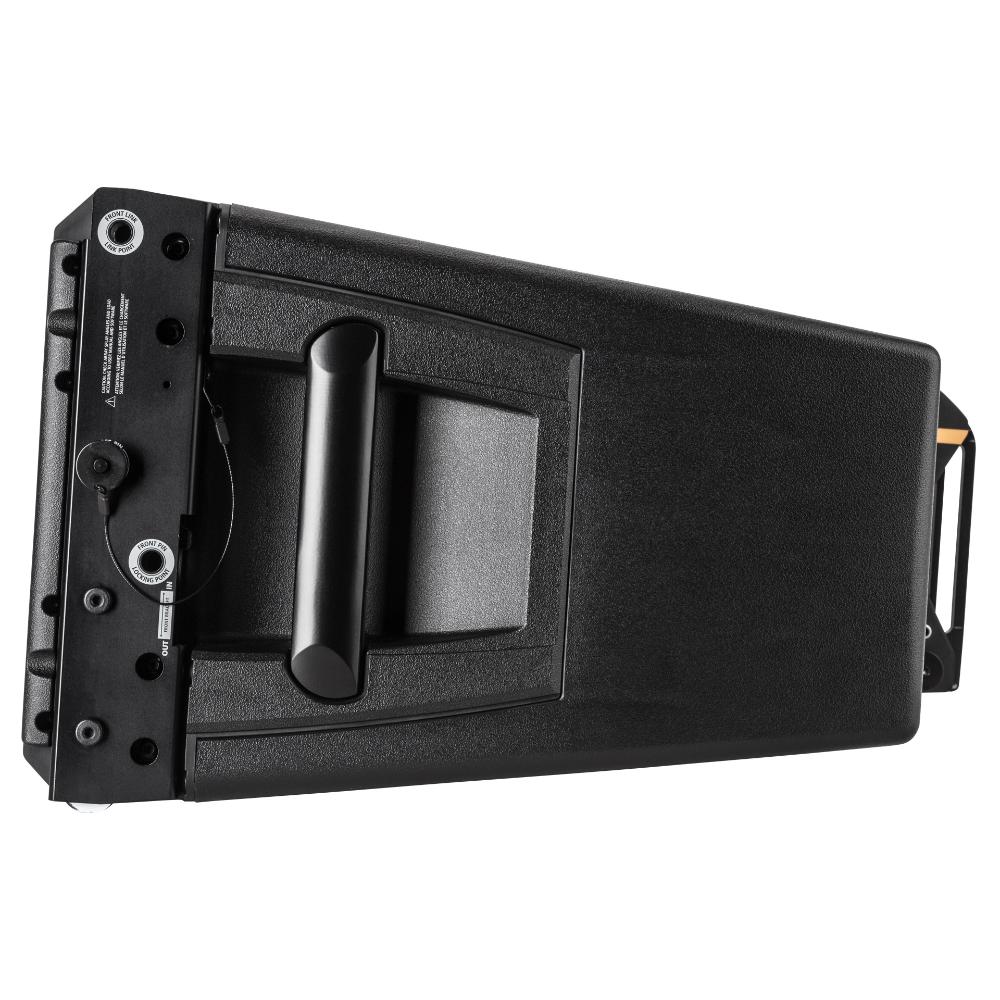

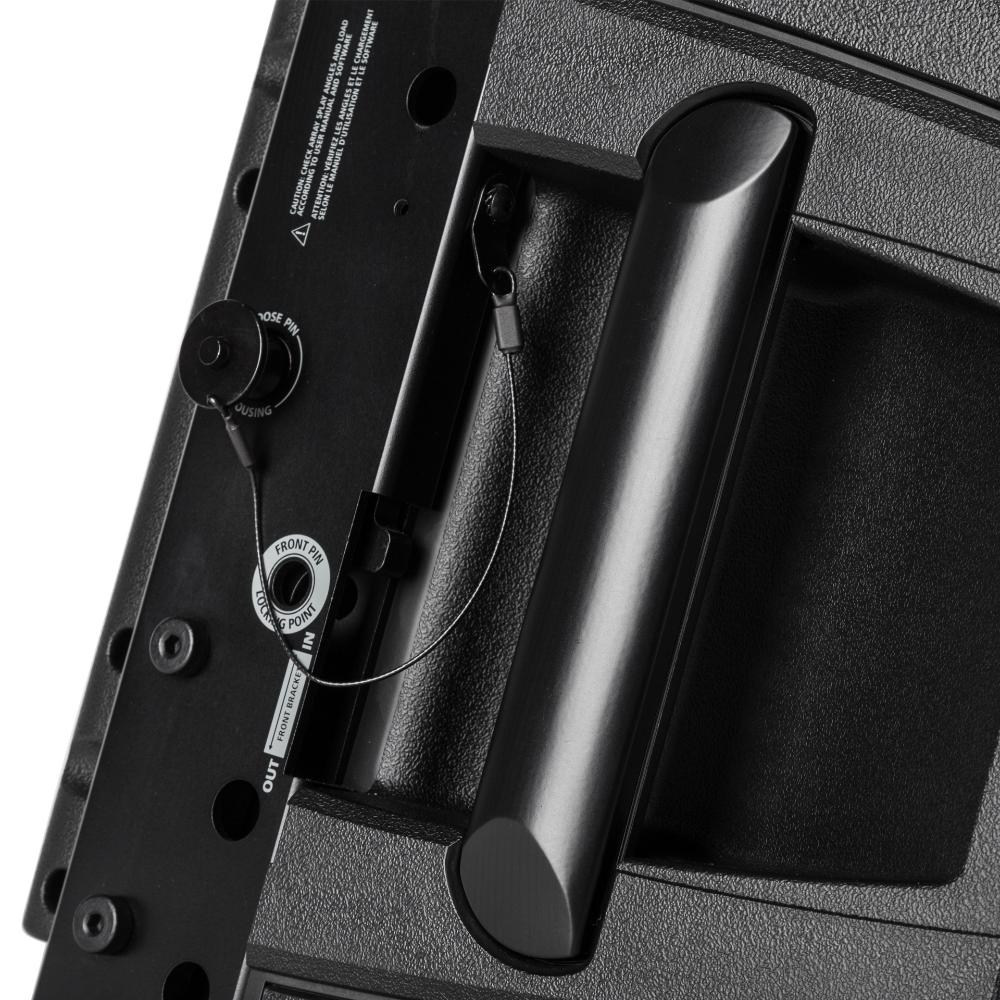

  • Handles: 2 on the sides

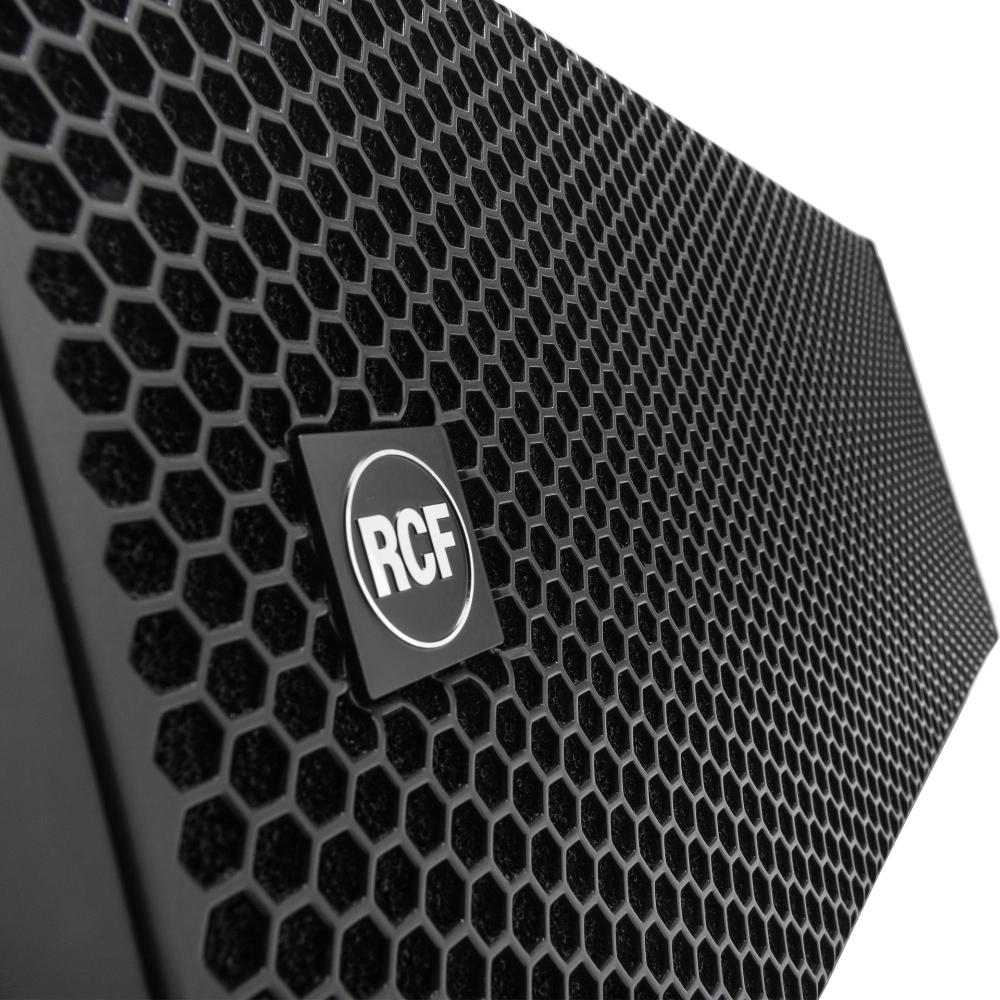

  • Grille: Steel
  • Colour: Black
  • Dimensions: 293 x 705 x 502 mm
  • Weight: 25 kg
  • Shipping dimensions: 365 x 800 x 550 mm
  • Shipping weight: 28.2 kg

Product code: 13000511

Unit of sale: piece

Specifications:
Cabinet type: satellite
system name: RCF HDL
