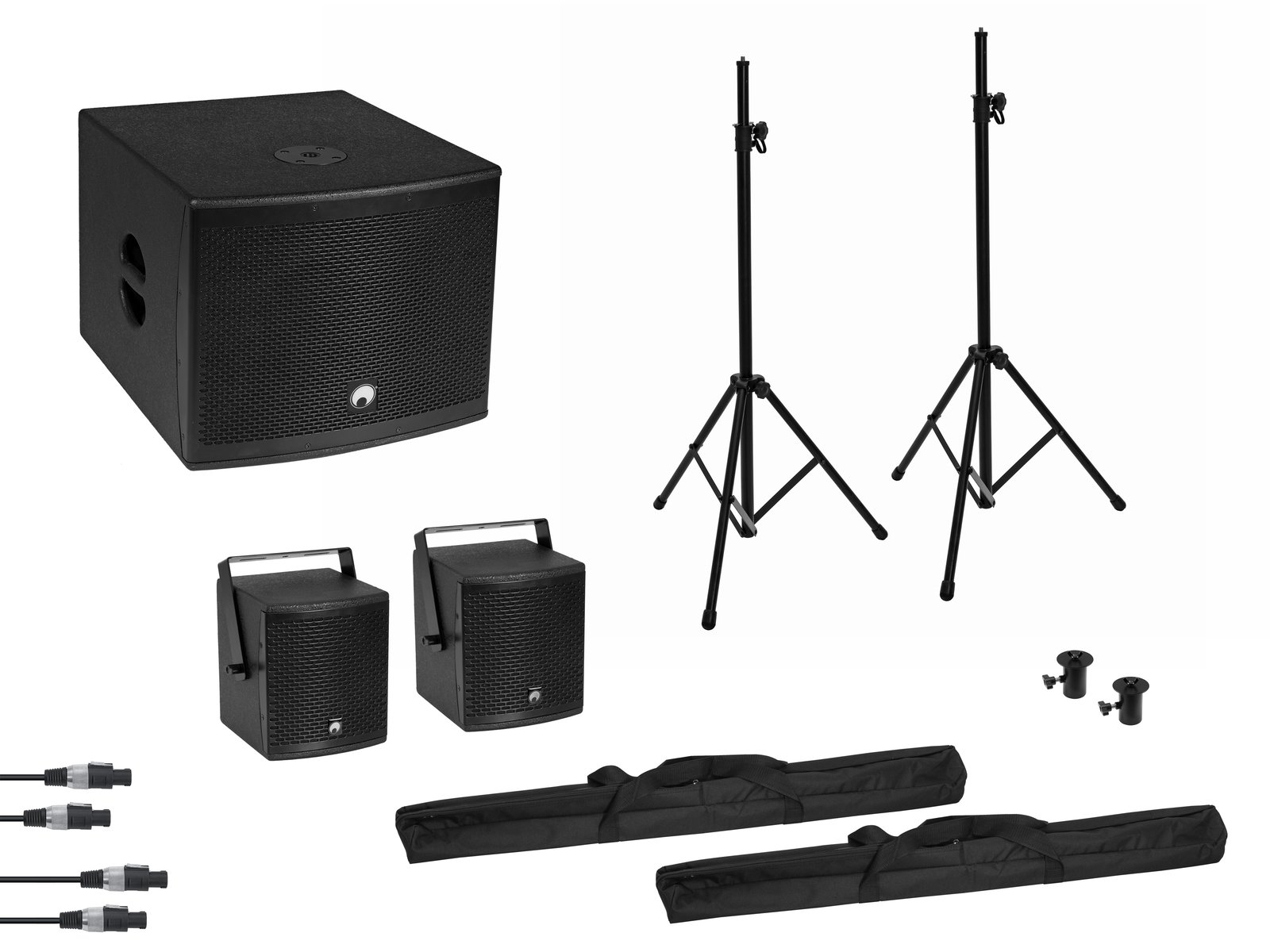

OMNITRONIC MOLLY-12A Active Subwoofer black
12-inch active subwoofer with DSP and Bluetooth
- 12-inch bass reflex subwoofer with DSP and RMS power of 700 watts
- Flexible extension with MOLLY-6 satellites for 2.1 and 4.1 configurations
- Class D amplifier controlled by DSP (500 W + 2 x 100 W)
- Integrated Bluetooth audio streaming
- 4 EQ presets with indicators
- Signal inputs via combo jacks (XLR/6.3 mm jack), RCA and 3.5 mm jack
- Separate volume control for subwoofer and satellites
- Stereo/mono selection
- Digital signal processor
- The device is cooled by a temperature-controlled fan
- Control via Bluetooth
- Suitable for applications such as: Mobile DJs/entertainers; Trade show and shop setups; Installation; home entertainment; restaurants, bars and hotels; product presentations and lectures
- 2 robust transport handles
- Black metal grille with acoustic foam
Package contents
- 1 x user manual, 1 x power cable, 1 x declaration of conformity, 1 x bass, 2 x speaker cable
OMNITRONIC MOLLY-6 Top black 2x
6.5" satellite speakers with mount
- Pair of 8-ohm speakers with 6.5" woofer and 1" tweeter.
- For use with MOLLY-12A subwoofers for 2.1 and 4.1 configurations
- An adapter is required for optional mounting on a stand
- U-shaped extension support and cable available for connecting 2 satellite speakers
- With mounting bracket
- With hardware
- Black metal grille with acoustic foam
- 2 pieces per set
Package contents
- 2 x tops, 2 x mounting brackets, 4 x thumb screws, 2 x screw terminals
OMNITRONIC BOB-4 Black support adapter 2x
Support adapter with sleeve for 35 mm tube, M8 thread
Package contents
Speaker stand OMNITRONIC BOB System
Speaker stand for BOB speakers, extendable up to 170 cm
- Height adjustable in 5 steps, with locking pin
- Tube diameter: Ø 30 mm
Package contents
- 1 x tripod, 1 x user manual
OMNITRONIC BOB transport bag for tripod/distance tube
Accessory for the BOB series
- Suitable for stands and distance tubes
- Made of easy-care black artificial textile
- High-quality workmanship with black textile
Package contents
OMNITRONIC Speaker cable 2x1.5 5m bk
Package contents
| Weight: | 36.81 kg |
| OMNITRONIC MOLLY-12A Active Subwoofer black |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 1000 W |
| Output power: | 1 x 500 W RMS
2 x 100 W RMS (8 ohms)
2 x 200 W RMS (4 ohms) |
| Power connection: | Mains input via IEC (M) connector, cable mounting version with safety plug (provided) |
| Frequency range: | 40 - 160 Hz |
| Sensitivity: | 103 dB |
| Max. SPL: | 128 dB |
| DSP: | Digital signal processor |
| Cooling: | Temperature-controlled fan |
| Control: | Bluetooth |
| Attachment system: | Screws: M20 thread |
| Circuits: | Class D |
| Control elements: | Phase reverse switch |
| controls: | Softstart; short circuit; limiter; Overvoltage; overheating |
| Status LED: | Signal, power, limit, fault |
| Connections: | Input: line via 2 x 3-pin XLR/6.35 mm (F) combo jack (mounting version)
Input: line via 1 x 3.5 mm jack (stereo) mounting version.
Input: line via 1 x RCA stereo
Output: line via 2 x 3-pin XLR
Output: Top via 2 x built-in speaker socket (F) |
| Input channels: | 1 x stereo via combo jack or RCA or Bluetooth, channel control via rotary selector |
| Speaker: | 1 x woofer (12") approximately 30 cm
Voice coil (3") approximately 8 cm |
| Speaker type: | Subwoofer |
| Construction type: | Ventilated |
| Transport handle: | 2 pcs/piece |
| Material: | Birch plywood |
| Colour: | Black textured painted finish |
| dimensions: | Width: 47 cm
Depth: 57 cm
Height: 40 cm |
| Weight: | 22.10 kg |
| OMNITRONIC MOLLY-6 Top black 2x |
| Power: | Program: 260W
Nominal power: 130 W RMS |
| Frequency range: | 150 - 20000 Hz |
| Sensitivity: | 95 dB (1W/1m) |
| Max. SPL: | 119 dB |
| Impedance: | 8 ohms |
| Attachment system: | 2x Mounting bracket |
| Flying points: | 2 x M8 thread |
| Connections: | 1 x built-in speaker socket (F)
1 x screw terminal |
| Speaker: | 1 x woofer (6.5") approximately 17 cm
Voice coil (1") approximately 2.5 cm
1 x Tweeter (1") approximately 2.5 cm |
| Speaker type: | Ceiling/wall speaker; Coaxial speaker |
| Material: | MDF (medium density fiberboard) |
| Colour: | Black textured painted finish |
| Weight: | 8.90 kg |
| OMNITRONIC BOB-4 Black support adapter 2x |
| Maximum load capacity: | 30 kg |
| Type (general supports): | Accessories |
| Material: | Steel (powder coated) |
| Colour: | Black |
| Weight: | 380 g |
| Speaker stand OMNITRONIC BOB System |
| Maximum load capacity: | 14 kg |
| Height: | Max: 195 cm
Min: 107 cm |
| Attachment system: | M10 thread |
| Type (general supports): | Speaker/handheld stand |
| Material: | Steel |
| Colour: | Black, painted; scratch and shock resistant |
| Main tube diameter: | Ø 3 cm |
| Weight: | 2.15 kg |
| OMNITRONIC BOB transport bag for tripod/distance tube |
| Material: | Textile |
| Colour: | Black |
| dimensions: | Width: 1.06 m
Depth: 9 cm
Height: 7 cm |
| Weight: | 190 g |
| OMNITRONIC Speaker cable 2x1.5 5m bk |
| Cable construction: | Speaker cable 2 x 1.5 mm² |
| Cable length: | 5 m |
| plug A: | 1 x speaker with 2 pins (M) |
| plug B: | 1 x speaker with 2 pins (M) |
| Colour: | Black |
| Weight: | 370 g |
