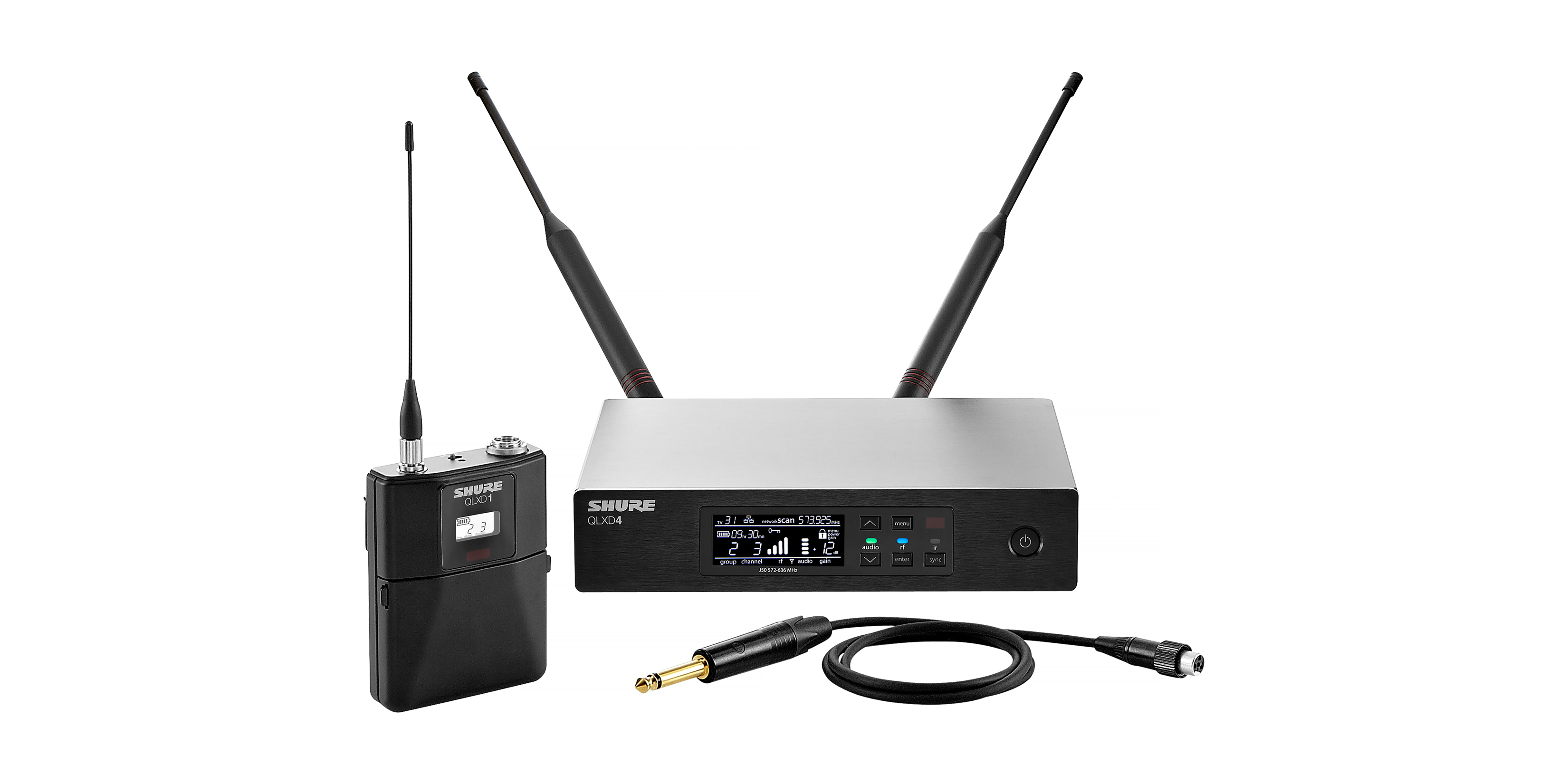

Shure QLXD14 Guitar Set

Shure QLXD14, UHF wireless set, receiver-transmitter with digital transmission. The QLXD systems combine professional features and ease of use thanks to the 24-bit digital transmission and very efficient use of the RF spectrum. The automatic scanning function quickly finds open frequencies and the IR sync function sets the transmitter frequency with a single button press.

The set includes:

• QLXD1 pocket transmitter
• QLXD4 receiver
• WA302 instrument cable
• receiver power supply
• 2 x AA batteries
• rackmount kit

The QLXD4 receiver has networking capabilities via Ethernet, scans frequencies of units in the network and allows control and monitoring remotely on PC/Mac via Wireless Workbench® software or iOS via ShurePlus™ Channels Mobile App.

• 64 MHz bandwidth
• up to 60 compatible preset channels
• up to 17 simultaneous systems / 6 MHz TV channel or 22 systems / 8 MHz channel
• predictive digital frequency switching
• AES 256-bit encryption for transmission security
• adjustable audio gain up to 60 dB
• LCD display
• audio and RF signal indicators
• detachable antennas
• switchable microphone/line output via XLR
• instrument output via 1/4" jack
• aluminium housing
• dynamic range up to 120 dB
• operating range: max. 100 meters in open field
• image rejection: >70 dB, typical
• RF sensitivity: -97 dBm at 10^-5 BER

QLXD1 Transmitter:

• RF power: 10 mW
• dynamic range 120 dB
• AES 256-bit encryption
• up to 9 hours of operation with AA batteries or 10 hours with lithium-ion batteries
• external contacts for charging
• mini XLR connection with 4-pin TA4M
• LCD display
