Allen&Heath Xone 43

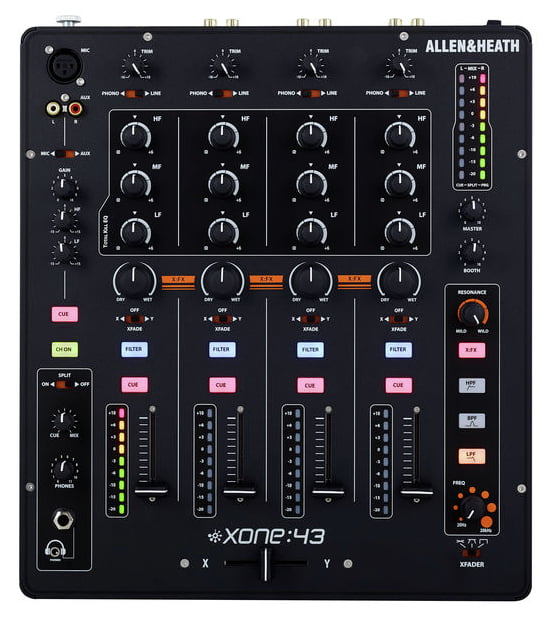

Allen&Heath XONE:43 - DJ analogue mixer with 4+1 channels, featuring an analogue XONE filter with resonance control, 3-band EQ, VCA crossfader with replaceable option, and X:FX send/return. The XONE filter includes selections for high pass, band pass, and low pass filters, resonance control, and frequency sweep. Additionally, X:FX can be routed to the filter to add layers of FX and filtering. The crossfader offers 3 settings for blending and scratching styles, compatible with the custom Innofader.

The microphone channel benefits from a 2-band EQ and can be used as an additional auxiliary input via stereo RCA connectors. The mixer provides main outputs with XLR connectors, with independent booth and record outputs. It comes with a USB cable, power cable, and a set of knobs for the potentiometers.

Technical specifications:

• Inputs/outputs:
  • Inputs:
    • Phono 1-4: 8x RCA (4 stereo pairs)
    • Line 1-4: 8x RCA (4 stereo pairs)
    • X-FX Return: 2x RCA (stereo pair)
  • Outputs:
    • Master: 2x XLR (stereo pair)
    • Booth: 2x RCA (stereo pair)
    • Record: 2x RCA (stereo pair)
    • X-FX Send: 2x RCA (stereo pair)
• Nominal output levels:
  • Main Mix: +4 dBu
  • Booth: 0 dBu
  • X:FX Send: 0 dBu
  • Record Output: 0 dBu
• Maximum output level:
  • Main Mix: +27 dBu
  • Booth: +22 dBu
  • X:FX Send: +20 dBu
  • Record Output: +20 dBu
• Internal channel headroom: +20 dB
• Frequency response: 20 Hz to 20 kHz ±0.5 dB
• THD + N: <0.05% at 1 kHz
• Crosstalk: < -83 dB inter-channel
• Residual noise:
  • Mix 1: -89 dBu
  • Booth: -93 dBu
  • X:FX: -77 dBu
  • Rec: -92 dBu
• Mix noise:
  • Mix 1: -82 dBu
  • Booth: -84 dBu
  • X:FX: -77 dBu
  • Rec: -87 dBu
• Meters:
  • Channel meters: 9 LED -20 to +10 dB
  • Main meters: 9 LED -20 to +10 dB
• Equalisation:
  • Microphone EQ: 2-Band ±12 dB
  • Channel EQ: 3-Band +6 dB / total kill
• Faders:
  • Channel fader: 1.8" / 45.0 mm stereo VCA, < -85 dB shutoff
  • Crossfader: 1.8" / 45.0 mm stereo VCA - can be replaced
• Filter: Stereo VCF, analogue
• Maximum power consumption: 30 W
• Dimensions (W x H x D): 32.0 x 11.0 x 37.0 cm
• Weight: 5.1 kg
