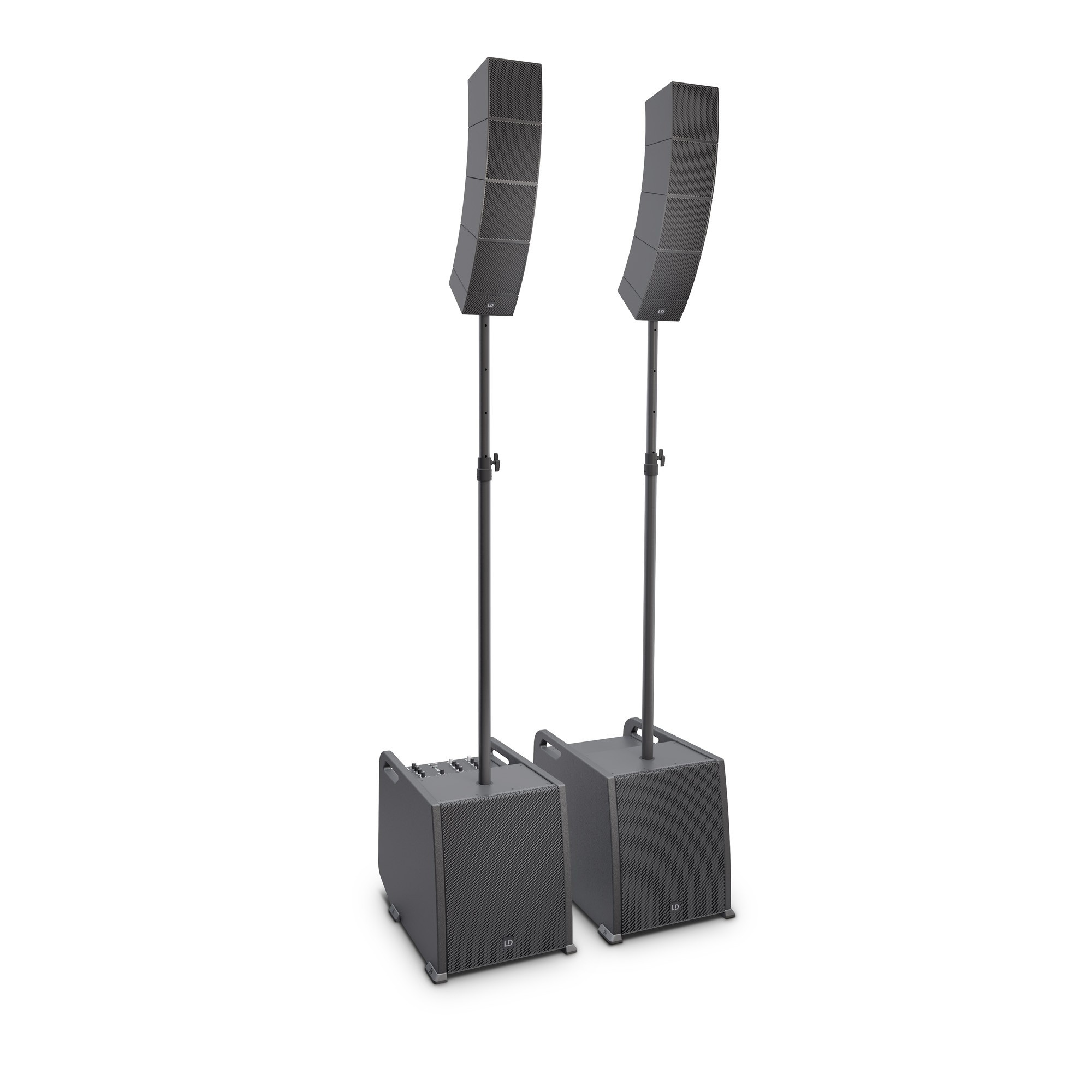

LD Systems CURV 500 Power Set

LD Systems CURV 500 PS, a compact sound system featuring a curved vertical array with powered subwoofers, a mixer, and satellites with WaveAhead® technology. Each satellite has a 4" midrange driver and 3 1" high-frequency drivers, connecting via the SmartLink® plug-n-play system.

The 10" subwoofer includes a class D amplifier with limiter and integrated protections, as well as a 4-channel mixer with 16 digital effects and Bluetooth receiver.

The CURV 500 PS system delivers 1240W RMS power and a peak sound pressure of 134 dB SPL, and includes 2 SmartLink® adapters, 2 spacers, and cables for the satellites.

• curved vertical array system
• system power: 1240 W RMS
• 8 satellites, 2 powered bass reflex subwoofers
• sound pressure: 128 dB SPL continuous, 134 dB peak
• frequency response: 47 Hz - 20 kHz
• coverage H x V: 110° x 10° / satellite
• amplification / channel: 300W subwoofer + 160W satellites
• integrated protections, DSP limiter, short circuit, overheating, overcurrent
• integrated 4-channel mixer + Bluetooth, FX processor with 16 effects, 4 system DSP presets
• M20 suspension points
• subwoofer dimensions: 325 x 383 x 491 mm
• satellite dimensions: 122 x 122 x 122 mm
