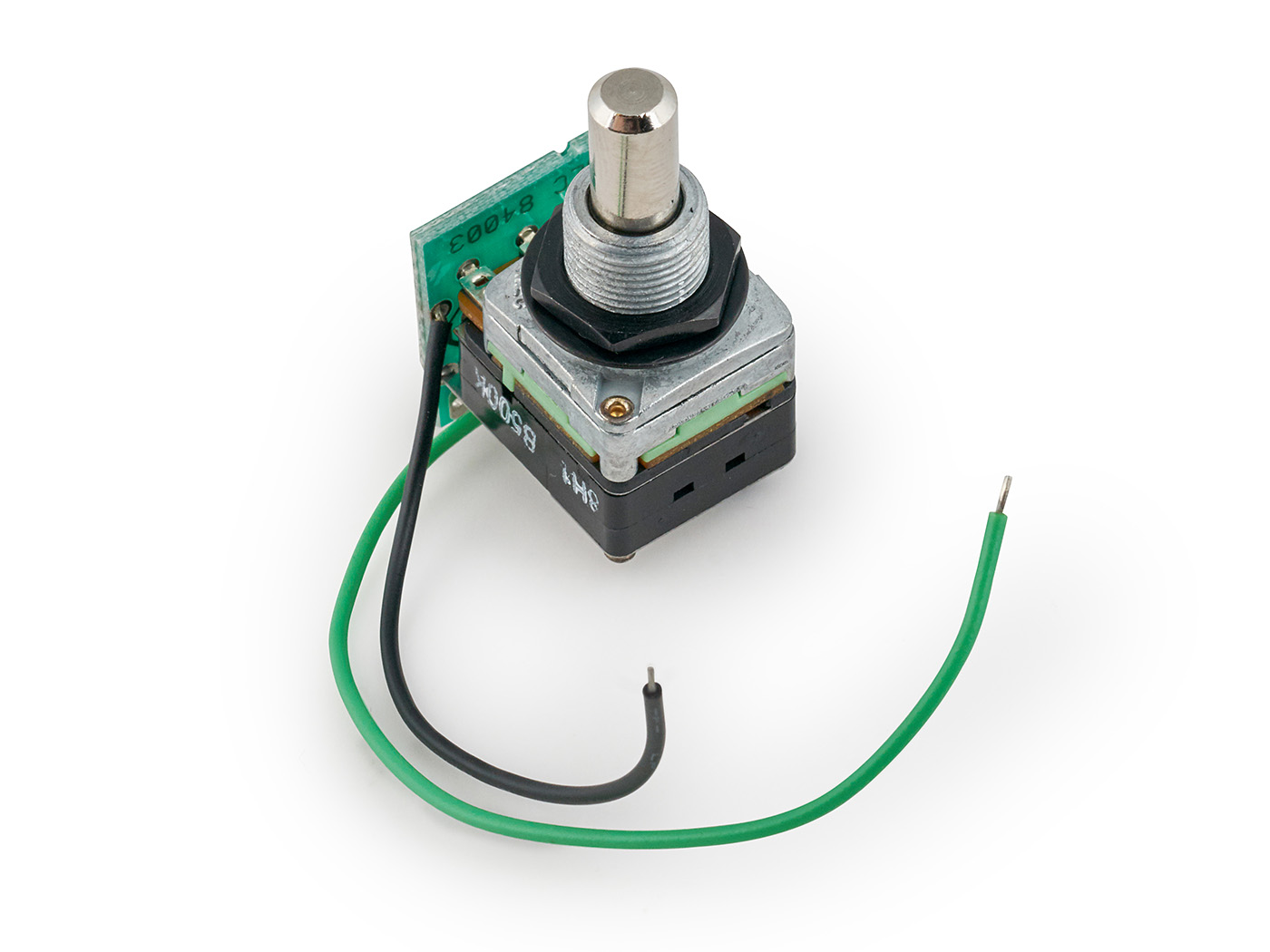

MEC Pickups Volume Pot Module, B500K, Push/Pull, with connection cables

Potentiometer with switch

mono potentiometer module with push/pull switch.
b500K linear resistance (500 kOhm) for precise control.
pre-equipped with MEC M 84003 PCB module.
ideal for volume control of passive pickups.
includes nut and washer for easy installation.

42²³ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

208 points of loyalty

Shipping 25.00 €

Warranty 24 months

Returns 14 days

request details

MEC Pickups Volume Pot Module, B500K, Push/Pull, with connection cables Add to cart: 42²³ €

- Mono potentiometer module with push/pull switch
- Simple shaft
- B500K (resistance 500 kOhm, (B) linear)
- On/On DPDT
- Pre-equipped with MEC M 84003 PCB module
- Suitable for volume control for passive pickups
- Thread M10 x 0.75 mm
- Mounting diameter 10 mm
- Thread length 9 mm
- Solid shaft
- Shaft length 11 mm
- Shaft diameter 6 mm
- Includes nut and washer
- Dimensions incl. terminals (L x W x H) 24 x 18 x 22 mm

- Note: The return and refund policy does not apply to electronic components if their cables have been cut or soldered, if there are signs of use, if they have already been installed or other damages affecting the condition of the goods are present.
