Allen&Heath DX-012

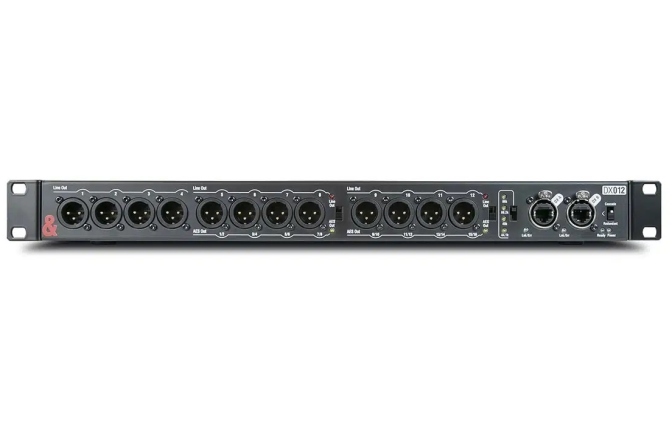

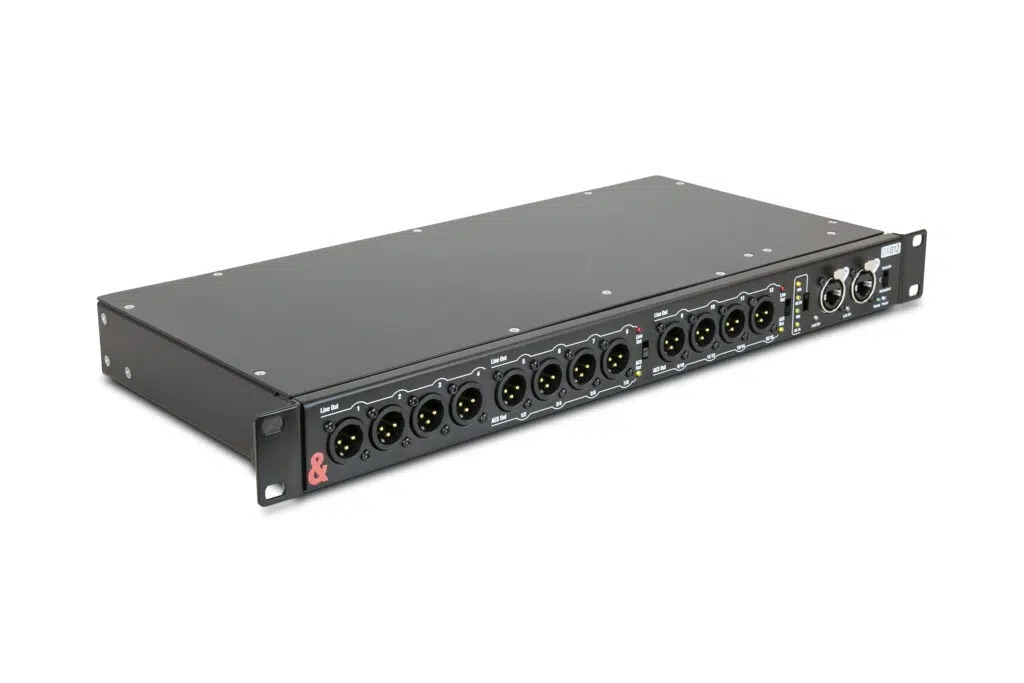

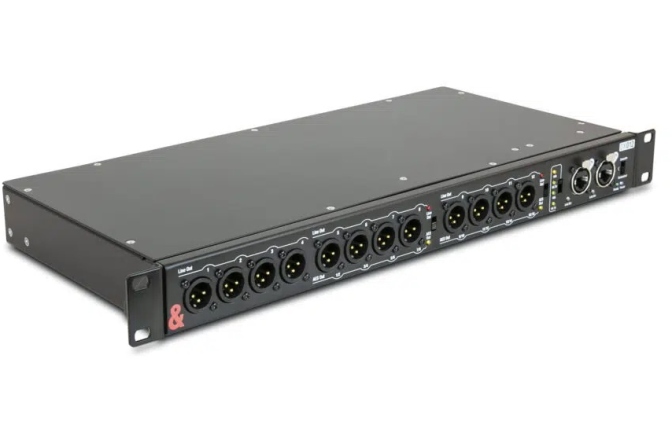

Allen & Heath DX012 – Audio expander with 12 XLR outputs, designed for expanding the number of outputs of mixing systems SQ and dLive. It features 12 XLR outputs, of which 8 can be configured for analog or digital AES signals. The unit is mounted in a rack and connects via CAT5e or higher cables.

• Audio expander with analog and digital AES outputs

• Outputs: 12 × XLR

• Channels 1–4: analog outputs

• Channels 5–8: analog outputs or digital AES, selectable

• Channels 9–12: analog outputs or digital AES, selectable

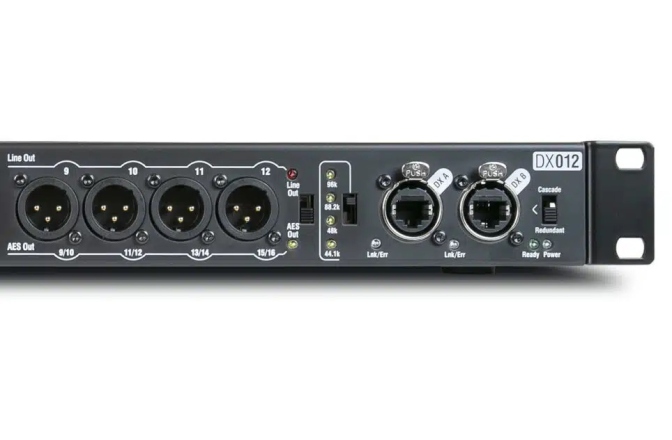

• AES sample rates: 44.1 / 48 / 88.2 / 96 kHz, selectable globally

• Compatibility: Allen & Heath SQ and dLive systems, from firmware version 1.9

• Maximum number of units per SQ system: 16

• Maximum number of units per dLive S Class system: 46

• Maximum number of units per dLive C Class system: 22

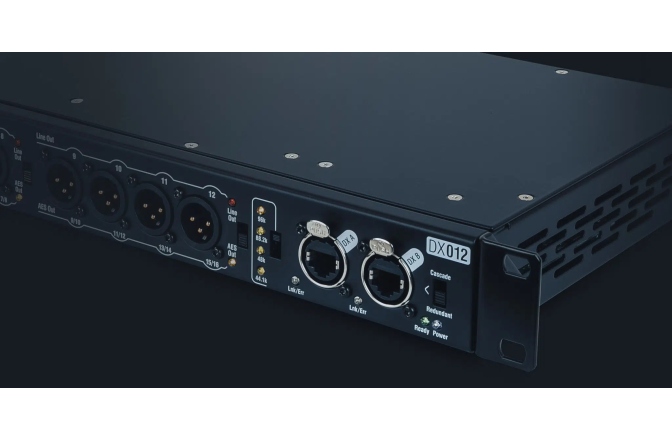

• Cascade Mode: connection in series of two DX16 / DX12 units

• Redundant DX connection: available for compatible hardware

• Connectivity: EtherCon ports

• Compatible cables: CAT5e or higher, up to 100 m

• Configuration: Plug & Play, without IP addressing

• Mounting: rack, 1U
