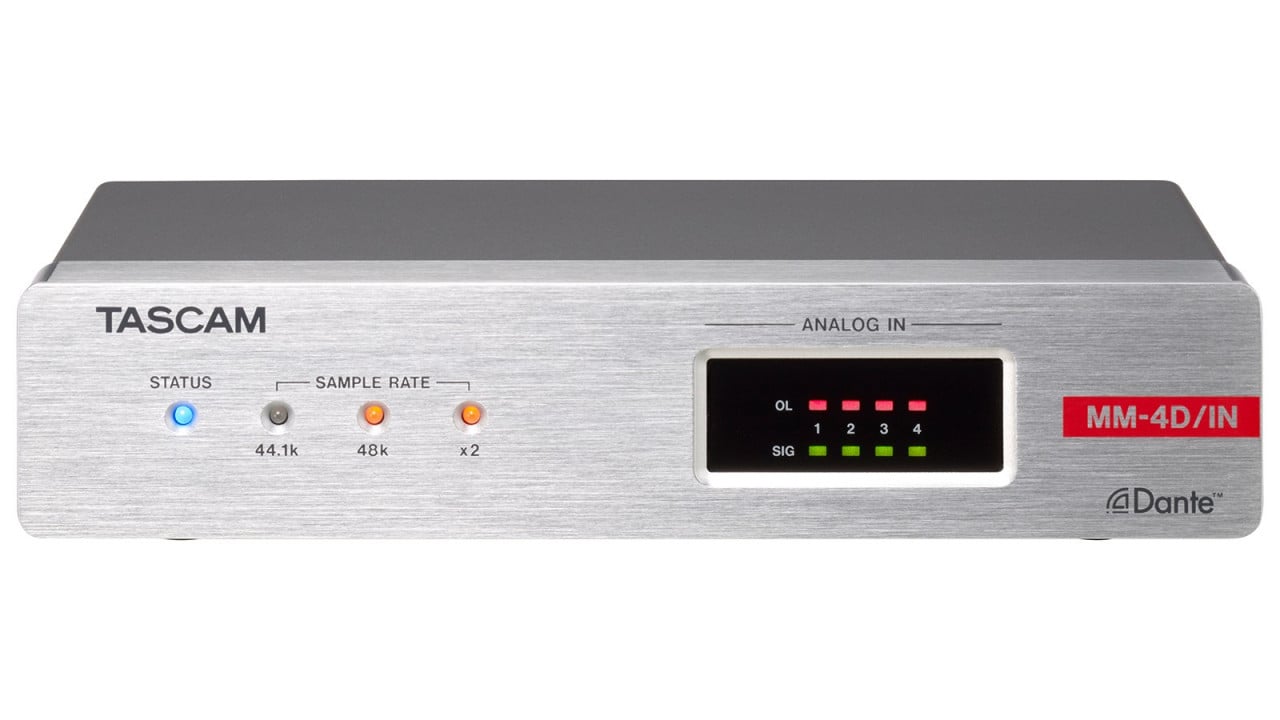

Tascam MM-4D/IN-E

MM-4D/IN-E is a compact 4-channel converter with DSP featuring Euroblock connectors 1/2 19", 1U. It converts microphone/line input signals into Dante signals.

Technical specifications:

• Formats: 44.1/48/88.2/96kHz, 16/24-bit
• Number of channels: 4

DATA/DATA+PoE Connections

• Connection: RJ-45
• Transmission protocol: Dante
• Standard Gigabit Ethernet: 1000BASE-T (IEEE 802.3ab)
• Cables: 5e or STP

• Power supply: PoE class 0
• Power consumption: 7.5W
• Dimensions: 214 x 44.45 x 136.1 mm
• Weight: 885 g
• Operating temperature range: 0°C-40°C

MIC IN → DANTE OUT
Mic amp EIN: -125 dBu (150Ω, 22kHz LPF+A, JEITA)
Frequency response:

• +/-0.5 dB: 20 Hz - 20 kHz (44.1/48kHz, JEITA)
• +/-0.5 dB: 20 Hz - 40 kHz (88.2/96kHz, JEITA)

• Distortion (THD+N): 0.003 % (-1 dBFS input, 44.1/48/88.2/96kHz, JEITA)
• S/N ratio: 108 dB (44.1/48/88.2/96kHz, JEITA)
• Crosstalk: 100 dB (44.1/48/88.2/96kHz, JEITA)
• Dynamic range: 108 dB (44.1/48/88.2/96kHz, JEITA)
