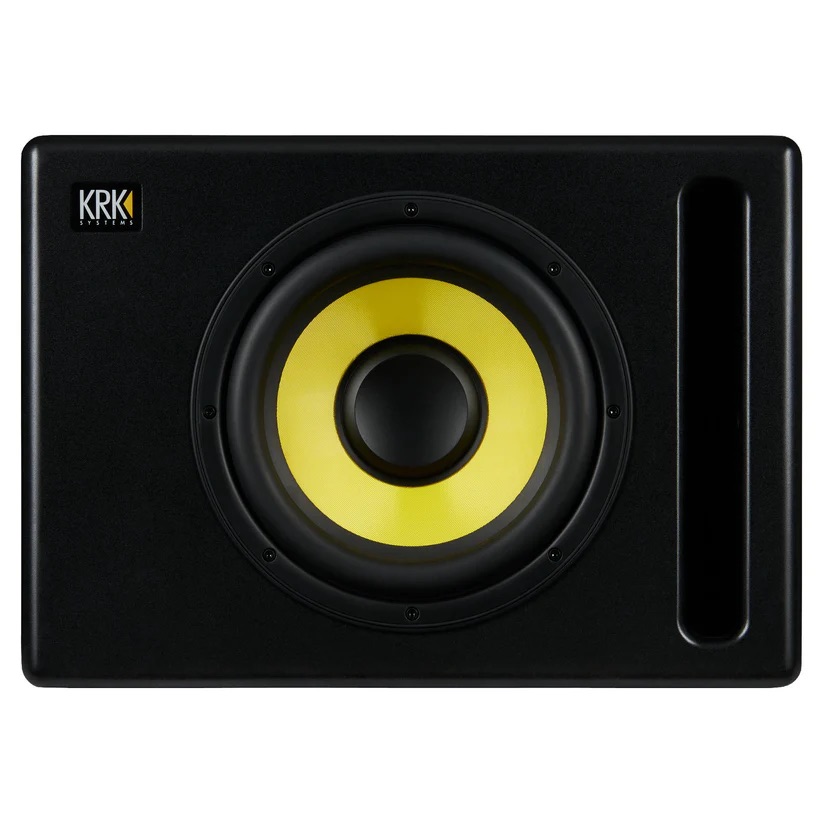

KRK S10 G4 Studio Subwoofer

KRK S10G4 Studio Subwoofer – Active studio subwoofer, equipped with a specially calibrated 10” woofer from KRK, which offers tight and controlled bass, while the class D amplifier enhances transient response, dynamics, and overall sound impact.

The adjustable crossover in four steps allows for easy integration with any monitor system, and the footswitch bypass function provides instant control over full-range playback to monitors without turning off the subwoofer.

Features:

• Active studio subwoofer
• 10" aramid composite woofer
• Bass extension down to 27Hz, with a maximum SPL of 117.2 dB
• Footswitch control for activating/deactivating the subwoofer and crossover filter (footswitch not included)
• Redesigned enclosure with a slimmer profile and front bass port
• Powerful and lightweight class D amplification
• Optimised crossover control with four positions
• Universal connectivity: XLR, TRS 6.3mm, and RCA inputs and outputs
• Controls for polarity and input sensitivity
• Ground lift switch to prevent ground loops

Specifications:

• Ventilated subwoofer with front loading
• System type: Active subwoofer
• Low-frequency driver: 10" aramid composite woofer
• Frequency response: 30Hz – 110Hz
• Maximum peak SPL: 117.2 dB
• Amplifier: Class D
• Output power (continuous): 160 watts @ 1% THD+N @ 44Hz
• Signal-to-noise ratio: 92 dB
• Amplifier distortion (THD + N): ≤ 0.12% @ -3dB of maximum power between 31Hz–110Hz
• Input impedance: 9.4 kΩ balanced, 9.2 kΩ unbalanced
• Ground lift switch: On/Off
• Bypass HPF: Footswitch only (NOT INCLUDED)
• Indicators: On/Standby
• Input connectors:
  • XLR L/R
  • TRS 6.3mm L/R
  • RCA L/R
  • Footswitch input Jack 6.3mm
• Output connectors:
  • XLR L/R
  • TRS 6.3mm L/R
  • RCA L/R
• AC power input: 100V–240V AC
• Enclosure: Reinforced 15 mm and 18 mm MDF
• Finish: Black vinyl foil, black painted front panel
• Hardware elements: EVA isolation pad
• Dimensions (H x W x D): 341 mm x 479 mm x 310 mm
• Weight: 15.88 kg
