Adam Hall 4 STAR H TCON 5D 1000

Hybrid cable

hybrid cable for parallel transmission of DMX signals and power from the 4 STAR SERIES
original Rean® 5-pin XLR connectors (Rean is a Neutrik® Group brand)
Rean® X Series mains connector (compatible with Neutrik® TRUE1) – pluggable under load, standard-compliant, IP65-certified
inner conductor cross-sections: 2 × 0.22 mm² (AWG24) for DMX and 3 × 1.5 mm² (AWG16) for power
developed by Adam Hall Cables® Crew in Germany

136⁷⁴ €

On order – delivery date confirmed after ordering Request details

Add to cart

also deliverable via

694 points of loyalty

Shipping 15.40 €

Warranty 24 months

Returns 14 days

request details

Adam Hall 4 STAR H TCON 5D 1000 Add to cart: 136⁷⁴ €

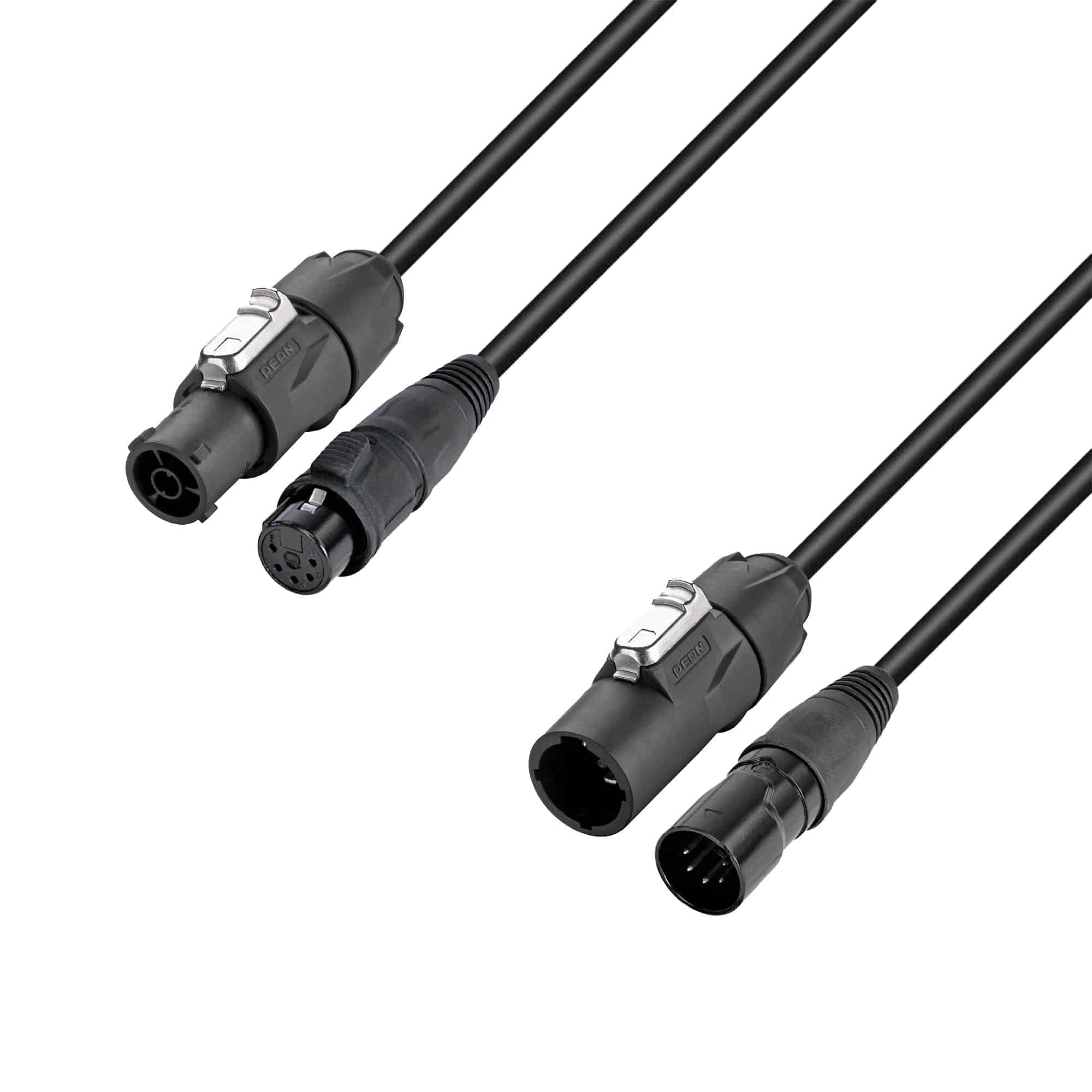

The 4 STAR H TCON 5D combines power supply and DMX control in a single cable – ideal for applications where space and efficiency count.

Equipped with original Rean® 5-pin XLR connectors for signal transmission and robust Rean® X Series power connectors (compatible with Neutrik® TRUE1), the cable is pluggable under load, standard-compliant and IP65-certified – suitable for both indoor and outdoor use. The separate conductor cross-sections ensure stable and interference-free transmission: 2 × 0.22 mm² for DMX and 3 × 1.5 mm² for power.

Developed by Adam Hall Cables® Crew in Germany.

Specifications:

Cable length: 10 m

Split end length: 40 cm

Cable jacket: PVC (Polyvinyl chloride)

Cable diameter: 9 mm

Cable colour: Black

Connector type plug 1: XLR 5-pole female

Model name plug 1: Rean RC5F-BAG

Contact material plug 1: Silver plated

Connector type plug 2: XLR 5-pole male

Model name plug 2: Rean RC5M-BAG

Contact material plug 2: Silver plated

Conductor material: OFC (Oxygen-free copper)

Conductor cross-section: 3 x 1,5 mm²

AWG: 16

Wave impedance: 110 Ω

Shielding: Spiral copper shielding

Plug type connector 1: Mains plug device outdoor female & TRUE1®

Model name connector 1: Rean RCAC3F-X-000

Plug type connector 2: Mains plug device outdoor male & TRUE1®

Model name connector 2: Rean RCAC3M-X-000

Product code: K4HTCON5D1000

Unit of sale: piece

Specifications:

Length (meters):	10 m
Connector 1:	XLR female
Connector 2:	XLR male
