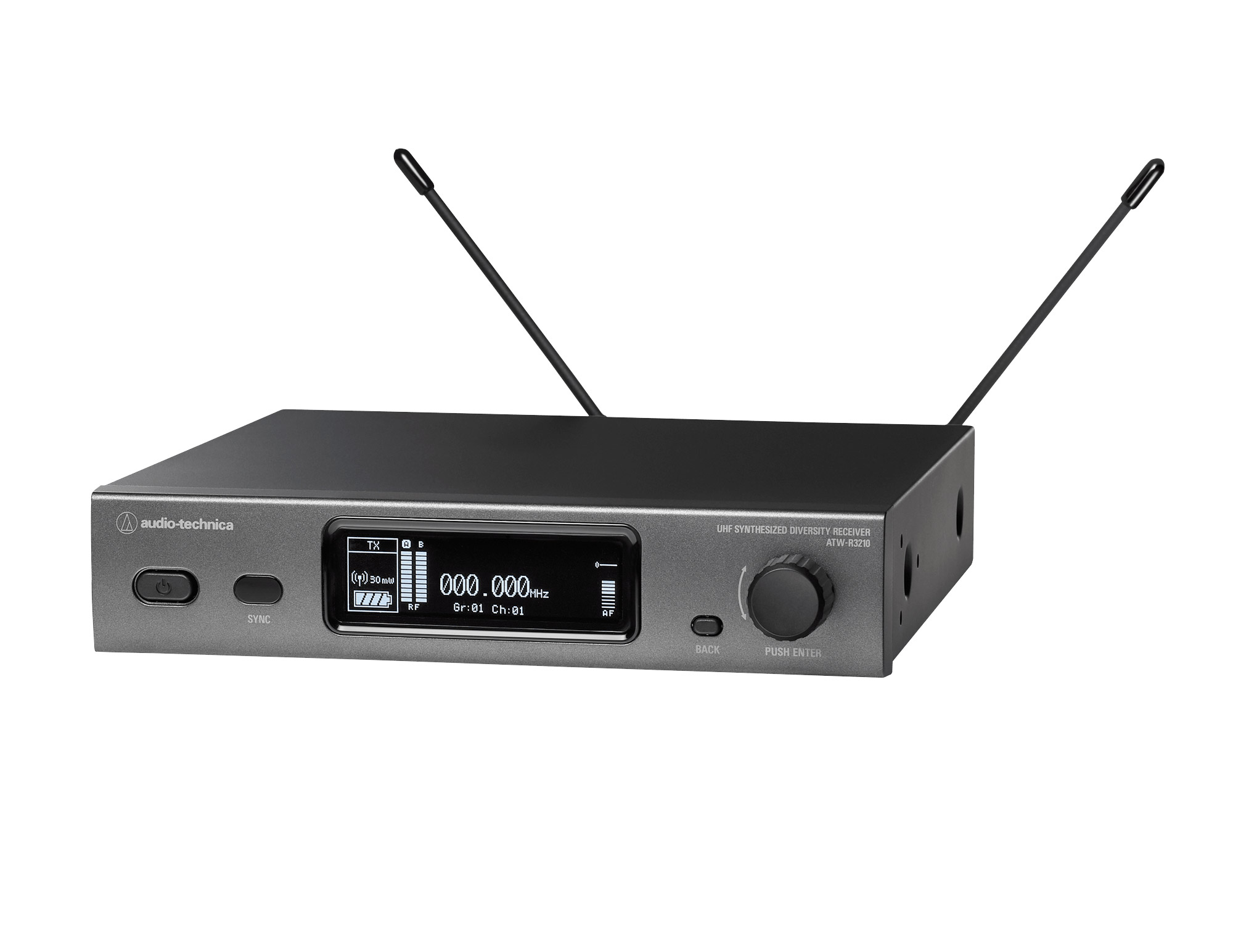

Audio-Technica ATW-R3210

ATW-R3210, wireless receiver, series 3000 generation 4, True Diversity system with Auto Squelch and a bandwidth of 60 MHz.

• automatic frequency scanning
• IR synchronization with transmitters
• backup frequency functionality: in case of interference, by pressing the Func button on the transmitters, both the receiver and the transmitter will switch to this backup frequency
• 60 MHz bandwidth in 25 kHz steps, up to 2400 frequencies per band
• depending on location, up to 40 parallel systems can operate simultaneously
• outputs: balanced XLR, unbalanced 1/4" jack
• antenna power supply: 12 V DC, 160 mA (combined)
• RF sensitivity: 20 dBuV at 60 dBA S/N ratio
• antenna outputs: BNC 50 Ohm
• available on the following UHF frequencies:
  • DE2: 470.125 - 529.975 MHz (2395 frequencies)
  • EE1: 530.000 - 589.975 MHz (2400 frequencies)
  • EF1: 590.000 - 649.975 MHz (2400 frequencies)
  • FG1: 650.000 - 699.875 MHz (1996 frequencies)
• the package includes:
  • the receiver
  • 2 x flexible antennas
  • power supply
  • rackmount adapters
