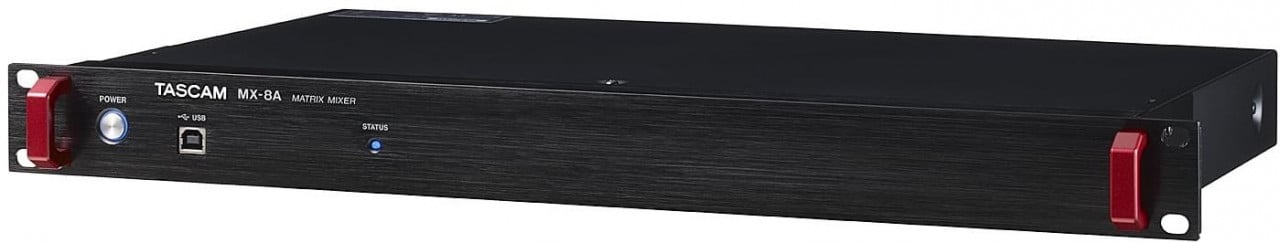

Tascam MX-8A

Matrix Mixer

8 inputs and 8 outputs with integrated DSP for versatile audio management.
remote control for source selection, volume adjustment, and mute functions.
supports 44.1k / 48k Hz formats with 16bit / 24bit resolution.
multiple connection options including USB, RS-232C, RS-485, and Ethernet.
compact design with dimensions of 483 × 45 × 304.1 mm and a weight of 3.0kg.

1 044⁰⁹ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

5211 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Tascam MX-8A Add to cart: 1 044⁰⁹ €

MX-8A is a matrix mixer with 8 inputs and 8 outputs featuring integrated DSP. Source selection, volume adjustment, and mute functions can be modified remotely via an external controller.

Technical specifications:

Format: 44.1k / 48k Hz, 16bit / 24bit
USB: 4-pin USB B-type connection, USB2.0 High Speed transfer rate (480Mbps)
Analog input: Euroblock (Balanced) 3.81mm pitch, Minimum input level -70dBu, MIC +26dBu, LINE +24dBu, Input impedance 2.2kΩ
Analog output: Euroblock (Balanced) 3.81mm pitch, Nominal output level +4dBu / +6dBu, Maximum output level +15dBu up to +24dBu, Output impedance 200Ω
RS-232C: D-sub 9-pin connection (female, inch-standard)
RS-485: RJ-45 connection, 5e or STP cables
Ethernet: RJ-45 connection, TCP/IP protocol, 100BASE-TX standard, 5e or STP cables
Power supply: AC100-240 V, 50/60 Hz, Power consumption 21W
Dimensions: 483 × 45 × 304.1 mm, Weight 3.0kg
Operating temperature range: 0–40°C
