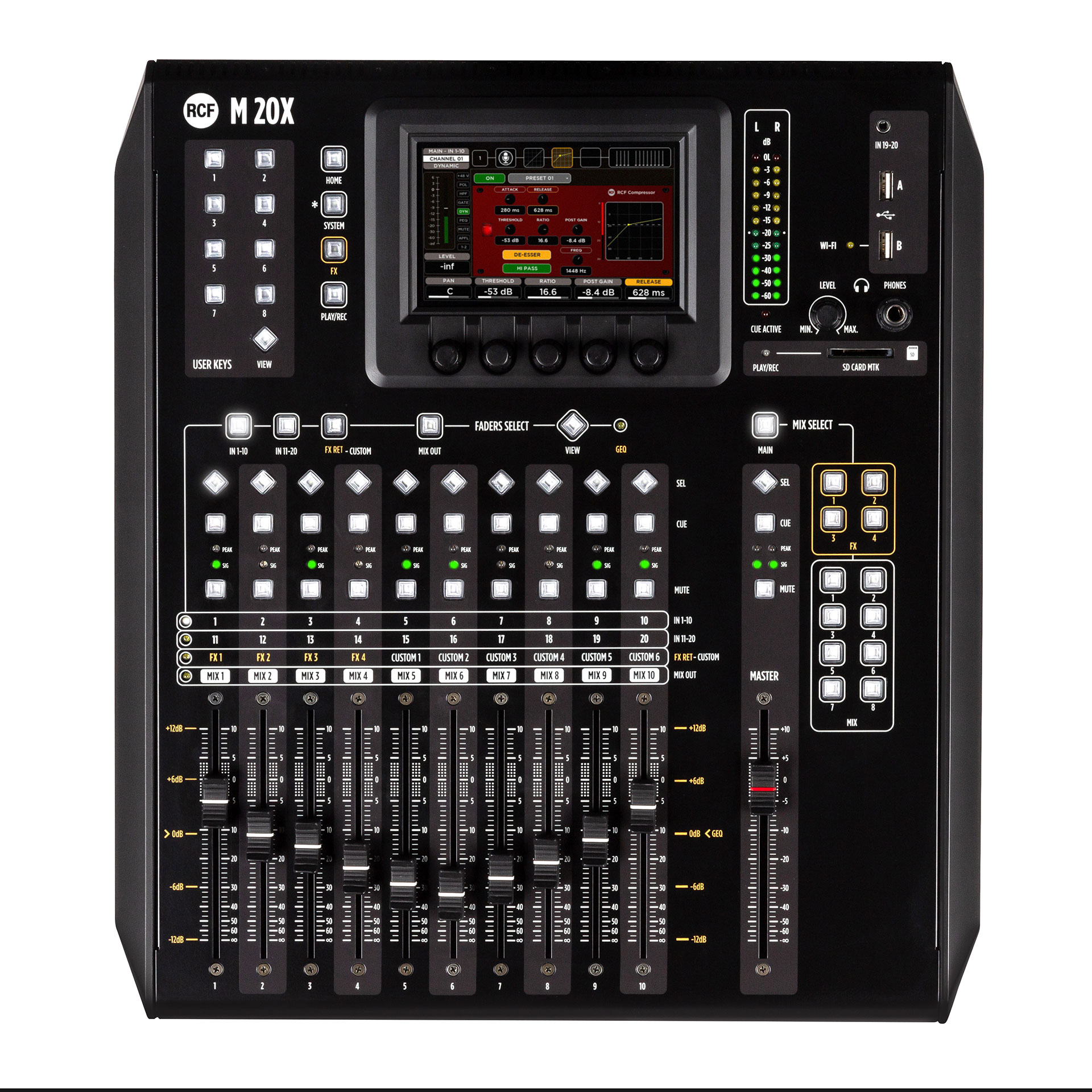

RCF M 20X

RCF M 20X, digital mixer with 16 remotely controllable preamplifiers and 11 motorised faders. Despite its size, the M 20X has a comprehensive suite of capabilities, such as high-profile preamplifiers, top-tier DSP with studio-quality processing, WiFi remote control, and an extensive set of multitrack recording and playback functions. The mixer offers a total of 20 analog inputs and 14 output channels, including balanced analog outputs and a digital AES/EBU output.

• 20 channels
• 16 microphone preamplifiers
• 4 line inputs
• Frequency response: 20 - 20,000 Hz
• 20 Track recording / playback on SD card
• Stereo USB player and recorder
• Audio interface 24 x 24 USB channels (24 bit / 48 kHz)
• 11x 100 mm motorised faders
• 5" capacitive touchscreen
• 4 internal effects buses
• 8 x Microphone inputs
• 8 x combo XLR / Jack inputs for line / microphone
• 2 x 6.3 mm jack inputs
• 2x main outputs with XLR connectors
• 8x mix outputs with XLR connectors
• 1x stereo 6.3 mm jack output
• 1x digital XLR AES output
• 2x mix outputs with 6.3 mm jack connectors
• 2x USB ports
• 1x network output with RJ45 connector
• Dimensions: 388 x 131 x 428 mm
• Weight: 7.9 kg
