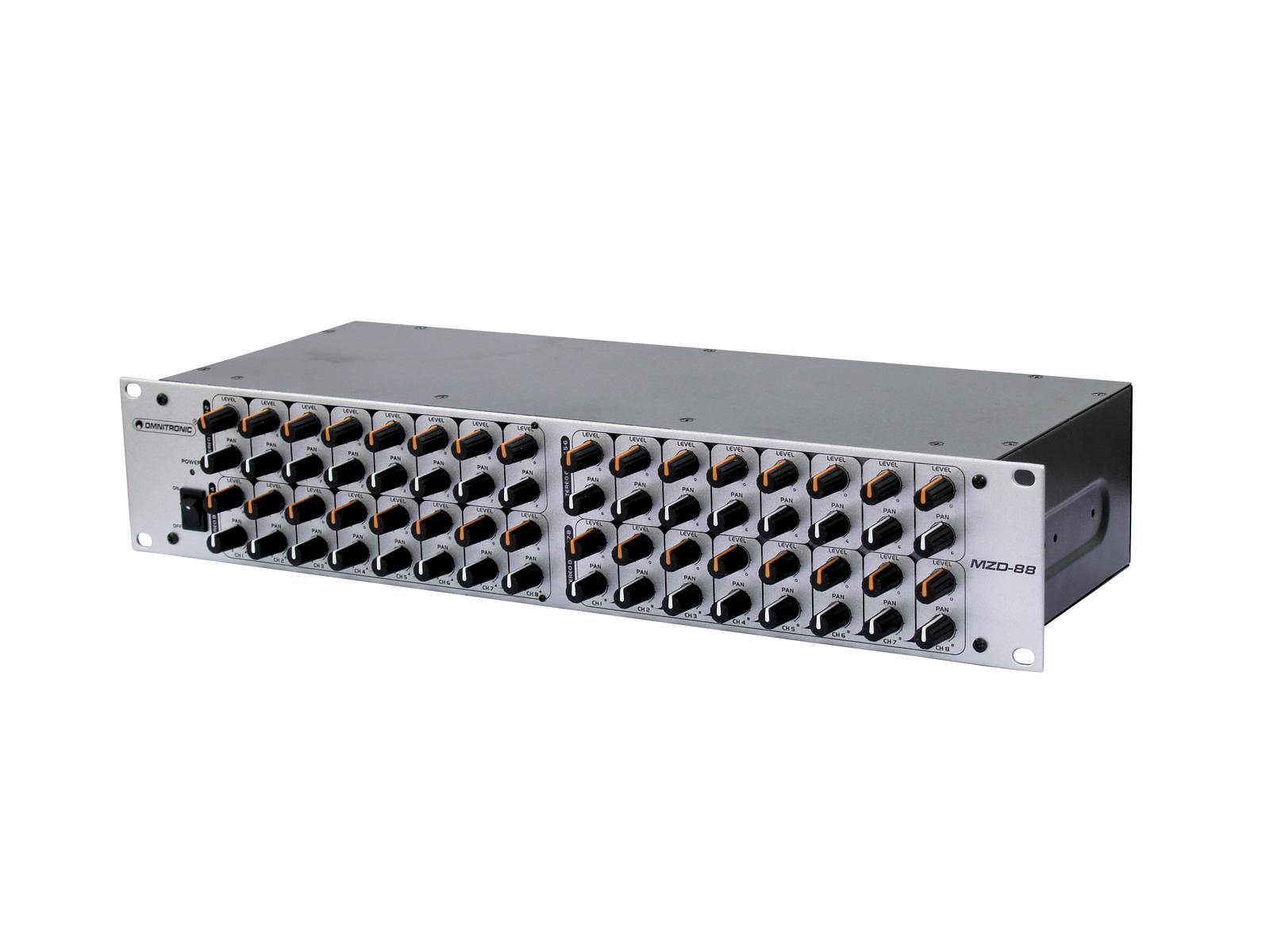

Omnitronic MZD-88

Omnitronic MZD-88 - matrix zone distributor, offering the possibility to assign the 8 audio inputs to the 8 outputs, dividing the 8 outputs into 4 groups that can have volume and pan control for each channel. It provides ultra-sensitive configuration modes, distributing the signal to up to 8 audio sources (8 mono zones or 4 stereo zones, each with a different output signal). The inputs and outputs feature XLR connectors, frequency range of 20-20000 Hz, 2 units of rack space occupied.

Technical specifications:

• Power supply: 115/230 V, 50/60 Hz ~
• Power consumption: 10 W
• Frequency range: 20-20000 Hz
• Dynamic range: 100 dB
• Maximum input level: +21 dBU
• Input impedance: 10 kohms
• Maximum gain: +12 dB, per channel
• Dimensions (WxDxH): 482 x 195 x 89 mm
• Weight: 3.5 kg
