SoundCreation 55925025 5.0 x 25.0 mm


Fittings / Rivets

  • rivet diameter: 5 mm
  • rivet length: 25 mm
  • load capacity (deformation): 2150 N
  • tensile load: 3100 N
  • rivet material: Aluminium
076
In stock and deliverable.
Central warehouse: 10+
Add to cart
also deliverable via  Deliverable via parcel locker
4 points of loyalty
Shipping 13.00 €
Warranty 24 months
Returns 14 days

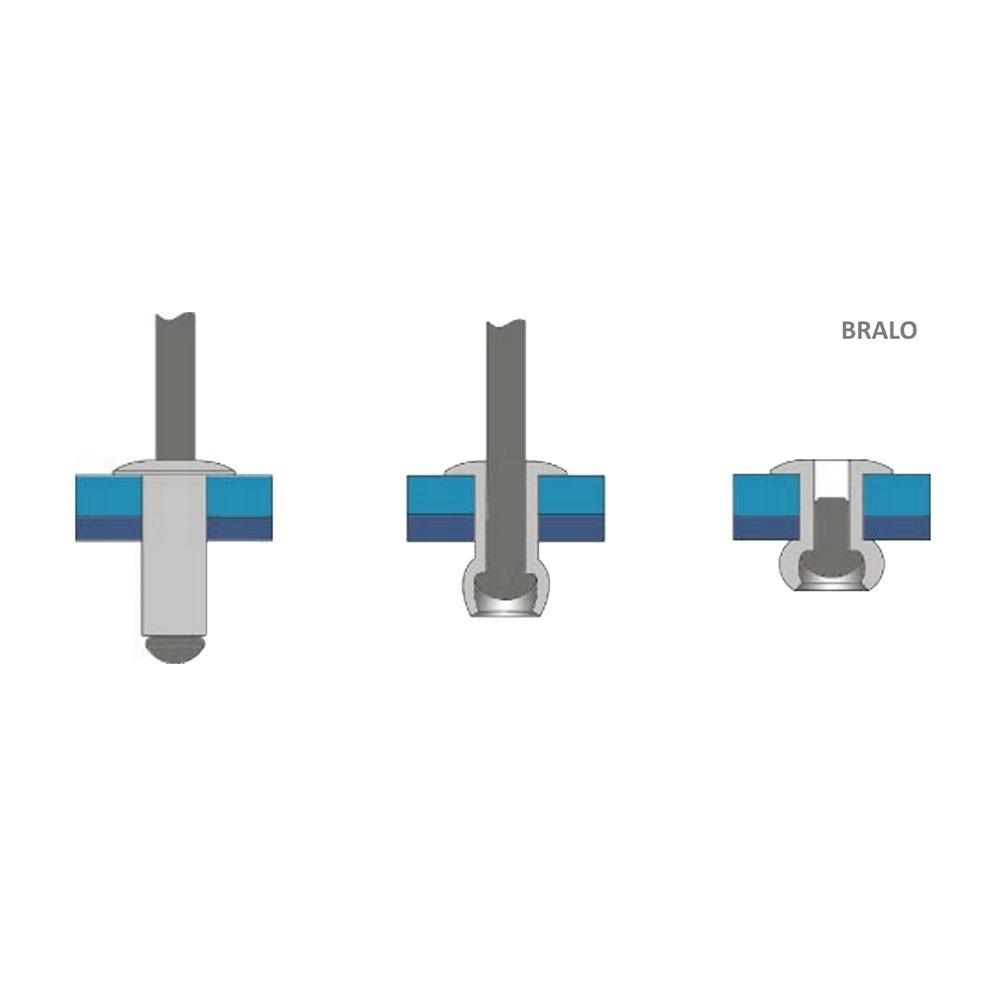

Soundcreation 55925025 5.0 x 25.0 mm - This is a fastening system for connecting two parts made of identical or different materials, of which only one needs to be accessible. The rivets provide a robust and secure solution for a wide range of fastening system requirements. They are designed to meet the highest quality standards and to withstand the most demanding environmental conditions.

  • Rivet diameter: 5 mm
  • Rivet length: 25 mm
  • Head diameter: 9.5 mm
  • Head height: 1.6 mm
  • Mandrel diameter: 2.5 mm
  • Grip range: 16 - 21 mm
  • Load capacity (deformation): 2150 N
  • Tensile load: 3100 N
  • Rivet material: Aluminium
  • Rivet alloy: AIMg 3.5
  • Mandrel material: Steel

Product code: 55925025

Unit of sale: set
