Tascam MM-4D/IN-E

Dante Converter

compact 4-channel Dante converter with DSP.
supports sample rates of 44.1/48/88.2/96kHz, 16/24-bit.
RJ-45 connection with Dante transmission protocol.
power over Ethernet (PoE) class 0, 7.5W power consumption.
frequency response of +/-0.5 dB from 20 Hz to 40 kHz.

Variants:

821⁷² €

On order – delivery date confirmed after ordering Request details

Add to cart

also deliverable via

4348 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Tascam MM-4D/IN-E Add to cart: 821⁷² €

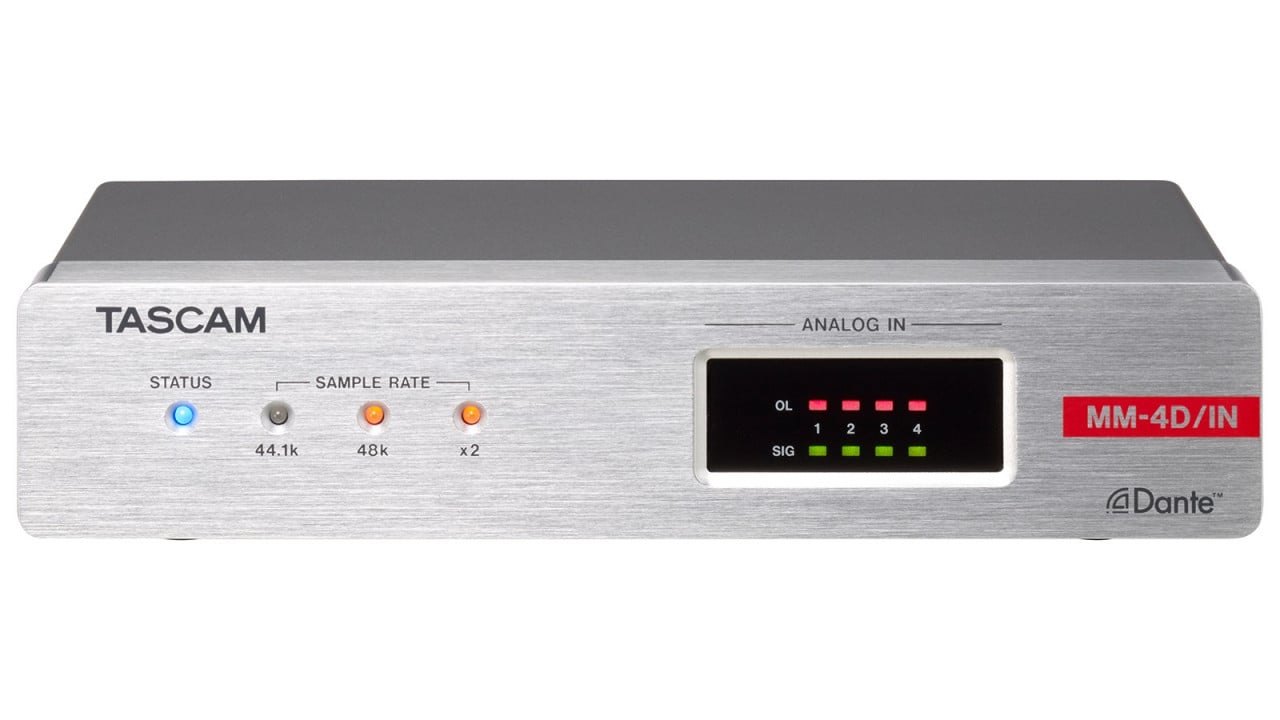

MM-4D/IN-E is a compact 4-channel converter with DSP featuring Euroblock connectors 1/2 19", 1U. It converts microphone/line input signals into Dante signals.

Technical specifications:

Formats: 44.1/48/88.2/96kHz, 16/24-bit
Number of channels: 4

DATA/DATA+PoE Connections

Connection: RJ-45
Transmission protocol: Dante
Standard Gigabit Ethernet: 1000BASE-T (IEEE 802.3ab)
Cables: 5e or STP

Power supply: PoE class 0
Power consumption: 7.5W
Dimensions: 214 x 44.45 x 136.1 mm
Weight: 885 g
Operating temperature range: 0°C-40°C

MIC IN → DANTE OUT
Mic amp EIN: -125 dBu (150Ω, 22kHz LPF+A, JEITA)
Frequency response:

+/-0.5 dB: 20 Hz - 20 kHz (44.1/48kHz, JEITA)
+/-0.5 dB: 20 Hz - 40 kHz (88.2/96kHz, JEITA)

Distortion (THD+N): 0.003 % (-1 dBFS input, 44.1/48/88.2/96kHz, JEITA)
S/N ratio: 108 dB (44.1/48/88.2/96kHz, JEITA)
Crosstalk: 100 dB (44.1/48/88.2/96kHz, JEITA)
Dynamic range: 108 dB (44.1/48/88.2/96kHz, JEITA)

Product code: ZD-045258

Unit of sale: piece
