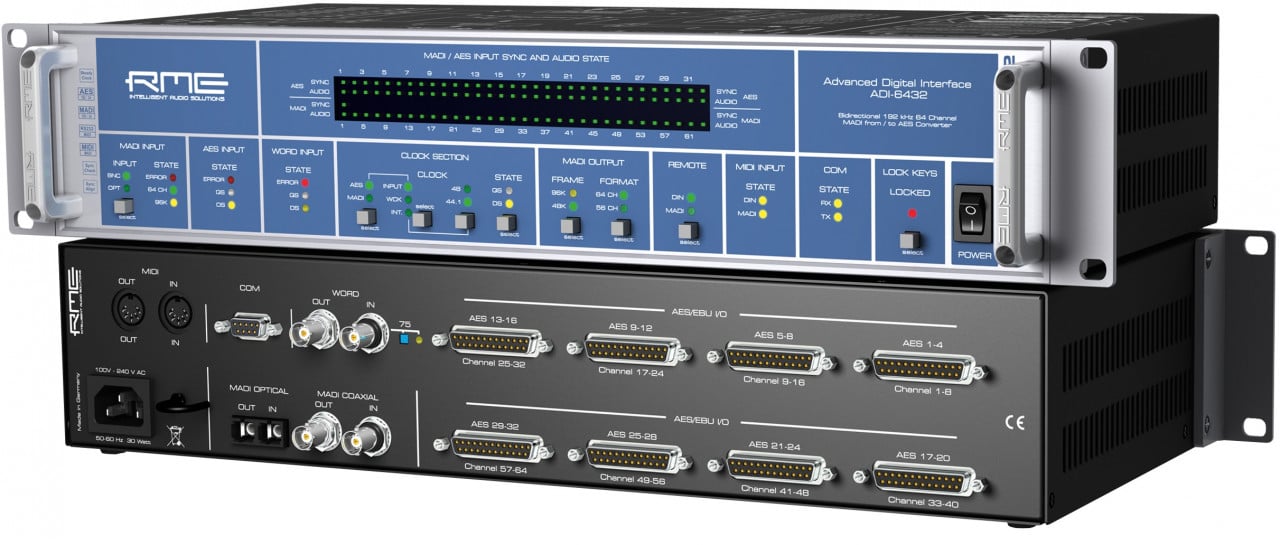

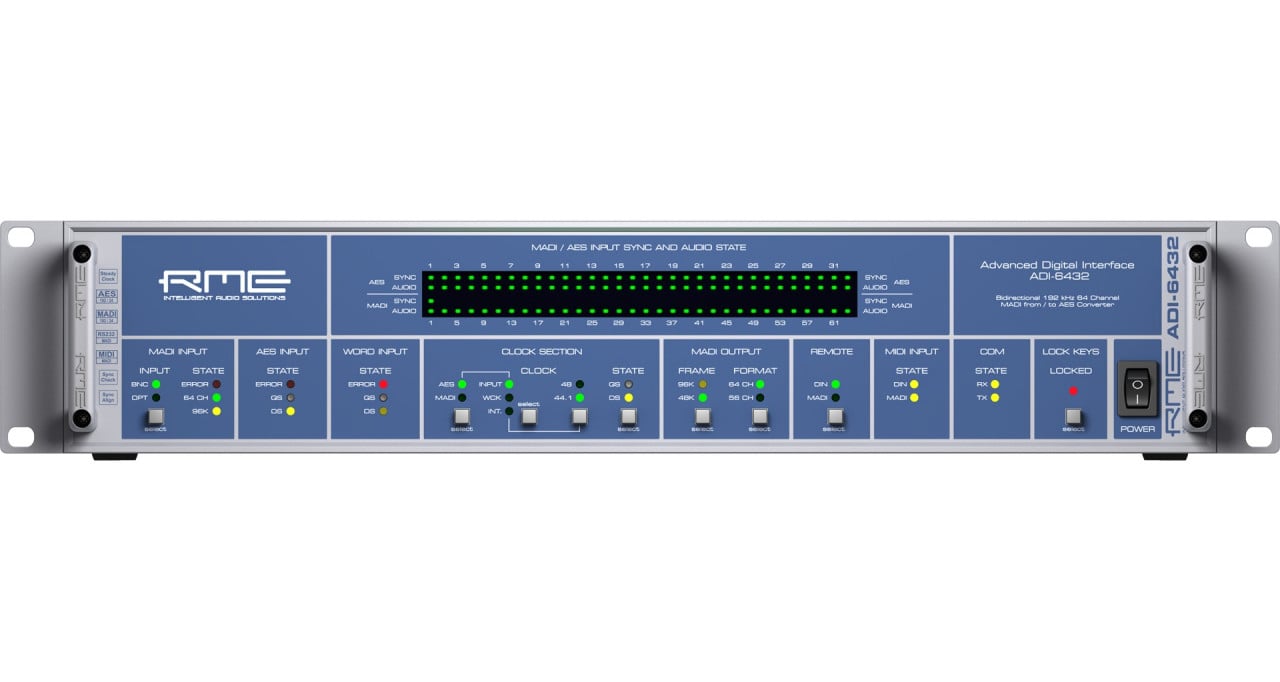

Bidirectional digital converter MADI/AES. ADI-6432 transforms all 64 channels from a single MADI into 32 AES/EBU ports and vice versa. At 64 channels, we have a sample rate of 48 kHz, at 32 channels 96 kHz, and at 16 channels 192 kHz. When connected to the HDSP (e) MADI interface, the ADI-6432 becomes a powerful AES/EBU interface with 32 external ports. Two units will create a perfect multicore digital solution without the need for a computer.
Typical applications for the ADI-6432 include 2 units used as a multicore, or a single unit used for the Hammerfall DSP MADI PCI card. The 2U rack size provides ample space for connectors and control elements.
Specifications

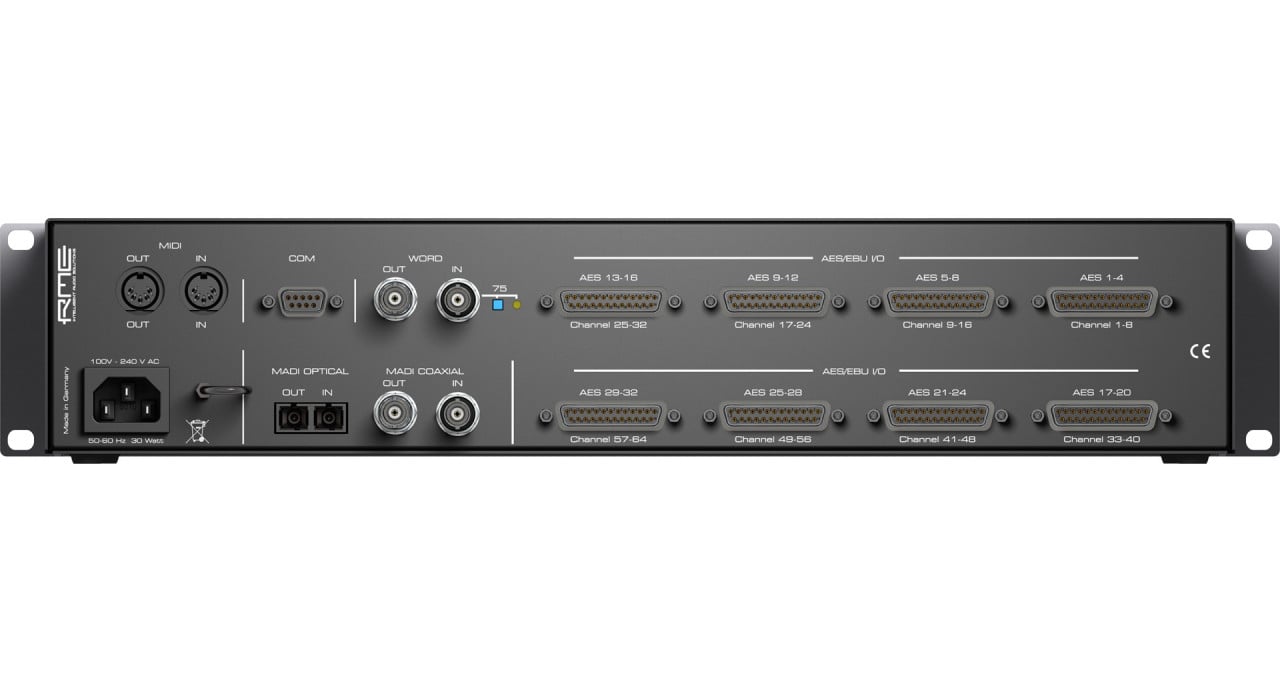

- -MADI Input: 1 x BNC, 1 x optical
- -AES/EBU Input: 32 x, 4 x per D-sub connector
- -Word clock input: BNC
- -Word clock output: BNC
- -MIDI Input and Output
- -Sync sources: MADI, AES, word clock, internal
- -Dimensions: 483 x 88 x 200 mm
