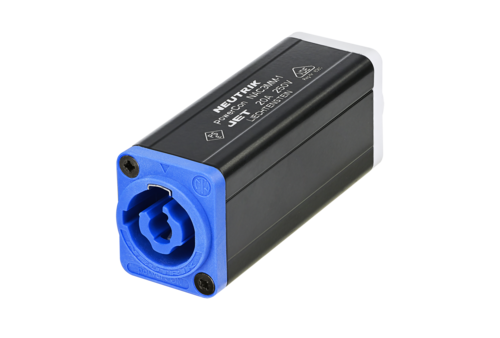

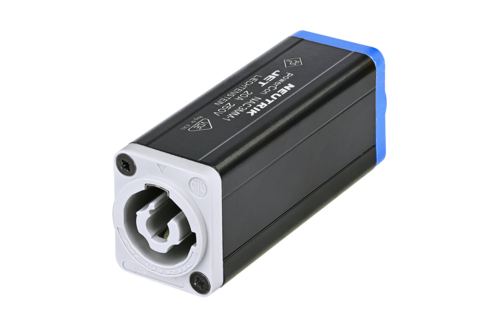

Neutrik NAC3 MM-1

Powercon Connector

powercon connector with locking mechanism for secure connection.
rated current of 16 A rms and voltage of 250 V ac.
dielectric strength of 4 kVdc and insulation resistance > 0.1 GΩ.
life span of over 1000 mating cycles.
temperature range from -30 °C to +80 °C.

21⁸⁰ €

In stock and deliverable.

Central warehouse: 10

Add to cart

also deliverable via

113 points of loyalty

Shipping 13.00 €

Warranty 24 months

Returns 14 days

request details

Neutrik NAC3 MM-1 Add to cart: 21⁸⁰ €

Neutrik NAC3 MM-1 - Powercon connector with locking mechanism featuring 3 conductors for alternating current equipment, with interrupting capacity, utilising contacts for line, neutral, and a ground contact. This replaces plugs for devices whenever a very robust solution is required in combination with a locking device to ensure a secure connection to the electrical network.

Contact resistance: ≤ 3 mΩ
Dielectric strength 4 kVdc
Insulation resistance > 0.1 GΩ (after damp heat test IEC 68-2-30)
Rated current per contact 16 A rms
Rated voltage 250 V ac
Life span > 1000 mating cycles
Quick Lock locking device
Contact plating 2 μm Ag
Locking element Steel Ck67
Housing Polyamide (PA 6.6 30 % GR)
Contacts Bronze (CuNi1Si0.2)
Flammability UL 94 V-0
Protection class IP 20 (mated)
Safety requirements EN/IEC 61984
Soldering according to IEC 68-2-20
Temperature range -30 °C to +80 °C
