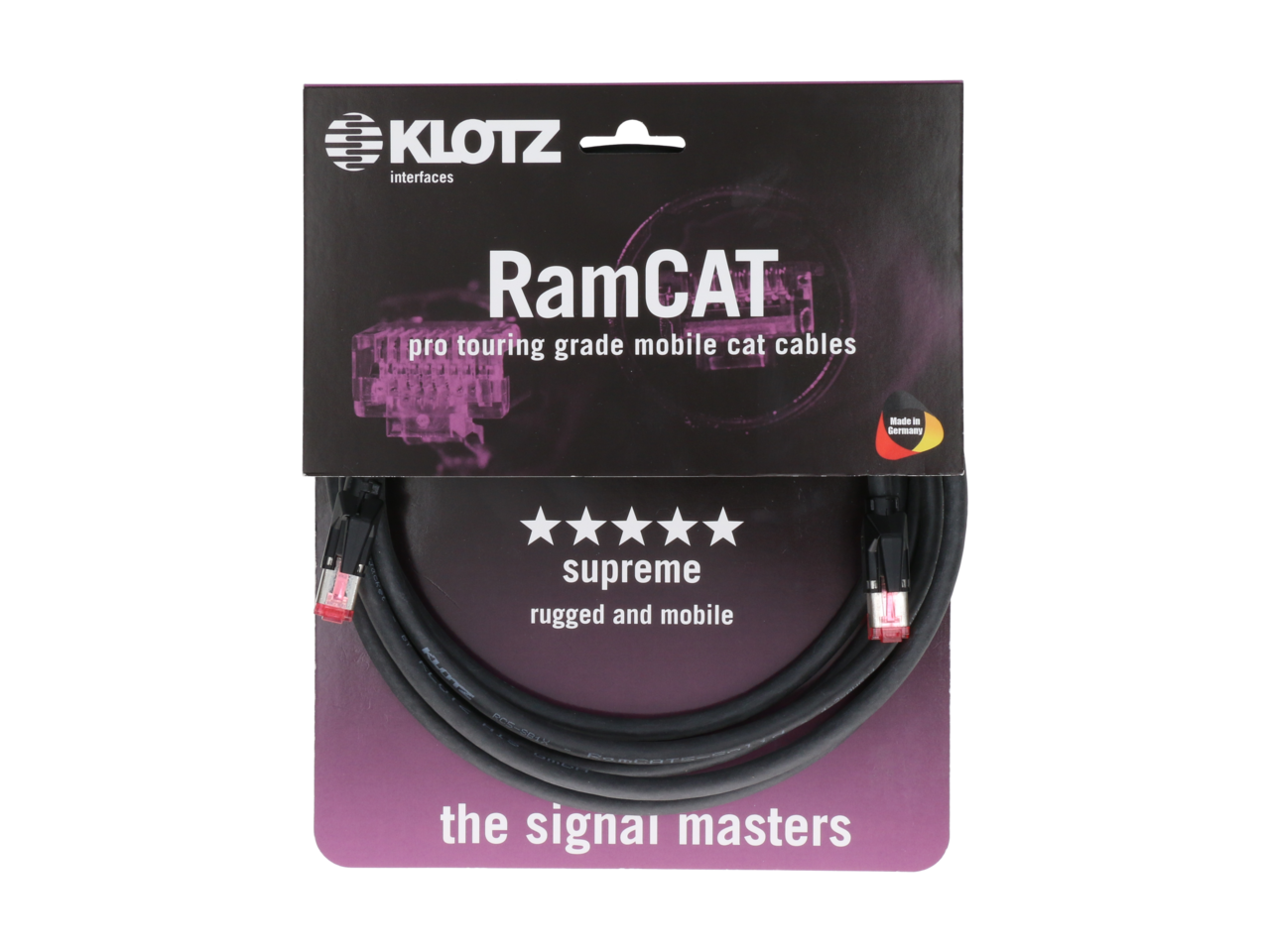

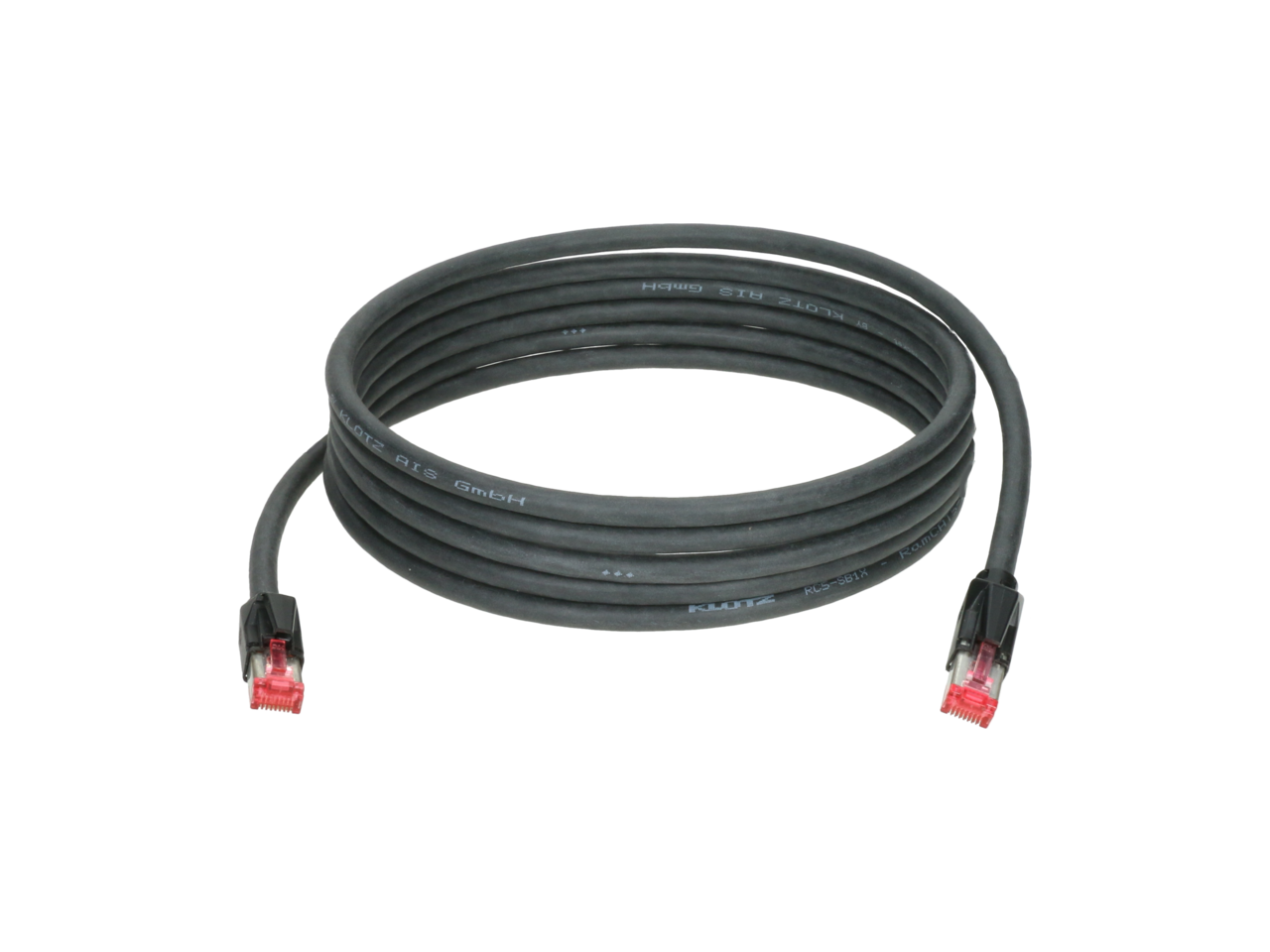

Klotz flexible, double shielded Ram CAT network cable with AWG24 solid conductorCAT5e (SF/UTP) / RJ45 - RJ45 - 3 m

Double shielded data cable

pentru transmisii stabile până la 120 m.
conductor solid AWG24 pentru performanță optimă.
compatibil cu EtherSound™, MADI, Dante™.
conectori RJ45 CAT5e profesionali, ecranati, la ambele capete.

Variants:

45¹¹ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

234 points of loyalty

Shipping 13.00 €

Warranty 12 months

Returns 14 days

request details

Klotz flexible, double shielded Ram CAT network cable with AWG24 solid conductorCAT5e (SF/UTP) / RJ45 - RJ45 - 3 m Add to cart: 45¹¹ €

SF/UTP (overall foil + braid shield)
robust PUR overall jacket
EtherSound™ tested by Digigram up to 120 m
MADI tested by Soundcraft / Studer up to 120 m including two breakout panels and safety margin
GLD and iLive ACE/dSnake tested by Allen&Heath up to 120 m
Dante™ tested by YAMAHA UK up to 120 m, recommended up to 100 m - incl. extended error safety margin at 1 Gbit/s

Double shielded data cable RamCAT with solid conductors, PE-X element and PUR outer jacket. Thanks to AWG24 solid conductors it allows EtherSound™ up to 120 metres. The suitability for mobile use is reached by the special construction with a cross-shaped twisting element and durable PUR outer jacket. The conductor isolation of foam-Skin PE allows the assembly with RJ45 connectors.

cable

cable typ: RC5-SB1X - 4x 2x 0.52 mm (AWG 24/1) solid bare copper, PUR jacket, Ø 7.1 mm

max. data transmission rate: 100 MHz

connectors

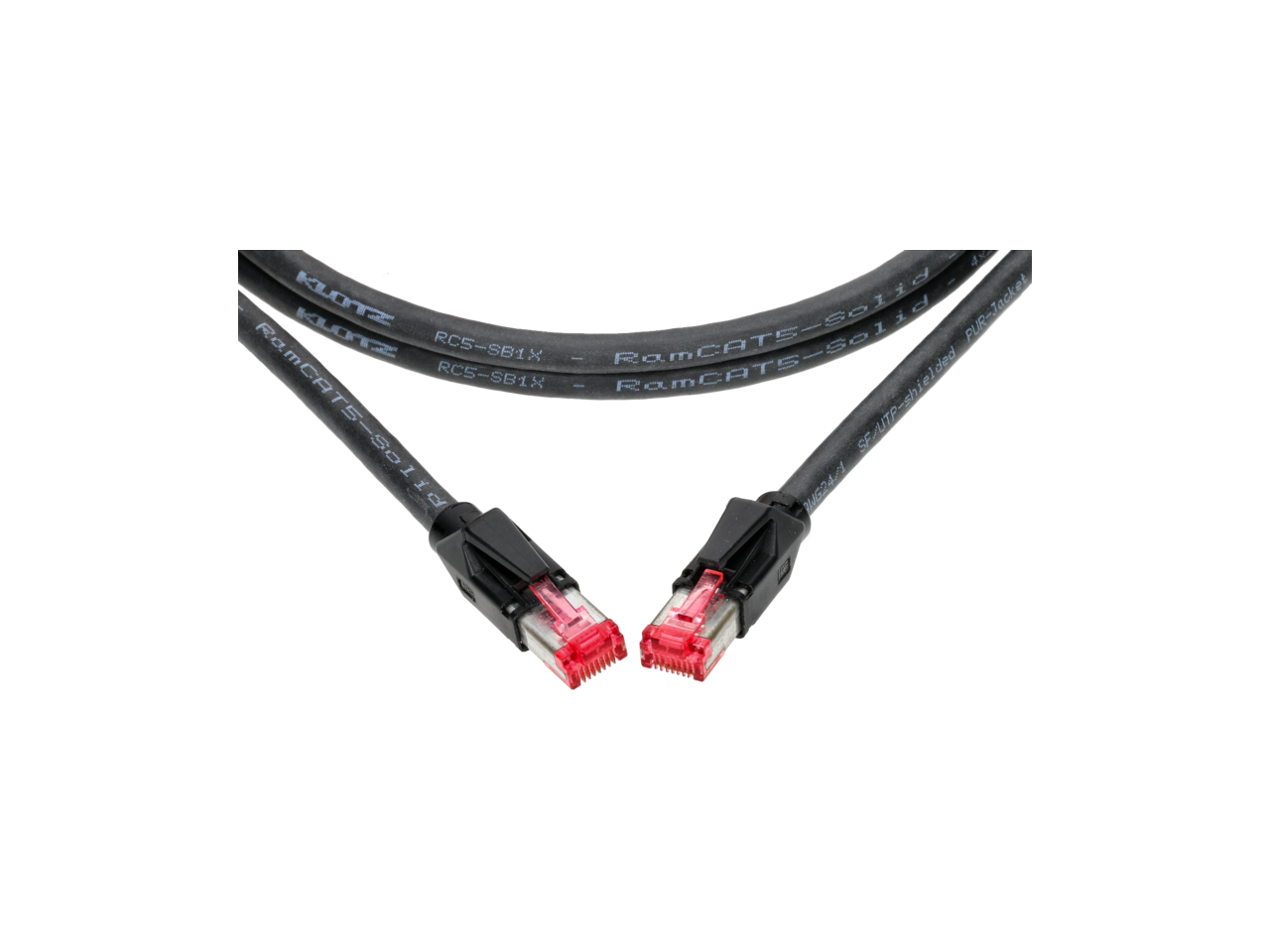

connector 1: professional, screened RJ45 CAT5e cable plug

connector 2: professional, screened RJ45 CAT5e cable plug

Caracteristici

packaging	cable carrier
connectors	RJ45 - RJ45
shell/sleeve	black
cable color	black
cable jacket	PUR
heat shrink	none
length	3 m
