RME DTOX-32

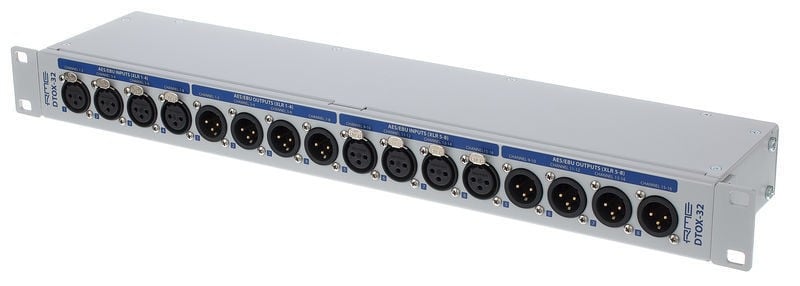

DTOX-32 is an extension for multichannel digital interfaces. It includes two sets of D-sub to 4 x XLR male and 4 x XLR female each, replacing common D-sub to XLR cables with a professional, stable rack-mounted system.

DTOX-32 (also, DTOX-16) has detachable rack mounting brackets and can be mounted at the front or back.

• DTOX-32 is compatible with pinouts for TASCAM (RME) and Yamaha formats.
• RACK MOUNT
• There are two selectable pinout standards for the DTOX-32's 25-pin D-sub connectors:
• TASCAM compatible
• YAMAHA compatible.

If not specifically ordered, DTOX-32 is set to TASCAM (RME) by default.

The respective format is changed by an internal connector inside the panel. To change the format, it is necessary to open the case with a medium-sized Phillips screwdriver (size PH-2).

Technical specifications:

• 8 x XLR output
• 8 x XLR input
• 2 x D-sub 25-pin connectors
• Supports RME (TASCAM) and Yamaha formats (internal switchable pinout)
• 19" Rack
