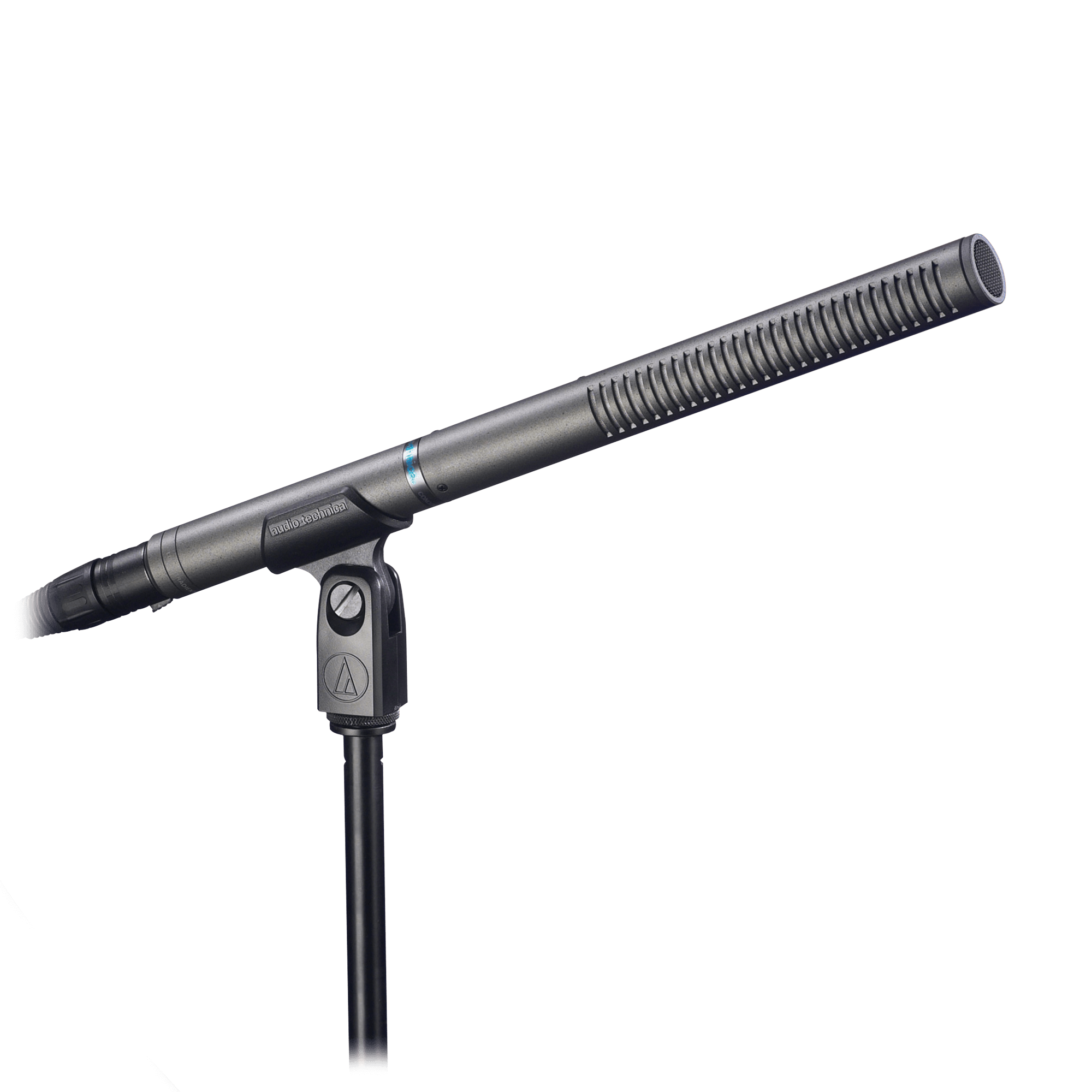

Audio-Technica AT897 is a shotgun microphone designed for capturing sound in film/TV/video production, professional recordings, environmental recording, and broadcast applications. It can be easily mounted on a video camera, providing excellent response even at very long distances due to its "line + gradient" polar pattern design and remarkable rejection of sounds from the sides and rear of the microphone.
condenser type, directional
characteristic: line + gradient
frequency response: 20 Hz - 20 kHz
operates with Phantom power 11-52V DC or 1.5V AA battery
impedance:
with Phantom power: 200 ohms;
with battery power: 300 ohms
low-frequency roll-off: 80 Hz, 18 dB/octave
sensitivity:
with Phantom: -40 dB (10.0 mV) re 1V at 1 Pa
with battery: -41 dB (8.9 mV) re 1V at 1 Pa
maximum sound pressure level (1 kHz at 1% T.H.D.):
with Phantom: 129 dB SPL,
with battery: 115 dB SPL
dynamic range:
with Phantom: 112 dB, 1 kHz at Max SPL
with battery: 98 dB, 1 kHz at Max SPL
signal-to-noise ratio: 77 dB, 1 kHz at 1 Pa
connection: XLRM with 3 pins
weight: 145 g
dimensions:
length: 279 mm
diameter: 21 mm
battery: 1.5V AA/UM3; operating time: 1200 h (0.4 mA)
