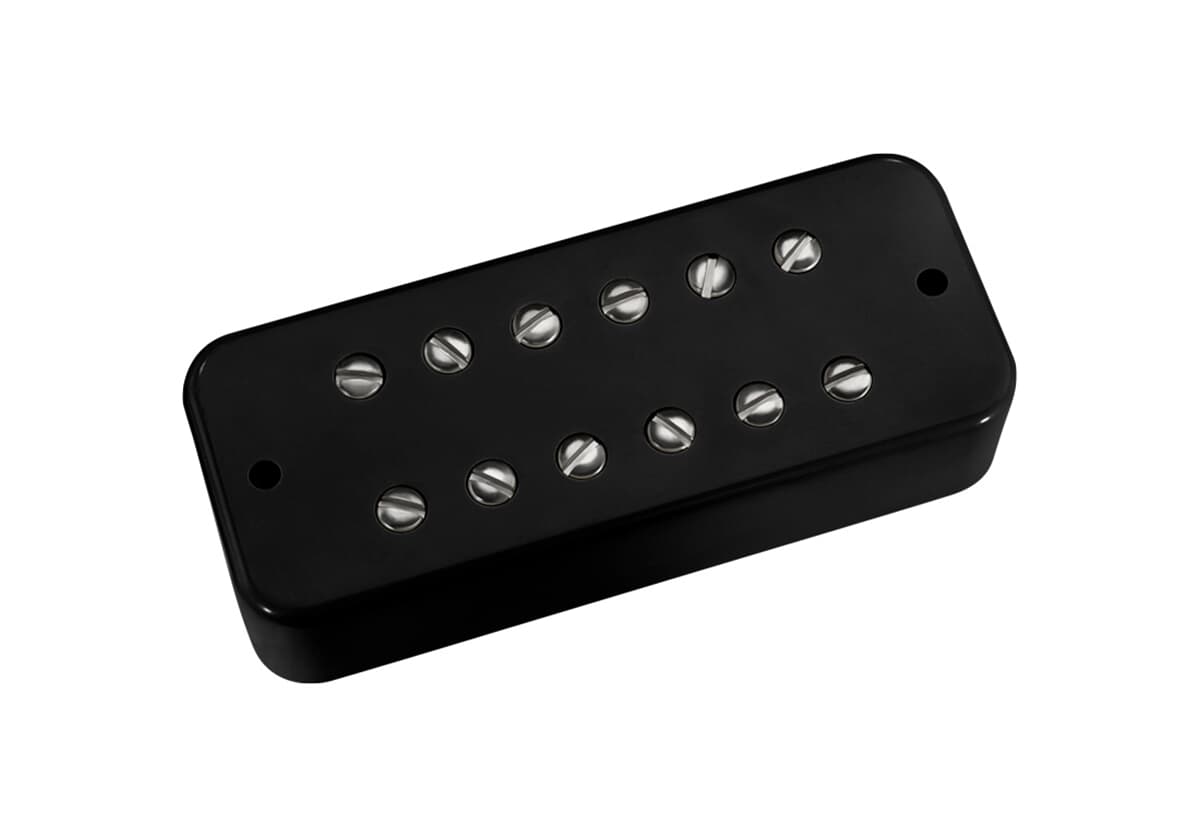

DiMarzio DP 210BK P 90 Tone Zone

Tone Zone® P90 is a high-output humbucking soapbar pickup, with the same sound and power as the Tone Zone® humbucker. Due to their plastic cover, soapbar pickups typically cannot be adjusted as close to the strings as standard humbuckers, and compared to full-size humbuckers, soapbars have a slightly narrower magnetic window to 'see' the strings. We took both factors into account by slightly increasing the output and expanding the magnetic field around the coils to allow the Tone Zone® P90 to sound just as good as the original Tone Zone®. Designed for the bridge position, it comes with 4-conductor wiring that allows for series-parallel humbucking or split-coil modes.

Custom colours available. Specifications:

• Recommended for: Bridge position, solid body guitars with soapbar pickup cavities.
• Quick connect: No
• Wiring: 4 conductors
• Magnet: ceramic
• Resistance: 16.77 kOhm
• Year introduced: 2004
• Output: 385
• Bass: 8.5
• Mid: 8.5
• Treble: 5.0
