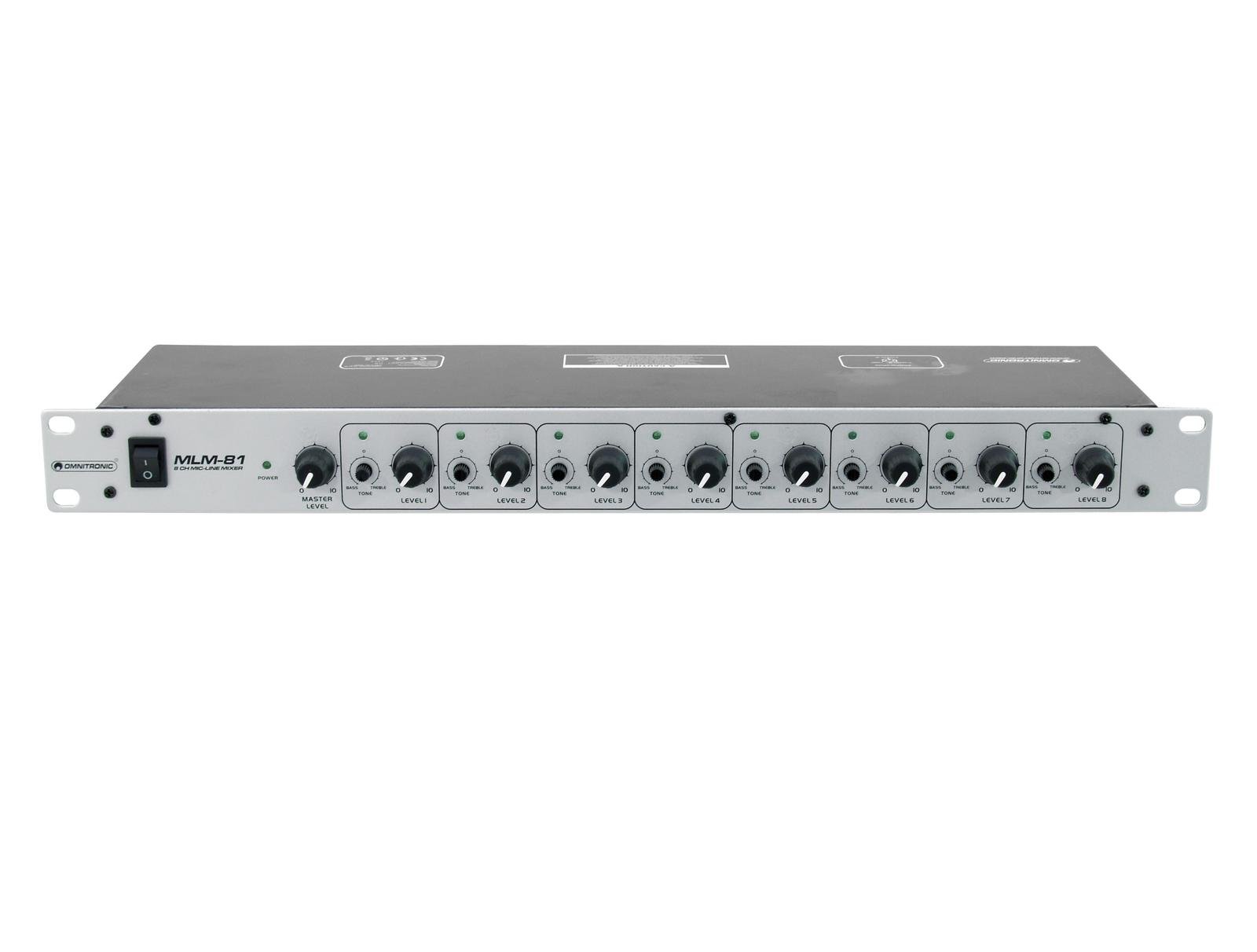

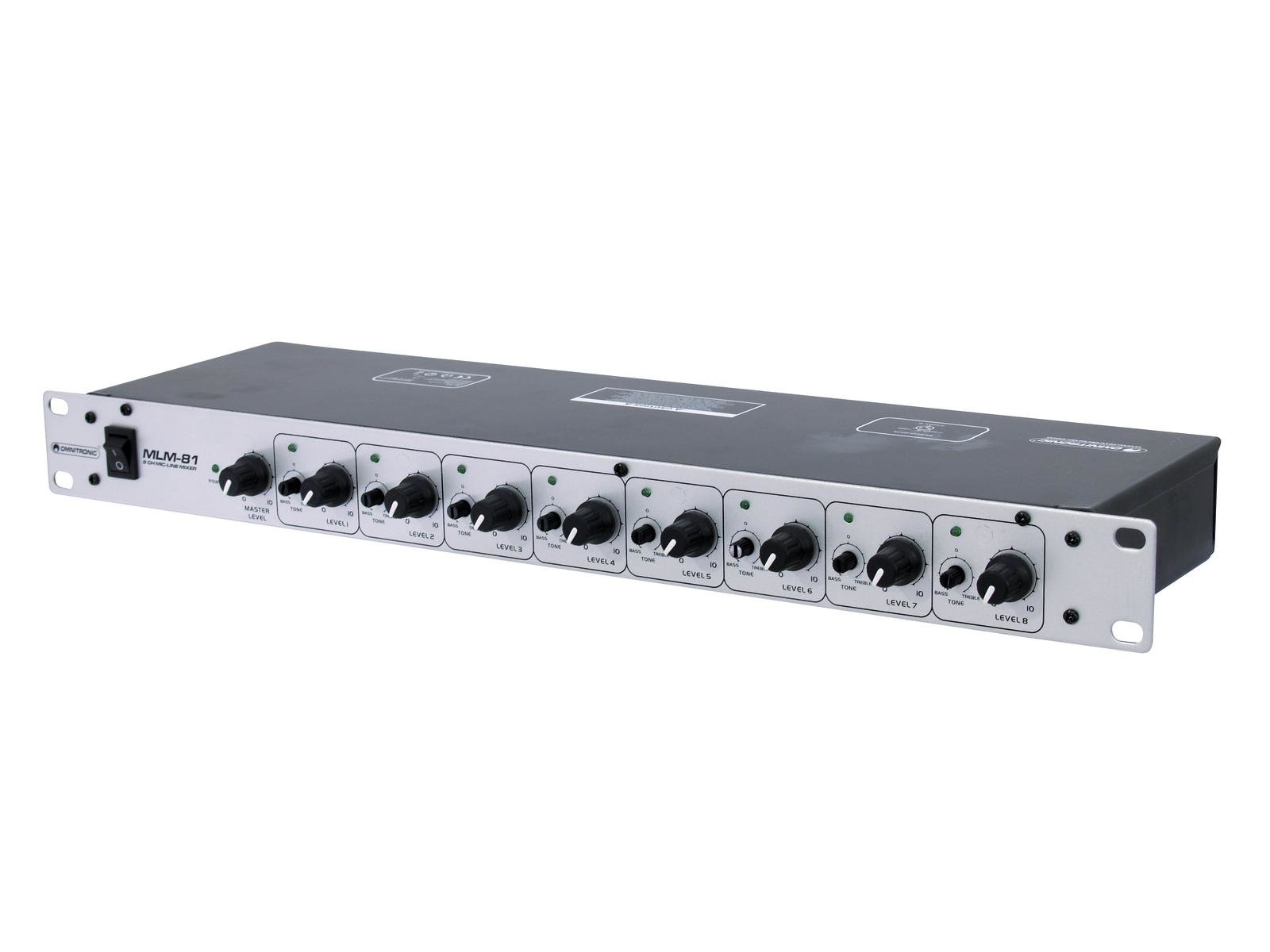

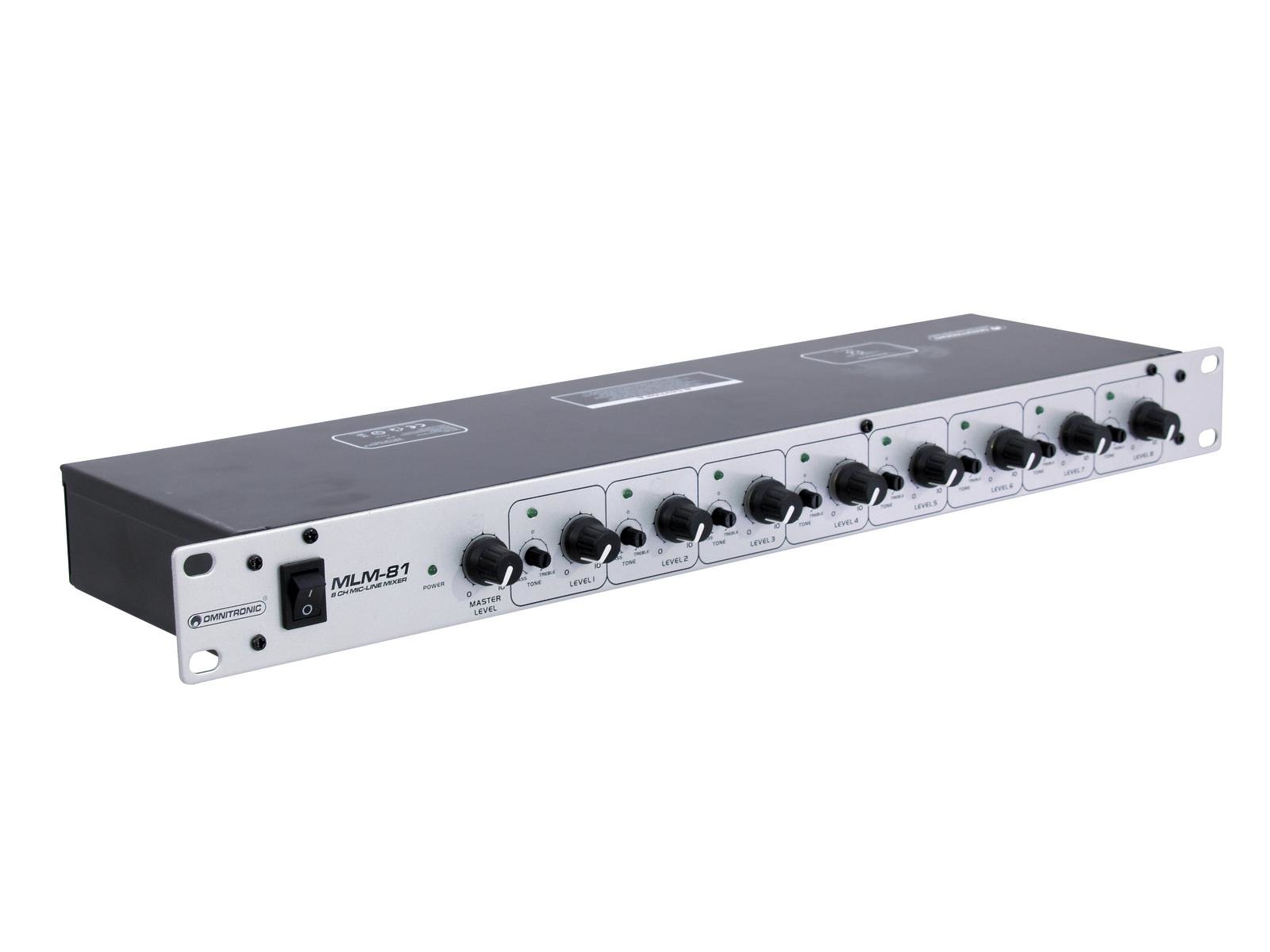

OMNITRONIC MLM-81 mixes up to 8 mono input signals to a single output. Through individual level and tone controls, different sources can be managed and perfectly adapted. The MLM-81 is not only suitable for discussions or symposiums but also for press conferences and - due to its compact design - takes up almost no space.
Microphone line mixer, 8 channels
For mixing up to 8 mono input signals to 1 mono output
8 microphone/line channels with separate controls for level and tone and signal LEDs
Each channel with balanced XLR microphone input and unbalanced 6.3 mm jack input (1/4")
Each microphone input with optional 12 V phantom power
Pass-through output (independent of main control) for connecting another MLM-81
Each 6.3 mm line input can be separately converted to a line output via internal jumpers
(19") 48.3 cm rack mount 1 U
Package contents
1 x device, 1 x power cable, 1 x user manual
Power supply:
230 V AC, 50 Hz
Power consumption:
10.00 W
Protection class:
Protection class I
Power connection:
Mains input via IEC (M) connector, cable mount version with safety plug (supplied)
S/N ratio:
>106 dB
THD:
<0.003 % at 1 kHz
Phantom power:
12 V DC
Impedance:
Input: Microphone 600 Ohm Input: Line 18 kOhm Input: AUX 10 kOhm Output: 51 Ohm
Gain:
Input: Microphone 69 dB Input: Line 26 dB
Case colour:
Silver
Status LED:
Power, signal

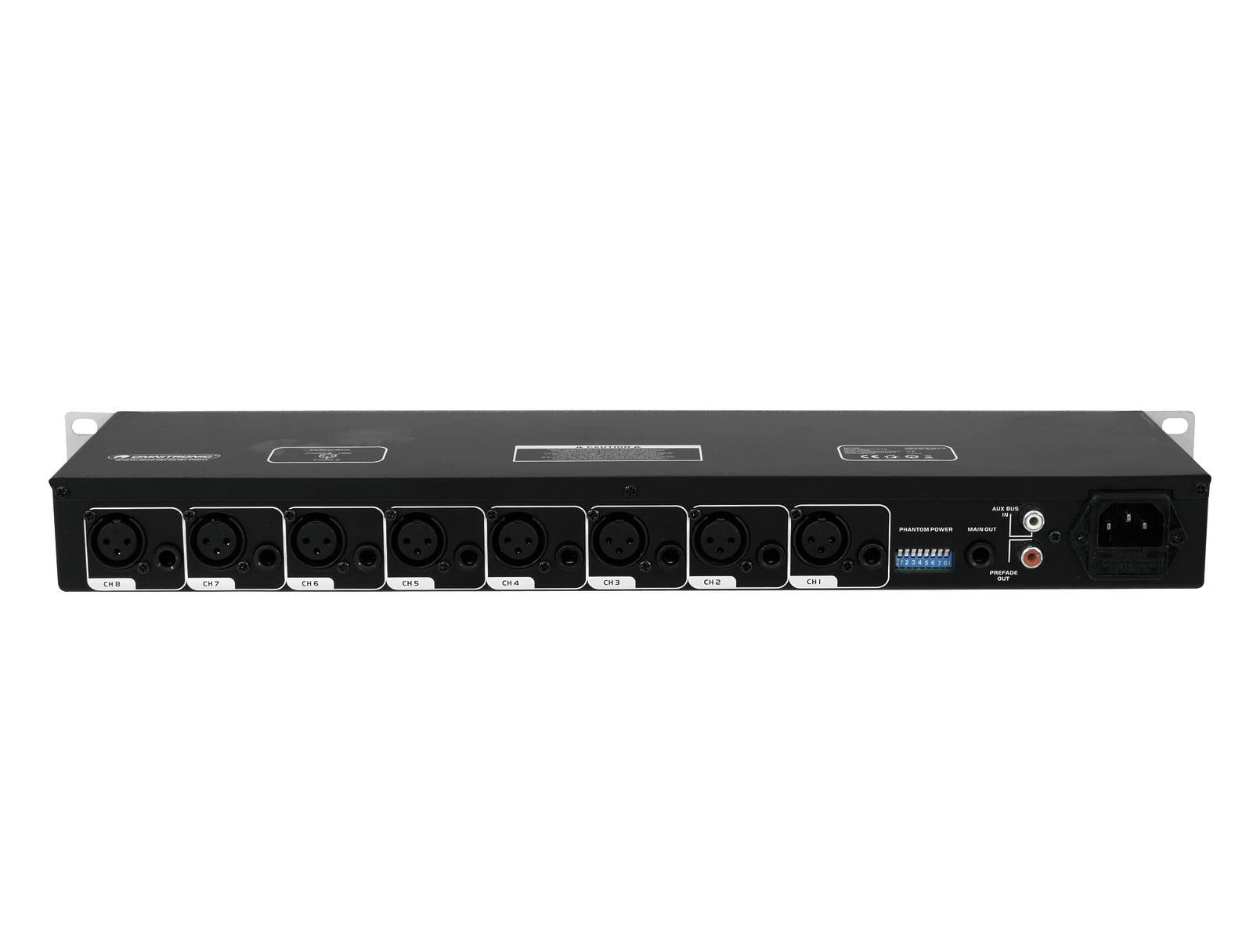

Connections:
Input: Microphone via XLR 8 x 3-pin Input: Line via jack socket 8 x 6.3 mm mount version (mono). Input: AUX via mount version 1 x RCA (F). Output: Line via 1 x jack socket 6.3 mm mount version (mono). Output: AUX via mount version 1 x RCA (F).
Channels:
Input channel: 8 x mono via XLR or jack, channel control via rotary selector, EQ tone control Master output: 1 x mono via socket, channel control via rotary selector
