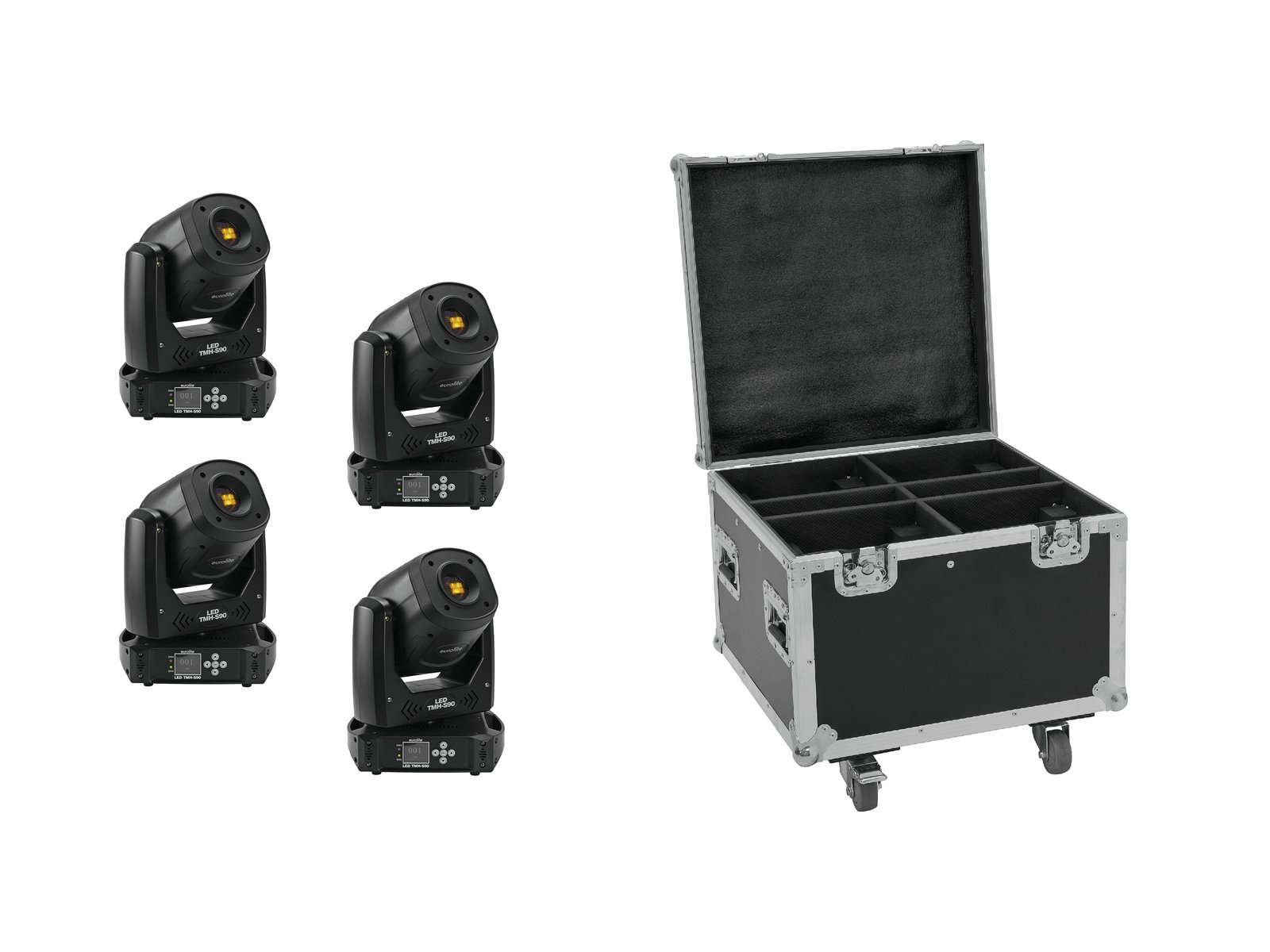

4x LED spot with moving head, including flight case with wheels
- Positioning in PAN and TILT
Moving head spot EUROLITE LED TMH-S90
LED moving head spot with colour wheel, static and rotating gobo wheel, prism and focus
- Rotating prism with 3 facets with variable speed
- 1 powerful 90 W COB (chip-on-board) cool white (CW) LED
- Positioning at 540° PAN and 200° TILT
- Automatic position correction (feedback)
- Exact positioning (16-bit resolution)
- Three times prism; gobo wheel with rotating gobo; gobo wheel with static gobos; motorised focus; colour palette
- Rainbow effect with adjustable speed in both directions
- Gobo wheel with static gobos, 6 gobos, 1 multicolour gobo and open
shaking effect - Gobo wheel with rotating gobos, 6 gobos and open
shaking effect - Interchangeable gobos
- Gobo system with slot for easy gobo replacement
- Integrated show programs
- Can be operated in 15 CH mode
- The device is cooled by a cooling fan
- Control via DMX; Sound to light via microphone; stand-alone; Master/slave function; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX via wireless solution via USB (optional)
- Without flicker
- With a beam angle of 12°
- Electronic dimmer
- Colour wheel with 7 dichroic filters plus open
- Preprogrammed in EASY SHOW 1; Light captain; Easy Show 3
Package contents
- 1 x moving light, 1 x user manual, 1 x power cable, 1 x Omega bracket, 1 x safety eye
ROADINGER Flightcase 4x TMH-S90/H90/B90
Flightcase for 4 x moving head spot EUROLITE LED TMH-S90
- For optimal security
- With 4 compartments for devices
- High-quality workmanship with 7 mm glued multilayer plywood, black, laminated
- Interior with foam lining
covered with foam padding - Frames made of 30mm aluminium profile with rounded edges
- 4 case handles with hinges, chrome-plated
- 2 chrome locks for overturning
- 2 high-quality butterfly locks
- The wheels
| Weight: | 43.80 kg |
| Moving head spot EUROLITE LED TMH-S90 |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 140 W |
| IP rating: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Network input via P-Con (blue), power cable mounting version with safety plug |
| Output power: | P-Con (grey), mounting version |
| Fuse: | 5 x 20 mm, T 2 A |
| Type of lamp: | LED lamp |
| LED: | 1 x 90 W COB (chip-on-board) cool white (CW) |
| Max. TILT movement: | 200° Exact positioning (16-bit resolution) Automatic position correction (feedback) |
| Max. PAN movement: | 540° Exact positioning (16-bit resolution) Automatic position correction (feedback) |
| Strobe rate: | 2 - 30 Hz |
| Equipment: | Three times prism; gobo wheel with rotating gobo; gobo wheel with static gobos; motorised focus; colour palette |
| Colour generation: | Colour wheel with 7 dichroic filters plus open |
| Gobo: | Gobo wheel with static gobos, 6 gobos, 1 multicolour gobo and open
shaking effect
Gobo wheel with rotating gobos, 6 gobos and open
outer diameter 21.8 mm
image diameter 16 mm
shaking effect
interchangeable gobos
gobo system with slot for easy gobo replacement |
| DMX channels: | 15 |
| DMX input: | XLR (M) mounting version with 3 pins |
| DMX output: | XLR (F) mounting version with 3 pins |
| Cooling: | Cooling fan |
| Control: | DMX; Sound to light via microphone; stand-alone; Master/slave function; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX via wireless solution via USB (optional) |
| Preprogrammed in: | EASY SHOW 1; Light captain; Easy Show 3 |
| Beam angle: | 12° |
| Beam angle (1/2 peak): | 12° |
| Illuminance in lux (lx): | Cool white (CW) 1m: 52772 lx, 3m: 6198 lx, 6m: 1543 lx |
| Case colour: | Black |
| Dimensions: | Width: 25.0 cm
Depth: 20.5 cm
Height: 35.0 cm |
| Weight: | 6.20 kg |
| Noise classification: | Class 2 (light noise) |
| Legal specifications |
| special product: | Not designed for lighting a domestic room |
| Intended use: | Show lighting with effect |
| ROADINGER Flightcase 4x TMH-S90/H90/B90 |
| Maximum capacity: | 100 kg |
| Aluminium profile frames: | 30 mm |
| Case handles: | 4 pcs/piece |
| Hinge stops: | 2 pcs/piece |
| Butterfly lock: | 2 pcs/piece |
| Transport aid: | The wheels |
| Material: | 7 mm glued multilayer plywood |
| Colour: | Black, laminated |
| Device compartment: | 26 cm x 20 cm x 37 cm |
| Accessory compartment: | 26 cm x 9 cm x 37 cm |
| Dimensions: | Width: 58 cm
Depth: 57 cm
Height: 54 cm |
| Weight: | 19.00 kg |
